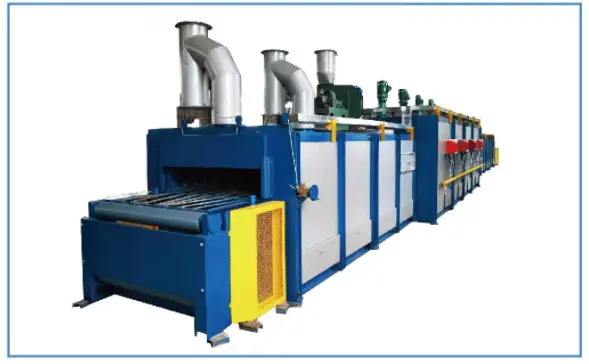

APM PRINT - RkS600 Natural gas/coal gas glass high temperature IR drying tunnel
APM-RkS600/ 800/ 1000/ 1200/ 1500/ 1800/ 2100 Natural gas/coal gas glass high temperature IR drying tunnel, with hot air forced circulation and temperature automatic controling. Fast heating, heating temperature is uniform, automatic oxygen rich decorating, automatic exhausting the smoke.
Description:
1. Mesh belt is external circulation, also can be changed to internal circulation if the output become larger.
2. In the heating zone adopts hot air forced circulation and temperature automatic controling, fast heating, heating temperature is uniform, automatic oxygen rich decorating, automatic exhausting the smoke.
3. Good insulation effect, high thermal efficiency, low energy consumption.
4. Germany proportional regulation technology, temperature controlling more precise, save more energy.
Tech-data
项目 | 型号APM-RKS主要技术参数 Specification | |||||||
单位 | APM-RkS600 | APM-RkS800 | APM-RkS1000 | APM-RkS1200 | APM-RkS1500 | APM-RkS1800 | APM-RkS2100 | |
Mesh belt width | mm | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 |
Mesh belt height | mm | 880-980 | ||||||
Mesh belt speed | mm/min | 10-500 | ||||||
Max temperature | ℃ | 620 | ||||||
Combustion chamber height | mm | 350/400 | ||||||
Temperature difference of section | ℃ | ±2 | ||||||
Mesh belt max load | kg/㎡ | 90 | ||||||
Thickness of inner tank | mm | 3 | ||||||
Power of reducer motor | kw | 1.1-2.2 | ||||||
Power of circulation fan | kw | 1.1-2.2 | ||||||
Power of waste heat recycling fan | kw | 0.75-1.5 | ||||||
Fuel | NG/LPG | |||||||
Origin of burner | ltaly or Germany | |||||||
Burner working pressure | Electromagnetism or proportional control method | |||||||
Gas control method | mpa | 0.01-0.05 or 0.001-0.01 | ||||||
Temperature control method | Automatic independent control | |||||||
Length of furace | mm | 26000-4000 | ||||||
