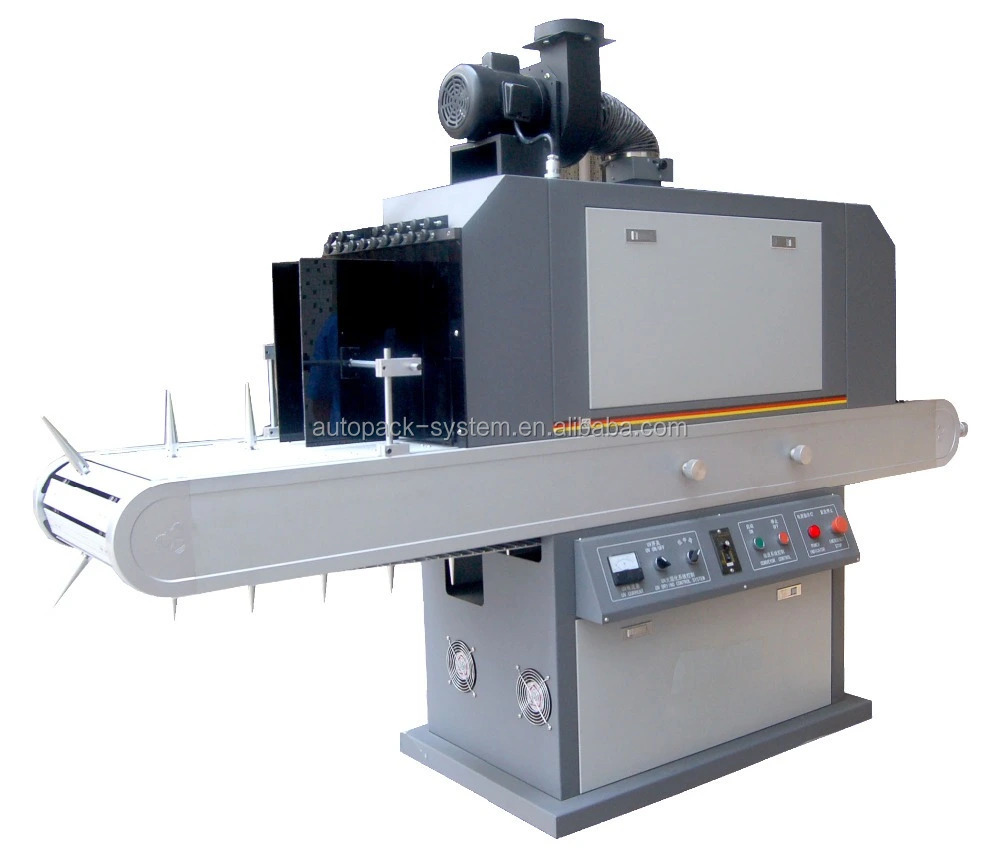

APM PRINT - UV450M UV dryer for flat/round bottles Dryer, UV dryer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. maintains stringent norms of quality to manufacture UV450M UV dryer for flat/round bottles. We manufacture it in a variety of color and styles. It is technologies that keep a company stands out from other competitors.Shenzhen Hejia Automatic Printing Machine Co., Ltd. will focus on improving our currently-used manufacturing technologies and will never stop innovating and developing our own core technologies. We hope that one day we will become a leader in the industry.
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company | Showroom Location: | United States, Spain |
| Condition: | New | Type: | UV dryer |
| Automatic Grade: | Semi-automatic | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Voltage: | 380V |
| Dimension(L*W*H): | 2100x700x1700mm | Weight: | 400kgs |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| After-sales Service Provided: | Engineers available to service machinery overseas | Function: | UV dryer |
| Product name: | Flat/round UV Curing Machine | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | United States, Spain | Certification: | CE Certificate |
| Product Name | Screen Printing UV Curing Machine for Flat/Round/Oval |
| max substrate width | 300mm |
| Max. substrate height | 25-250mm |
| Diameter of the substrate | 10-150 mm |
| Max curing speed(pcs/h) | 1500-3000pcs/h |
| Power supply | 5.8KW |
| Belt width | 450mm |
| Measurement | 2400 x 800 x 1880(L x W x H) |
| Net weight | 300kgs |
1. High quality UV system, UV power can be adjusted easily by ±0.1 on control panel, 1.5~5kw (UV control system is 6KW).
2. Conveyor speed and the distance between the lamp and substrate can be adjusted.
3. Conical holders installed to rotate the products for cylindrical products curing.
4. Well UV light protection, auto unloading system.
5. Excellent curing result, reliable quality, CE standard and easy operation.
