Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

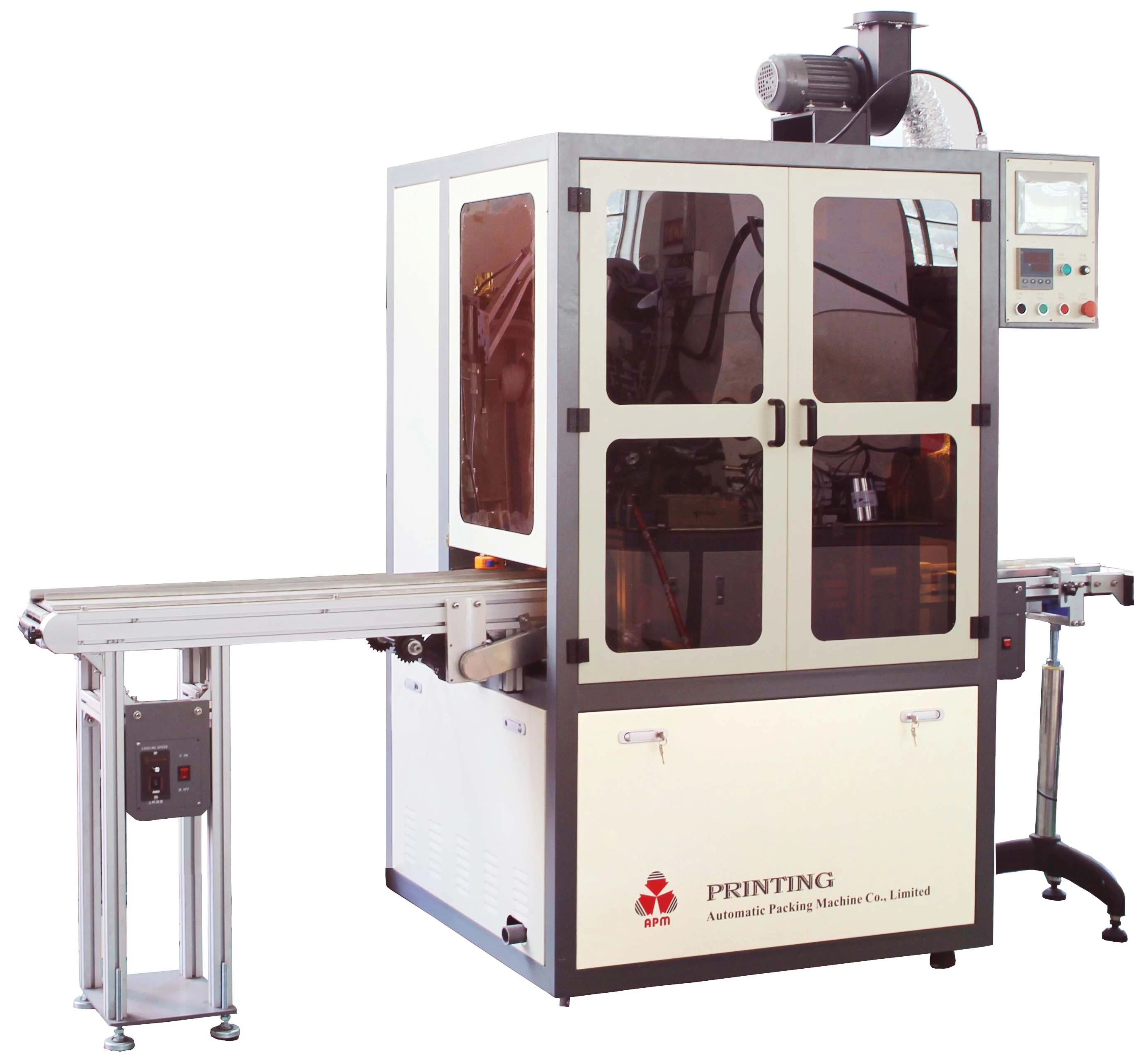

H200B Auto hot stamping machine for cosmetic bottles
The H200B is designed for hot stamping of cosmetic bottles at high production speeds. Reliability and speed make the H200B ideal for off-line or in-line 24/7 production.
Application:
The H200B is designed for hot stamping of cosmetic bottles at high production speeds. Reliability and speed make the H200B ideal for off-line or in-line 24/7 production.
Description:
1. Automatic loading system with conveyor. Auto feeder optional.
2. Anti-static dust cleaning before stamping
3. High accuracy indexer
4. Auto pre-registration optional
5. Servo driven stamping head with stamping depth adjustable for individual jigs (optional).
6. Well built machine house with CE demand for safety production.
7. Reliable PLC control with touch screen display.
Tech data:
| Model | H200B |
| Max stamping area | 120*80mm |
| Stamping Head Stroke | 50mm |
| Max. article Height | 75mm |
| Temperature | Room Temperature~280℃ |
| Stamping Pressure | ≤500kgf |
| Max. Stamping Speed | 30-55pcs/min |
| Air Pressure | 4~7bar |
| Air Consumption | ≤80L/min |
| Power Supply | 220V 60Hz/50Hz |
| Heating Power | 1000W |
| Weight | 500kg |
Samples:
