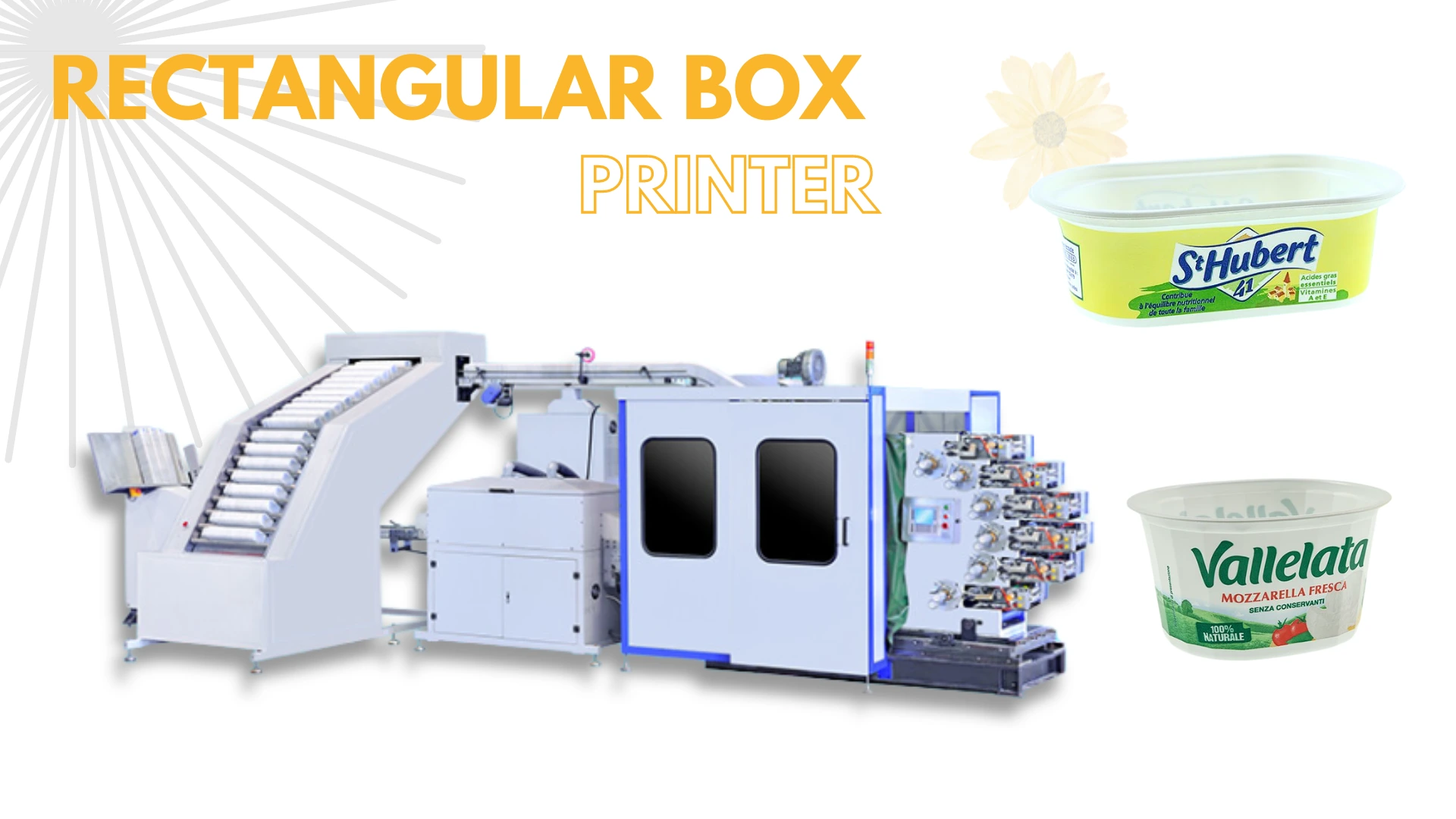

APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer

The APM-6500 box offset printer is a food container printing machine for offset printing on oval, square or rectangular plastic containers with a max. printing length of 550mm, and max. printing speed can be up to 150pcs/min, which can print 6 colours.


    oops...!

    no product data.

    Go to homepage

    Product Details

    APM-6500 automatic box offset printing machine can print up to 6 colors,  which can print on yogurt box, ice cream box, crisper box, plastic lunch box and various food packaging boxes.

    Tech-data

    Model Number

    APM-6500

    Product Name

    High Speed Plastic Box Printing Machine

    Maximum Printing Speed

    150pcs/min

    Printing Color

    6 colors

    Size to be printed

    L150mm*W100mm*H120mm

    Printing Area

    L500mm *H100mm(Max)

    Power

    20 KW

    Applicable Material

    PP、PS、PET

    MOQ

    1set

    Features

    Automatic Rectangular Box Feeding System

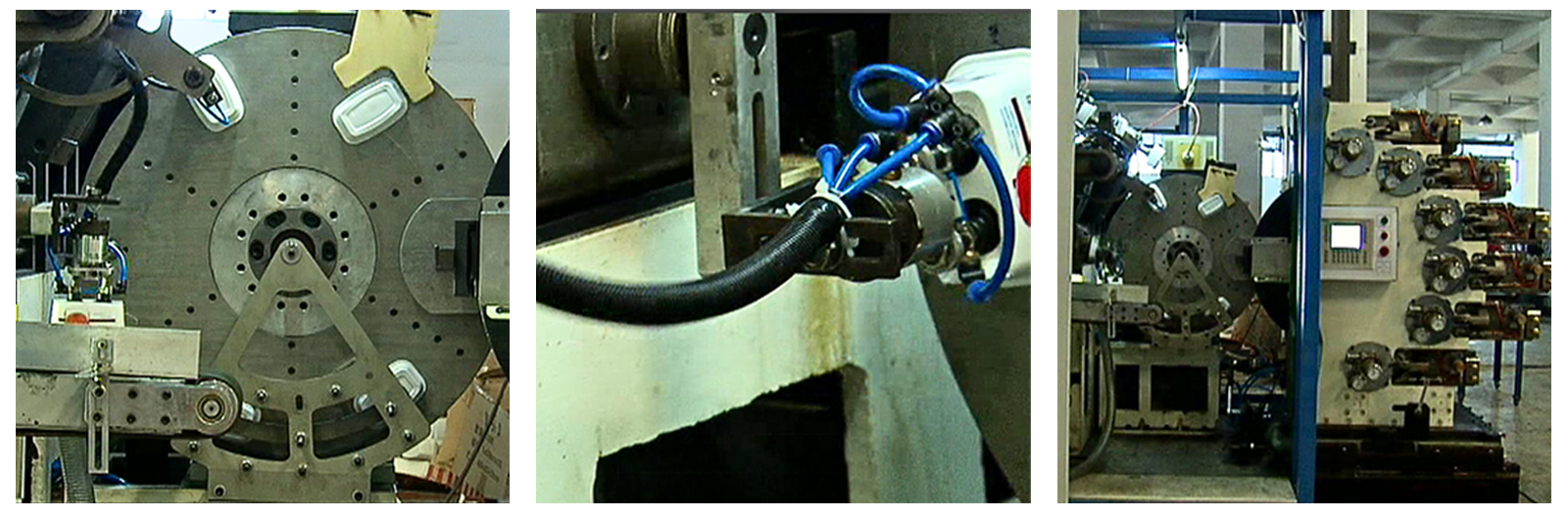

    Machine Detail

    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 8

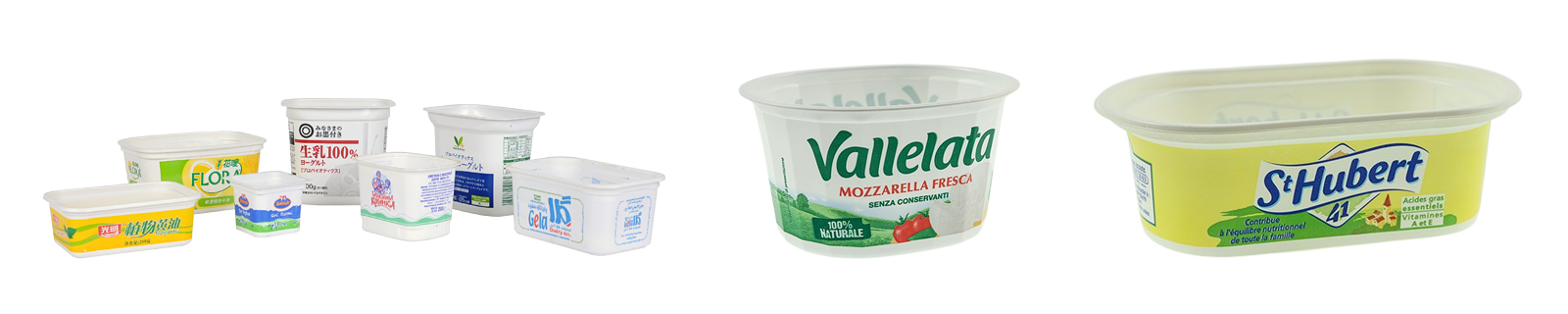

    Application

    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 9

    General Description

    1. Auto-loading and unloading system (Can custom loading system according to special requirements)

    2. Auto flame treatment

    3. Auto UV drying system

    4. High-accuracy indexer

    5. High-speed offset printing


    Technical Process

    Cup feeding → Corona treatment → Printing→ UV Curing→ Cup out


    Electrical Components & Its Brand
    1)SWITCHSchneider
    2)SIGNAL LAMPGQELE
    3)CONTACTORSchneider
    4)THERMAL OVERLOAD RELAYSchneider
    5)PLASTIC FIBRE OPTIC LIGHT GUIDE & AMPLIFIERFOTEK
    6)CIRCULT BREAKERABB
    7)Timing BeltJapan
    8)InverterDelixi
    9)Intermediate RelayABB
    10)PLCSIEMENS
    11)Air CylinderAIRTAR、CHBH, etc
    12)Main MotorSIEMENS
    13)Displayer of PLCSIEMENS
    14)CoronaMade in China
    15)IndexerMade in China




    List of Free Spart Parts for the Machine
    DescriptionQuantity
    Plate hole punch1 pc
    Toolbox1 set
    “Loading cup unit”Timing belt2 pcs
    Forming roller1 pc
    Middle roller1 pc
    INK Form roller1 pc
    Belt for Blanket Cylinder(Installed on the Machine)1 pc
    UV lamp2 pc
    Blanket sticker2 pcs
    Blanket0.2 sqm
    Magnetic base1 set
    Pipe joints φ12 4′Straight joint1 pc
    Pipe joints φ12 4′Elbow1 pc
    Pipe joints φ12 2′Through Type1 pc
    Pipe joints φ12 2′Elbow1 pc
    SMC Pipe joint φ4 1′Three Way4 pcs
    SMC Pipe Joint φ4 M5 Elbow2 pcs
    Magnetic Switch2 pcs
    Photo Sensor MF-30X1 pc
    Optical Fibre Amplifier1 pc
    Auxiliary relay2 pcs
    Cup Printer Instruction Manual1 pc



    Main product

    Screen Printing Machine

    Bottle screen printing machine, Cup screen printing machine, Tube screen printing machine, Jar screen printing machine, Cap screen printing machine, Syringe screen printing machine, Bucket screen printing machine,  Perfume bottle screen printing machine, Glass screen printing machine, Plastic screen printing machine, Paper screen printing machine, Automatic screen printing machine, Cosmetic container printing machine, Cylindrical screen printing machine, Flat screen printing machine, Servo screen printer, Servo bottle screen printing machine, CNC printing machine, UV screen printing machine.

    Bottle cap hot stamping machine, Glass hot stamping machine, Plastic hot stamping machine, Bottle hot stamping machine, Cup hot stamping machine, Tube hot stamping machine, Perfume bottle hot stamping machine, Cosmetic container stamping machine, Jar hot stamping machine.

    Pad Printer

    Bottle pad printing machine, Plastic cup pad printing machine, Clothes pad printing machine, Ceramics pad printing machine, Cap pad printer.

    Labelling Machine

    Water bottle labelling machine, Automatic labelling machine, Wine bottle labelling machine, Wines labelling machine, Drinks labelling machine

    Food packaging box labelling machine, Cosmetic container labelling machine.

    Dry Offset Printer

    Cap offset printing machine, Cup offset printer, Plastic cup printing machine, Tube printing machine, Box offset printing machine, Lid offset printer, Bucket offset printer, Plastic bucket printing machine, Bowl offset printing machine, Ice-cream box offset printer, Flowerpot printing machine, Flexible tube offset printer, Soft tube dry offset printing machine, Coffee cups offset printing machine.

    Assembly Machine

    Wine bottle cap assembly machine, Syringe assembly machine, Lipstick tube assembly machine, Cosmetic container assembly machine.


    COMPANY PROFILE

    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 10

    Automatic Printing Machine Co.Limited(APM), We are a top supplier of high-quality automatic screen printing machines, hot stamping machines, labelling machines, dry offset printers, and pad printers, as well as automatic assembly lines, UV painting lines and accessories.


    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 11
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 12
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 13
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 14
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 15
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 16

    And we have more than 25 years of experience and hard work in R8D and manufacturing.

    We are fully capable of supplying machines for all kinds of packaging, such as wine caps, glass bottles, water bottles, cups, mascara bottles, plastic tubes,  syringes, lipsticks, jars, power cases, shampoo bottles, pails, various cosmetic container etc.


    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 17
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 18
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 19

    All machines are built with CE standards


    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 20
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 21
    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 22

    Our Advantage

    Established in 1997, our company is one of the oldest manufacturers able to design and build fully automatic multi-colour printing and stamping machines for glass and plastic substrates.


    APM-6500 Six Colors Printing Machine High Speed Box Dry Offset Printer 23

    F.A.Q.
    • Q: What is Dry Offset Printing Machine??
      A: Dry offset printing machine is a specialized printing equipment that utilizes the dry offset printing process. This technique involves transferring ink from a metal plate to a rubber blanket before applying it to the printing surface. Notable for its ability to print on curved or uneven surfaces.
    • What are the applications of dry offset printing machines?

    • Q: What Applications for Offset Printing Machine
      A: Dry offset printing machine applications for plastic and paper containers multi-colour printing, like cups, buckets, caps, bowls and tubes.
    • Q: What is your production time?
      A: Normally it takes about 30-35 days for one machine.
    • Q: What is the warranty time for machines?
      A: One year for the machine, and six months for the electric parts.
    • Q: Where is your factory located?
      A: Our factory is located in SHANTOU, GUANGDONG, CHINA. requirements.
    • Q: Can Dry Offset machines handle high-speed printing without compromising quality?
      A: Yes, Dry Offset machines can handle high-speed printing while maintaining quality and precision.
    • Q: How easy is it to switch between different colours on a Dry Offset machine?
      A: Dry Offset machines offer ease in switching between different colours, facilitating diverse and vibrant printing.
    • Q: What brands do you print for?
      A: Our customers printing for BOSS, AVON, DIOR, MARY KAY, LANCOME, BIOTHERM, MAC, OLAY, H2O, APPLE, CLINIQUE, ESTEE LAUDER, VODKA, MAOTAI, WULIANGYE, LANGJIU...
    • Q: Can Dry Offset printers handle multi-colour printing effectively?
      A: Yes, Dry Offset printers are proficient in handling multi-colour printing, achieving vibrant and intricate designs.
