Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

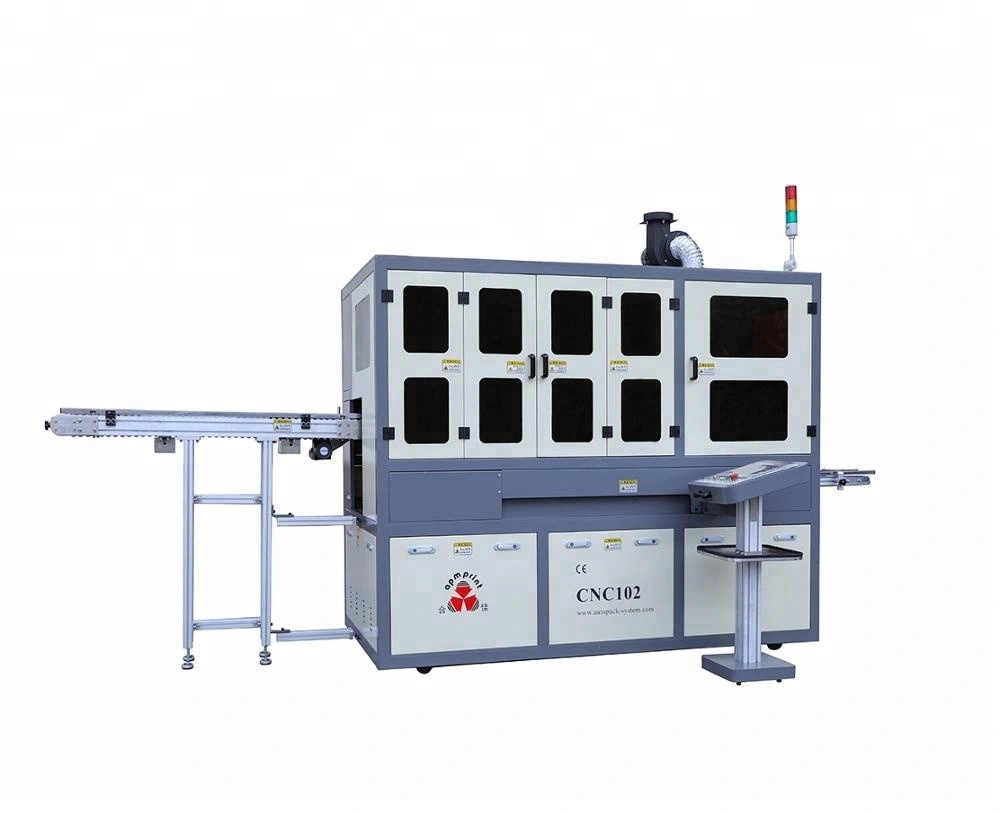

APM PRINT - CNC102 Automatic Loading System Glass Cups Auto Screen Printing Machine Auto hot stamping machine
Shenzhen Hejia Automatic Printing Machine Co., Ltd. comes here today with the great news that we have successfully developed Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine.It is a kind of new product made by state-of-the-art technologies. Technological innovation is the cornerstone of product quality. In the future, Shenzhen Hejia Automatic Printing Machine Co., Ltd. will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.
| Type: | Heat Press Machine | Applicable Industries: | Manufacturing Plant |
| Condition: | New | Plate Type: | Letterpress |
| Place of Origin: | Guangdong, China | Brand Name: | APM |
| Model Number: | CNC102HR | Usage: | Glass Bottle Stamping |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Dimensions(L*W*H): | 1800 x 1320 x 22000mm |
| Weight: | 1200kgs | Warranty: | 1 Year |
| After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas | Certification: | CE Certificate |
| Product Name: | Automatic Loading System Glass Cups Auto Screen Printing Machine | Application: | Glass Bottle Stamping |
| Printing Speed: | Max. 30pcs/min, normal: 20-27pcs/min | Printing Size(Round Container): | Dia.20-90mm & Len. 30-180mm |
| Printing Size(Irregular container): | Wid. 20-100mm & Len. 30-180mm |
Tech-data
Product Name | Automatic Loading System Glass Cups Auto Screen Printing Machine |
Printing speed | Max. 30pcs/min, normal: 20-27pcs/min |
| Power | 380V, 3P 50/60HZ |
| Air pressure | 6-8Bar |
Round Container |
|
Printing diameter | 20-90mm |
Printing length | 30-180mm |
Square/Irregular container |
|
Printing Width | 20-100mm |
Printing Length | 30-180mm |
Application
All shapes of glass bottles.
General Description
1. Loading belt. Bottle standing on belt.
Loading belt length:2m, unloading belt length: 1.2m (outside machine length: 0.5m)
Extra : 90°after unloading belt add another belt 1.5m and a buffer (diameter: 1m)
2. Mechanical registration
3. Servo motor driven: pre-registration, product rotate, product left/right moving, product up/down moving, foil winding
4. Multi sides printing in one process.
5. Super quick and easy change over from one product to another.
6. All parameters automatic setting simply in touch screen.
7. Automatic unloading with servo robot. Bottle standing unloading.
8. Safety operation with CE.
9. Repeat print to be multi colors.
Two machines in line:
1. Two machines can combine together, transfer from screen printing to hot stamping directly, no belts between two machines but a device with wheels;
2. Two machines can separate, with two more belts between two machines, all belts in one line (direction).
3. With one page on touch screen to input password and choose if we need to separate two machines. (if we need to use extra belts).
