Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

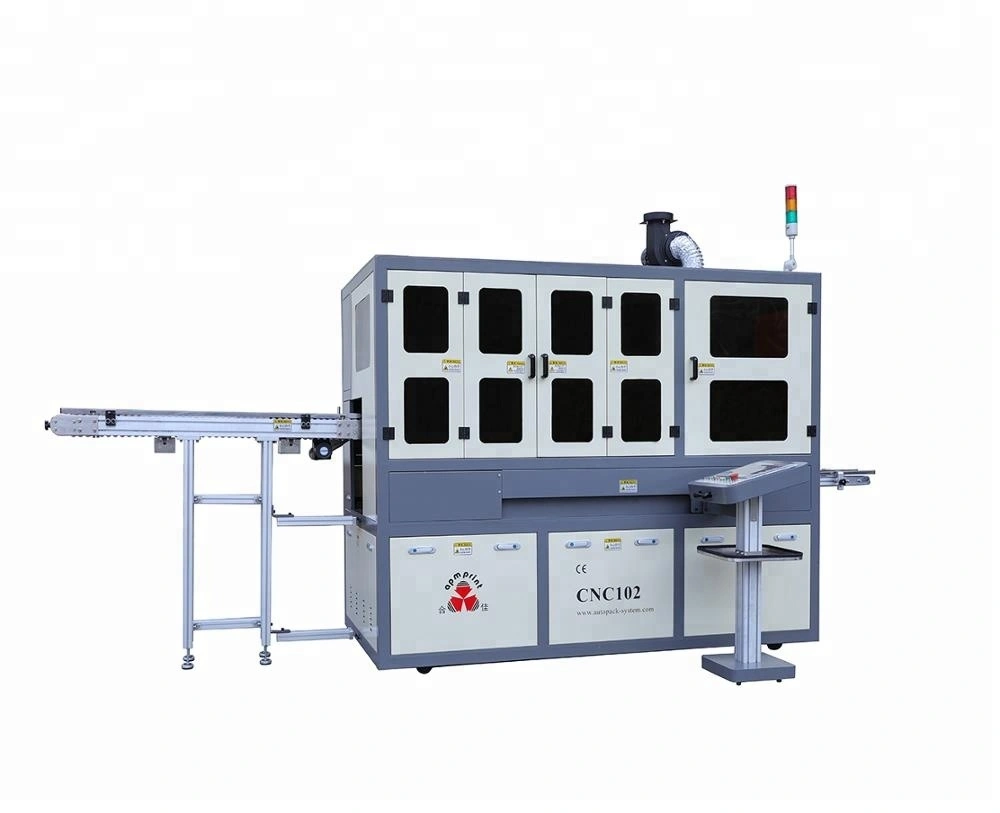

APM PRINT - CNC102 Automatic Hot Foil Stamping Machinery For All Shape Glass Bottle Auto hot stamping machine
Shenzhen Hejia Automatic Printing Machine Co., Ltd. has been focusing on improving technologies to develop new products on a regular basis. We have successfully made CNC102 Automatic Hot Foil Stamping Machinery For All Shape Glass Bottle launch to the public as scheduled. With its new features, Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine is expected to lead the industry trend. We pride ourselves on our personalized and efficient service. In the future,CNC102 Automatic Hot Foil Stamping Machinery For All Shape Glass Bottle will increase more capital and technology investment to continuously improve the comprehensive competitiveness of the enterprise, and strive to remain invincible in the market forever.
| Type: | Heat Press Machine | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Plate Type: | Letterpress |
| Place of Origin: | Guangdong, China | Brand Name: | APM |
| Model Number: | CNC102HR | Usage: | Glass Bottle Stamping |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Dimensions(L*W*H): | 1800 x 1320 x 22000mm |
| Weight: | 1200kgs | Warranty: | 1 Year |
| After-sales Service Provided: | Online support, Video technical support, No overseas service provided | Certification: | CE Certificate |
| Product Name: | Most Popular Automatic Hot Foil Stamping Machinery Shape Glass Bottle | Application: | Glass Bottle Stamping |
| Printing Speed: | Max. 30pcs/min, normal: 20-27pcs/min | Printing Size(Round Container): | Dia.20-90mm & Len. 30-180mm |
| Printing Size(Irregular container): | Wid. 20-100mm & Len. 30-180mm |
Tech-data
Printing speed | Max. 30pcs/min, normal: 20-27pcs/min |
| Power | 380V, 3P 50/60HZ |
| Air pressure | 6-8Bar |
Round Container |
|
Printing diameter | 20-90mm |
Printing length | 30-180mm |
Square/Irregular container |
|
Printing Width | 20-100mm |
Printing Length | 30-180mm |
Application
All shapes of glass bottles.
General Description
1. Loading belt. Bottle standing on belt.
Loading belt length:2m, unloading belt length: 1.2m (outside machine length: 0.5m)
Extra : 90°after unloading belt add another belt 1.5m and a buffer (diameter: 1m)
2. Mechanical registration
3. Servo motor driven: pre-registration, product rotate, product left/right moving, product up/down moving, foil winding
4. Multi sides printing in one process.
5. Super quick and easy change over from one product to another.
6. All parameters automatic setting simply in touch screen.
7. Automatic unloading with servo robot. Bottle standing unloading.
8. Safety operation with CE.
9. Repeat print to be multi colors.
Two machines in line:
1. Two machines can combine together, transfer from screen printing to hot stamping directly, no belts between two machines but a device with wheels;
2. Two machines can separate, with two more belts between two machines, all belts in one line (direction).
3. With one page on touch screen to input password and choose if we need to separate two machines. (if we need to use extra belts).
