Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

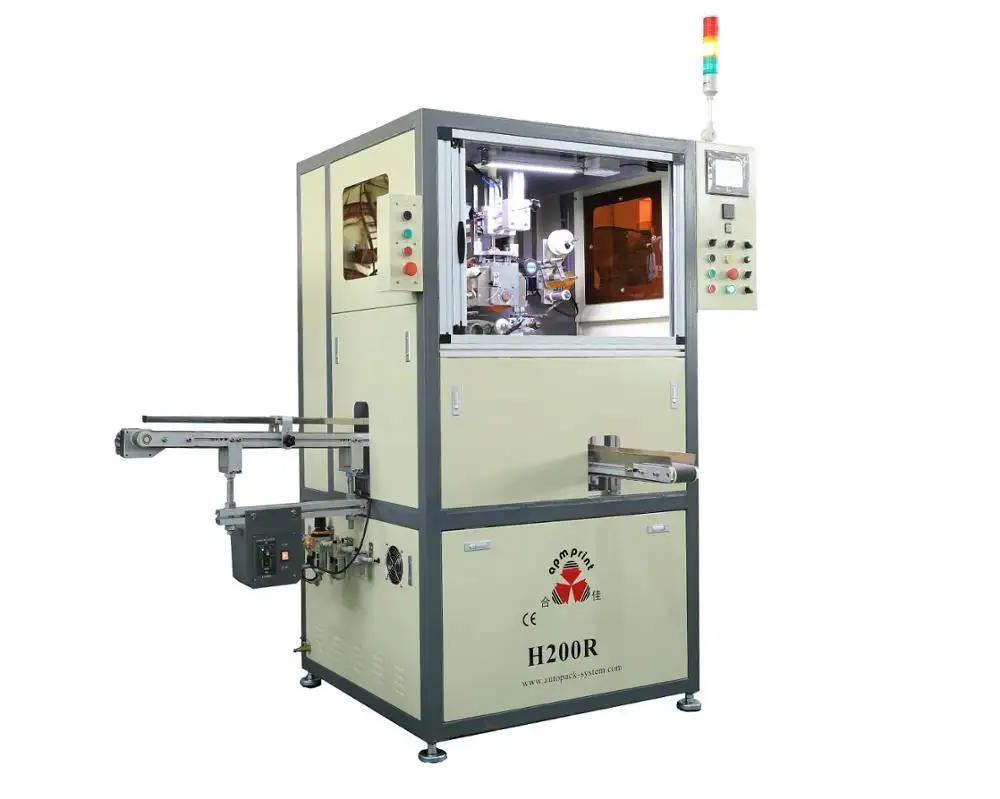

APM PRINT - H200R Automatic hot stamping machine for wine or cosmetic caps and bottles Auto hot stamping machine
Buy the best quality of H200C Automatic hot stamping machine for wine or cosmetic caps and bottles from some of the best sellers and manufacturers from APM PRINT.We can offer you the best quality of Heat Press Machines at prices that will meet your budget.We make sure that everything that is being done by APM PRINT does the work in a professional way.
Shenzhen Hejia Automatic Printing Machine Co., Ltd. In order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created H200C Automatic hot stamping machine for wine or cosmetic caps and bottles. High-end technologies are used to manufacture H200C Automatic hot stamping machine for wine or cosmetic caps and bottles.The product can play out its greatest effect in the field(s) of Heat Press Machines. The design is the most striking aspect of APM PRINT. Its design comes from our designers who are sensitive to fashion and are know the commercial needs of the market very well. Also, Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine made of well-selected raw materials.
| Type: | Heat Press Machine | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Plate Type: | Other |
| Place of Origin: | Guangdong, China | Brand Name: | APM |
| Model Number: | AH200B | Usage: | cosmetic printing |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380V | Dimensions(L*W*H): | 1200*1200*1800mm |
| Weight: | 500kg | Warranty: | 1 Year |
| After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas | Certification: | CE Certificate |
| Application: | wine or cosmetic caps and bottles stamping |
AH200B Automatic hot stamping machine for wine or cosmetic caps and bottles
Application:
The AH200B is designed for hot stamping of caps or cosmetic tubes at high production speeds. Reliability and speed make the AH200B ideal for off-line or in-line 24/7 production.
Description
1. Automatic loading system with conveyor and vacuum robot
2. Anti-static dust cleaning before stamping
3. High accuracy indexer from Japan
4. Auto foil feeding and winding.
5. Height of stamping head adjustable. Stamping pressure adjustable.
6. Auto foil dust cleaning before unloading
7. Well built machine house with CE demand for safety production.
8. Reliable PLC control with touch screen display.
Tech-data:
Model | AH200B |
Max stamping area | 120×80mm |
Stamping Head Stroke | 50mm |
Max. article Height | 75mm |
Temperature | Room Temperature~280℃ |
Stamping Pressure | ≤500kgf |
Max. Stamping Speed | 40-60pcs/min |
Air Pressure | 4~7bar |
Air Consumption | ≤80L/min |
Power Supply | 220V 60Hz/50Hz |
Heating Power | 1000W |
Weight | 500kg |
