high-quality pad printing equipment factory | APM PRINT

At APM PRINT, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. pad printing equipment We promise that we provide every customer with high-quality products including pad printing equipment and comprehensive services. If you want to know more details, we are glad to tell you.With this product in place, business owners will likely see a decrease in workplace accidents and workman’s compensation claims.

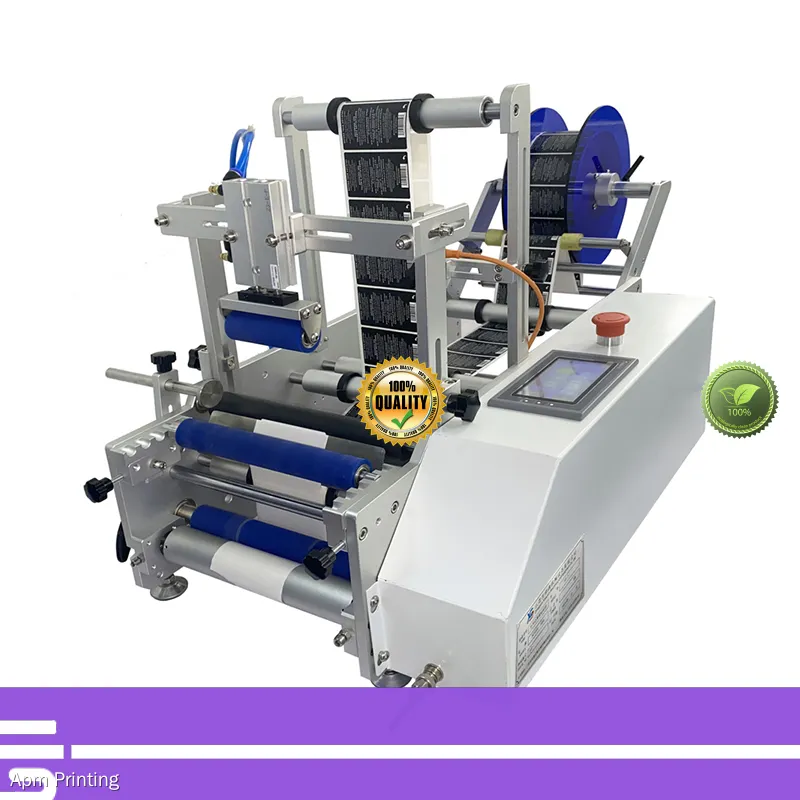

Thanks to the efforts of our employees including technicians and designers, Shenzhen Hejia Automatic Printing Machine Co., Ltd. is able to introduce our .APM-L220 semi automatic glass wine can beer cans water round bottle labelling machine to the public. Innovation ability is the key to the core competitiveness of products. APM PRINT has been dedicated to the design, R&D, manufacturing, and updates of Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Products Description

Labeling speed:	about 10-250P/min(Depend on bottles size)
Labeling accuracy:	±1mm(Do not include errors such as product labels)
Applicable Max product size:	L:60-400mm W:80-300mm H:≤10mm
Applicable label range:	Length 10~300mm,Width of base paper 10-120mm(Extra-large up to 195mm wide)
Table Adjustment:	X,Y ± 15mm / θ 15 °
Max label supply:	Outer diameter ≤300mm,Inner diameter 76mm
Ambient temperature/humidity:	0-50℃/15-85%
Power:	AC220V, 50HZ
Size and weight:	about 2000*1300*1500mm(l*w*h)/about 190Kg

Standard Features:

1.After the label is placed, a braking mechanism is added to prevent the label from deviating or slipping to ensure the labeling accuracy;

2.The cylinder is equipped with a rubber-covered topping mechanism, which can be customized with different sizes of rubbers according to different products. The mechanism makes the product and label fit better without labeling bubbles.

3.Automatic induction can be added, there is no need to manually step on the foot switch to label the instructions;

4.The equipment can pass the widest label size of 190mm, which is larger than the compatible size of equipment in the same industry.

5.Product diameter compatible range can be adjusted arbitrarily from 15mm to 120mm

6.Single-label positioning stickers can be used for full or half circumference, and double-label positioning stickers can be used for front and back labels. Labeling parameters (for reference only) 1.Roll self-adhesive labels with an inner core diameter of 76 mm and an outer diameter of 300 mm or less. 2.2~4mm between the label and the label, leaving 2~4mm at the edge of the label base paper.

Applications

APM-L220 Suitable for labeling cylindrical objects of various specifications, small tapered round bottles, such as mineral water bottles, xylitol, cosmetic round bottles, wine bottles,drug bottles, etc. It can realize full circumference/half circumference labeling, round circumference front and back labeling which can be adjusted arbitrarily. Widely used in food, cosmetic, chemical, pharmaceutical and other industries.

Recommend Products

Automatic self-adhesive labeling machine

Automatic card labeling machine

Automatic round bottle labeling machine

Automatic Double Sided Bottle Labeling Machine

Customer praise

Company Profile

Company Profile

Automatic Packaging Machinery Co., Ltd. (APM) We are the top supplier of high quality automatic screen printers, bronzing machines, pad printing machines, advertising automatic lines, UV spray lines and accessories. All machines are manufactured according to CE standards.

With more than 20 years of R&D and manufacturing experience, we are fully capable of supplying various packaging machines, such as wine bottles, glass bottles, water bottles, cups, mascara bottles, lipsticks, bottles and jars, power boxes, shampoo bottles, barrels, etc.

Exhibition pictures

FAQ

FAQ

Q:How to order from your company？

A:Please send us inquiry and online inquiry through or our official website. Then our sales will reply the quotation to you. If the customer agrees to the offer, the company will sign a sales contract. Next, the buyer fulfills the payment obligation and the dstar machine starts production to the order.

Q:Can we print samples to check the quality？

A:yes

Q:Is there operation training？

Yes, we offer free training on how to install and use the machine, and more importantly, our engineers can go overseas to repair the machine!

Q:How long warraty of the machine？

A:year+lifelong technical supports

Q：Which payment item do you accept？

A: L/C (100% irrevocable sight) or T/T (40% deposit + 60% balance before delivery)
