Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
Custom automatic silk screen machine manufacturers Manufacturer | APM PRINT
Guided by scientific and technological innovation, APM PRINT always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. automatic silk screen machine We have been investing a lot in the product R&D, which turns out to be effective that we have developed automatic silk screen machine. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.This product will help eliminate the monotony in work, evils of the factory system, and unequal distribution of wealth and income, etc.
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability,S102 multicolor universal automatic screen printing machine is suitable for the field(s) of Screen Printers. Processed by elaborate craft, the appearance of S102 multicolor universal automatic screen printing machine is vivid. Shenzhen Hejia Automatic Printing Machine Co., Ltd. has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Tube Printer, bottle printer, cup printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60HZ | Dimensions(L*W*H): | 2500x1420x1700mm |
| Weight: | 2200KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas |
| Application: | Printing Bottle | Printing color: | 1~2c |
| Printing speed: | 4000pcs/H | Max printing size: | dia.100mm |
| Dryer: | UV Dryer |

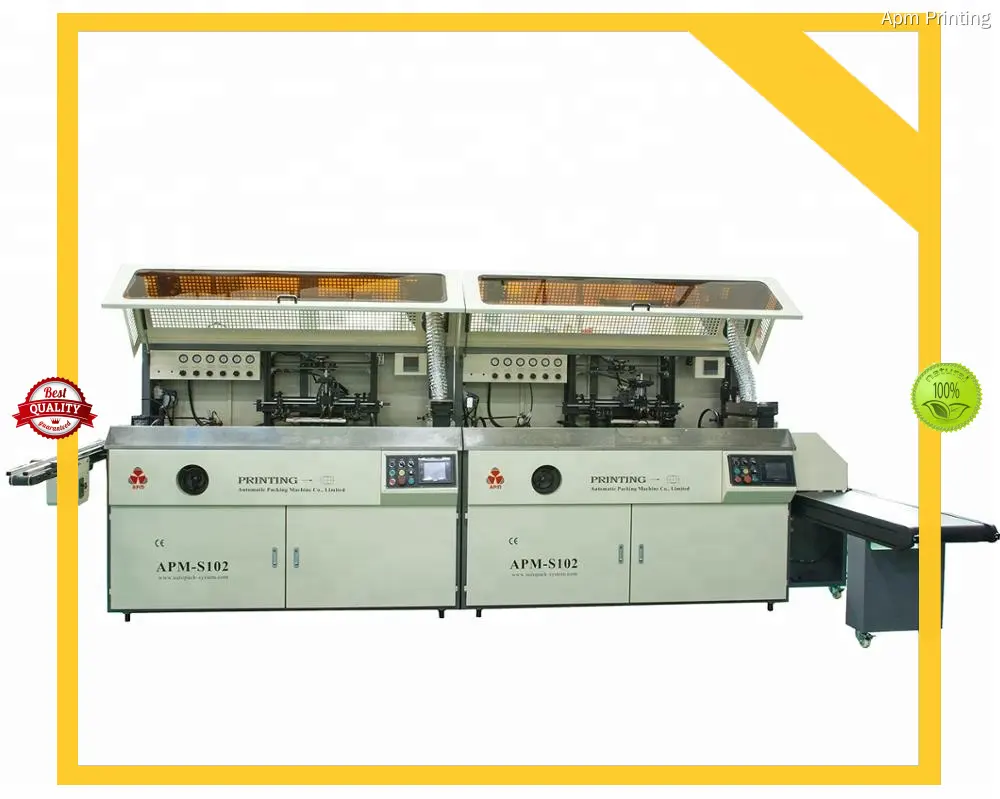

Parameter | APM-S102 |
Round container | |
Printing diameter | 20-100mm |
Printing length | 20-300mm |
Max.printing speed | 4000pcs/h |
Oval container | |
Printing width | 25-120mm |
Printing length | 25-300mm |
Max.printing speed | 5000pcs/h |
Square container | |
Printing length | 100-200mm |
Printing width | 40-100mm |
Max.printing speed | 4000pcs/h |
Machine dimension | 1908*1000*1500mm |
Power | 380V,3P,50/60Hz |
Air supply | 5-7bar |
Application
The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.
Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
General Description

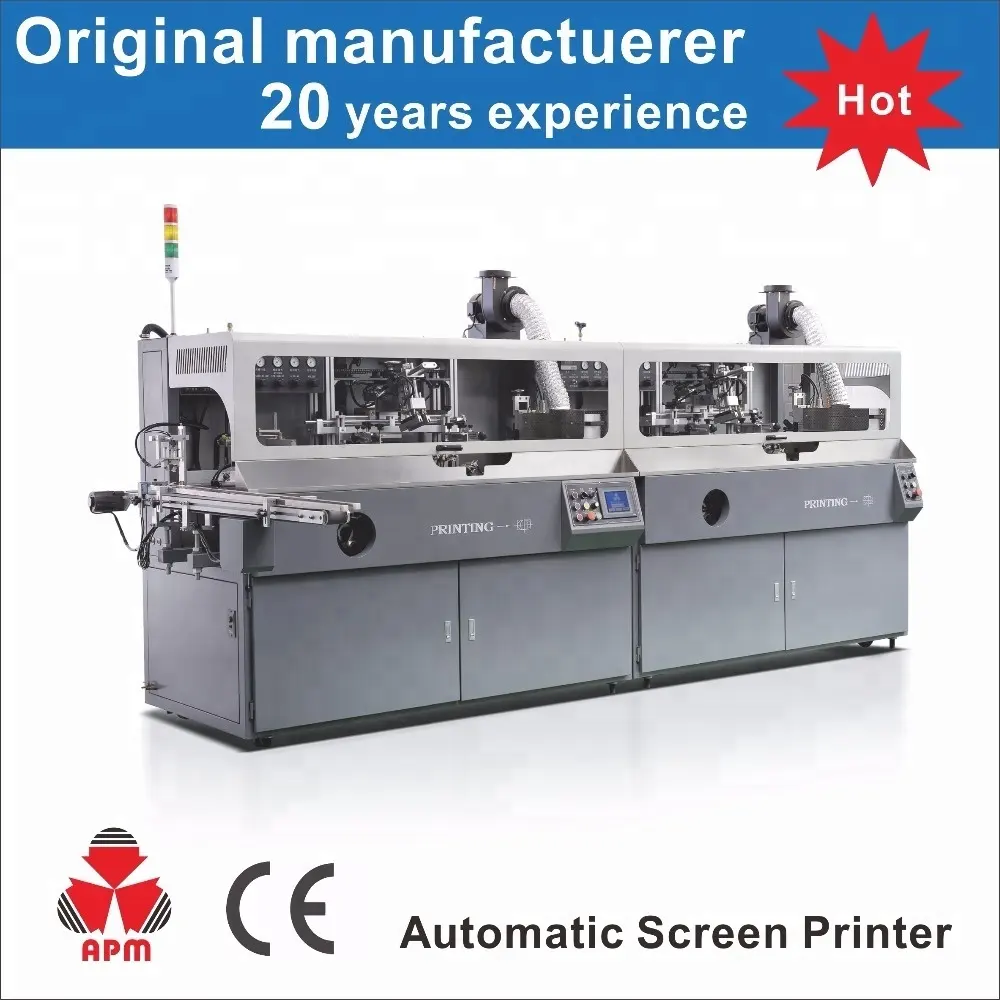

Automatic 1-8 color screen printing line, each unit can be separated or connected;
Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
Auto flame treatment;
Perfect transmission system. It passes over the bottles fast and smooth;
Automatic 180 degree rotation for oval and square bottles;
Quick and easy change over from one product to another;
LED UV curing system with longer life time and energy saving,electric UV system optional;
Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
Automatic unloading.
Procedure
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
