Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
APM PRINT - 3-6 color automatic servo round flat square bottle rotary screen glass plastic serigraphie printing machine with auto loading Auto Screen Printer
As Shenzhen Hejia Automatic Printing Machine Co., Ltd. continues to develop, we invest heavily in product development every year in order to keep us competitive in the industry. This year, we have successfully worked out the 3-6 color automatic servo round flat square bottle rotary screen glass plastic serigraphie printing machine with auto loading. The 3-6 color automatic servo round flat square bottle rotary screen glass plastic serigraphie printing machine with auto loading launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. Used in Screen Printers,3-6 color automatic servo round flat square bottle rotary screen glass plastic serigraphie printing machine with auto loadinghas a promising application prospect.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Food & Beverage Shops, cosmetic package |
| Condition: | New | Place of Origin: | China |
| Brand Name: | APM | Usage: | Tube Printer, bottle printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Weight: | 7000 KG |
| Certification: | CE certificate | Warranty: | 1 Year |
| After-sales Service Provided: | Online support, Video technical support | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, PLC, servo motor and driver |
| Model: | APM-CNC106 | Power: | 380V, 3P 50/60Hz |
| Air consumption: | 6~8bar | Max Printing speed: | 30~60pcs/min |
| Max. printing Dia.: | 60mm | Max. printing circumstance: | 180mm |
| Product height: | 25-250mm | Max. printing height: | 200mm |
| Application: | bottle printing | Item: | Automatic Silk Screen Printing Press |

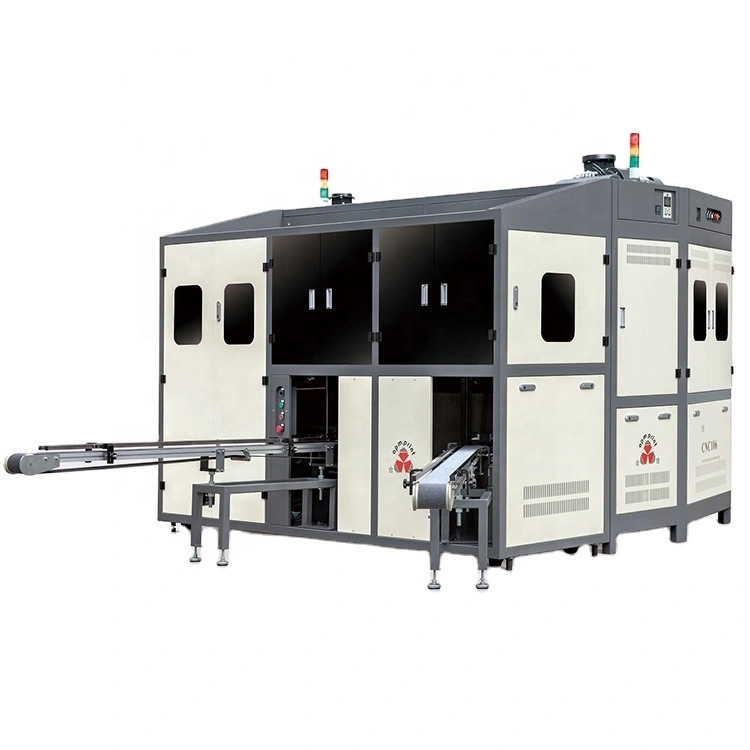

CNC106 3-6 color automatic servo screen printer
Application:
Round, oval, square bottles
Description:
1. Auto loading belt, fully auto loader optional with extra charge.
2. Dust clean
3. Auto flame treatment
4. 12 stations
5. Inflation at each printing station for soft bottles
6. All servo driven screen printer with best accuracy
*printing heads driven by servo motor
*mesh frames driven by servo motors
*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
7. Multi color print in 1 process
8. Camera vision system (CCD) optional : for cylindrical products without registration point, repeat print to be double colors.
9. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen.
10. Auto UV drying after each color printing.
11. Automatic unloading.
12. Well built machine house with CE standard safety design.
13. Hot stamping optional
Tech-data
| Parameter/Item | CNC106 |
| power | 380V, 3P 50/60Hz |
| Air consumption | 6-8bar |
| Max Printing speed | 30~60pcs/min |
| Max. printing Dia. | 60mm |
| Max. printing circumstance | 180mm |
| Product height | 25-250mm |
| Max. printing height | 200mm |
Main parts brand
| Control system | YASKAMA PLC | JAPAN |
| Touch screen | WEINVIEW | TAIWAN |
| Servo system | YASKAMA | JAPAN |
| Index | DEX/SANDEX | TAIWAN |
| Electrical parts | OMRON/SCHNEIDER | JAPAN/FRANCE |
| Pneimatic parts | SMC/AIRTAC | JAPAN/Taiwan |
Samples:
Remarks:
Language: Chinese, English and local language optional.
The buyer will help to translate the panels to local language
