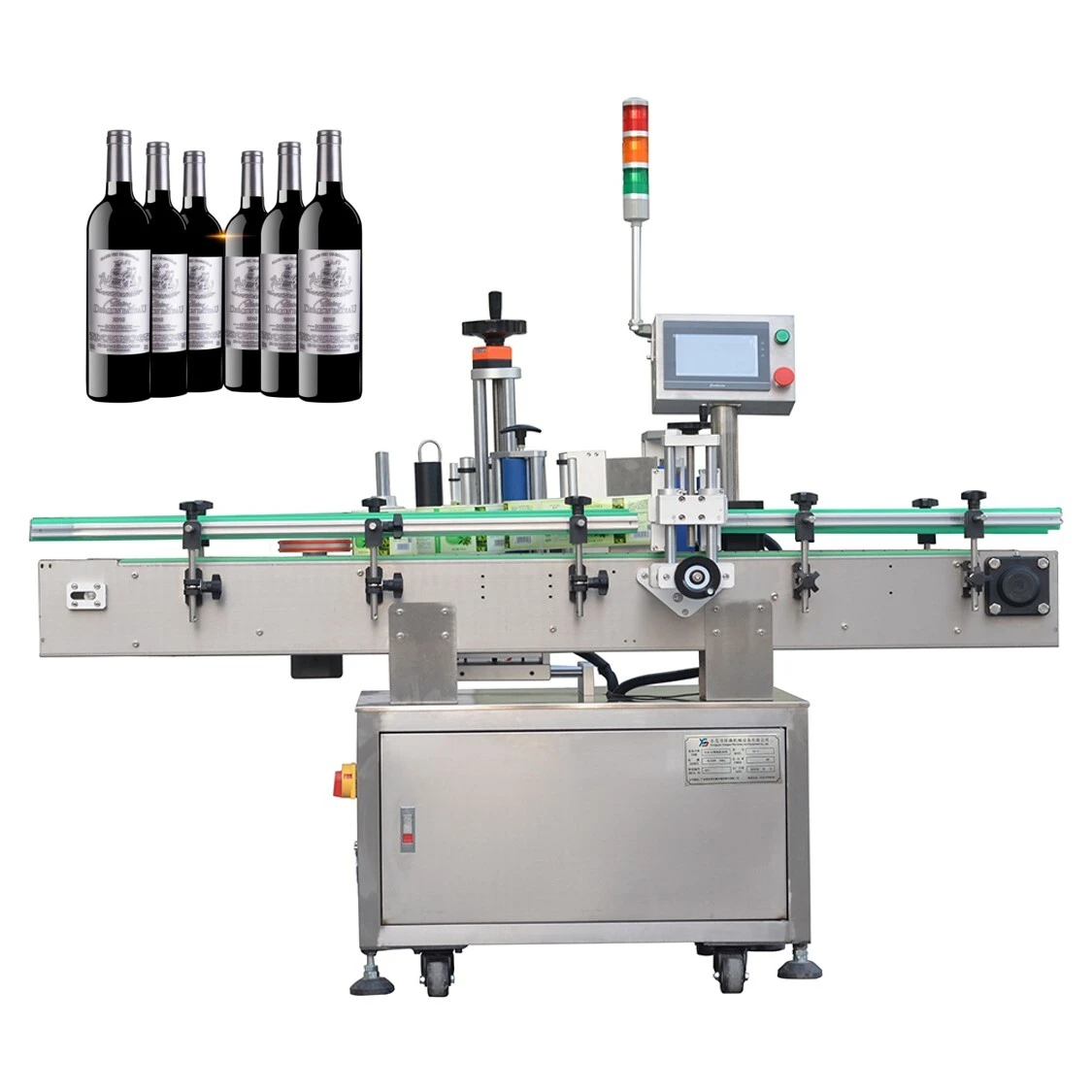

APM PRINT - Automatic round bottle sticker printing machine water bottle beer can wrap around labeling machine

After years of development, Shenzhen Hejia Automatic Printing Machine Co., Ltd. has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. After the Automatic round bottle sticker labeling water bottle beer can wrap around labeling machine was launched, most customers have given positive feedback, believing that this type of product meets their expectations for high-quality products. Having analyzed the industry dynamics and researched the market development, we ensure our Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine has advantages in both its appearance and performance. It is designed to be of a unique structure and look, making it highly attractive to potential customers. In addition, the features of our Automatic round bottle sticker labeling water bottle beer can wrap around labeling machine makes it more valuable.

Products Description

Labeling speed:	about 25-55P/min(Depend on bottles size)
Labeling accuracy:	±1mm(Do not include errors such as product labels)
Applicable product size:	diameter 20-110mm; height 30-320mm
Applicable label range:	Length 10~350mm,Width of base paper 10-120mm(Extra-large base paper up to 195mm wide)
Table Adjustment:	X,Y ± 15mm / θ 15 °
Maximum Screen Frame Size:	280 x 430mm (11.02" x 16.93")
Max label supply:	Outer diameter ≤ 300mm,Inner diameter 76mm
Ambient temperature/humidity:	0-50℃/15-85%
Power:	AC220V, 50HZ
Size and weight:	about 1900*1450*1560mm/about 180Kg

Standard Features:

1. Powerful functions, the same equipment can realize single and double labeling of cylindrical products with small taper objects, and the double-label spacing can be flexibly adjusted. The optional circumferential positioning detection device can realize the function of positioning and labeling on the circumferential surface;

2. The label has a high degree of coincidence, equipped with a top pressing mechanism, combined with a 3-axis positioning mechanism, to prevent the bottle from fluctuating up and down and improve the labeling accuracy;

3. The automatic bottle separation adopts the elastic pressure bottle separation mechanism, which effectively eliminates the unsmooth bottle separation caused by the error of the bottle itself and improves the stability;

4. Touch screen control has the function of operation and teaching, parameter modification is intuitive and clear, and various function switching is simple;

5. Intelligent control, automatic photoelectric tracking, it has no object not labeling, no label automatic correction and detection function, to avoid wasting labels and missing stickers.

6. High stability, advanced electronic control system is composed of Panasonic programmable PLC + touch screen + Panasonic needle-shaped electric eye + German Sick label electric eye, which supports 7×22 hours of operation of the equipment.

7. Sturdy and hygienic, mainly made of stainless steel and high-grade aluminum alloy, with firm quality and in line with GMP production requirements;

8. Automatic shutdown, production counting, power saving, production number setting prompt, parameter setting protection to facilitate production management;

9. Optional functions: hot coding/spraying; automatic feeding (vertical bottle feeder); automatic material receiving ; adding labeling device; unlabeled bottle Removal(made according to customer requirements).

Applications

APM L221 Suitable for labeling on the circumference of round bottles, single and double labels can be applied, and the distance between front and back labels can be flexibly adjusted, such as the labeling of gel water bottles and food cans. It is widely used in cosmetics, food, medicine, sterilized water and other industries.

Recommend Products

T112

T113

T221

T400

Customer praise

Company Profile

Company Profile

Automatic Packaging Machinery Co., Ltd. (APM) We are the top supplier of high quality automatic screen printers, bronzing machines, pad printing machines, advertising automatic lines, UV spray lines and accessories. All machines are manufactured according to CE standards.

With more than 20 years of R&D and manufacturing experience, we are fully capable of supplying various packaging machines, such as wine bottles, glass bottles, water bottles, cups, mascara bottles, lipsticks, bottles and jars, power boxes, shampoo bottles, barrels, etc.

Exhibition pictures

FAQ

FAQ

Q:How to order from your company？

A:Please send us inquiry and online inquiry through or our official website. Then our sales will reply the quotation to you. If the customer agrees to the offer, the company will sign a sales contract. Next, the buyer fulfills the payment obligation and the dstar machine starts production to the order.

Q:Can we print samples to check the quality？

A:yes

Q:Is there operation training？

Yes, we offer free training on how to install and use the machine, and more importantly, our engineers can go overseas to repair the machine!

Q:How long warraty of the machine？

A:year+lifelong technical supports

Q：Which payment item do you accept？

A: L/C (100% irrevocable sight) or T/T (40% deposit + 60% balance before delivery)
