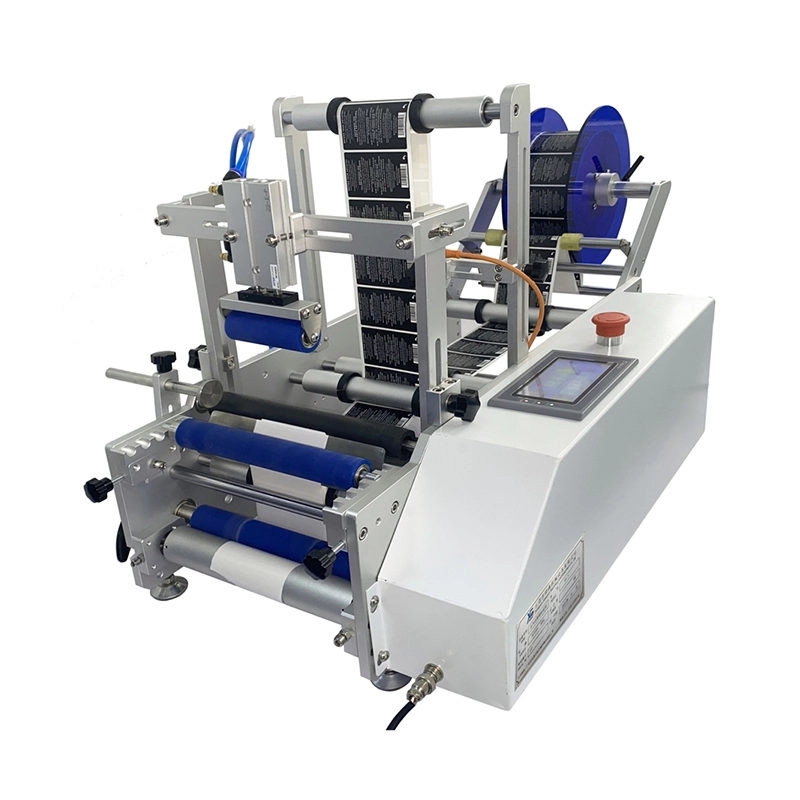

APM PRINT - APM-L220 semi automatic glass wine can beer cans round water bottle labelling machine

Thanks to the efforts of our employees including technicians and designers, Shenzhen Hejia Automatic Printing Machine Co., Ltd. is able to introduce our .APM-L220 semi automatic glass wine can beer cans water round bottle labelling machine to the public. Innovation ability is the key to the core competitiveness of products. APM PRINT has been dedicated to the design, R&D, manufacturing, and updates of Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Products Description

Labeling speed:	about 10-250P/min(Depend on bottles size)
Labeling accuracy:	±1mm(Do not include errors such as product labels)
Applicable Max product size:	L:60-400mm W:80-300mm H:≤10mm
Applicable label range:	Length 10~300mm,Width of base paper 10-120mm(Extra-large up to 195mm wide)
Table Adjustment:	X,Y ± 15mm / θ 15 °
Max label supply:	Outer diameter ≤300mm,Inner diameter 76mm
Ambient temperature/humidity:	0-50℃/15-85%
Power:	AC220V, 50HZ
Size and weight:	about 2000*1300*1500mm(l*w*h)/about 190Kg

Standard Features:

1.After the label is placed, a braking mechanism is added to prevent the label from deviating or slipping to ensure the labeling accuracy;

2.The cylinder is equipped with a rubber-covered topping mechanism, which can be customized with different sizes of rubbers according to different products. The mechanism makes the product and label fit better without labeling bubbles.

3.Automatic induction can be added, there is no need to manually step on the foot switch to label the instructions;

4.The equipment can pass the widest label size of 190mm, which is larger than the compatible size of equipment in the same industry.

5.Product diameter compatible range can be adjusted arbitrarily from 15mm to 120mm

6.Single-label positioning stickers can be used for full or half circumference, and double-label positioning stickers can be used for front and back labels. Labeling parameters (for reference only) 1.Roll self-adhesive labels with an inner core diameter of 76 mm and an outer diameter of 300 mm or less. 2.2~4mm between the label and the label, leaving 2~4mm at the edge of the label base paper.

Applications

APM-L220 Suitable for labeling cylindrical objects of various specifications, small tapered round bottles, such as mineral water bottles, xylitol, cosmetic round bottles, wine bottles,drug bottles, etc. It can realize full circumference/half circumference labeling, round circumference front and back labeling which can be adjusted arbitrarily. Widely used in food, cosmetic, chemical, pharmaceutical and other industries.
