Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

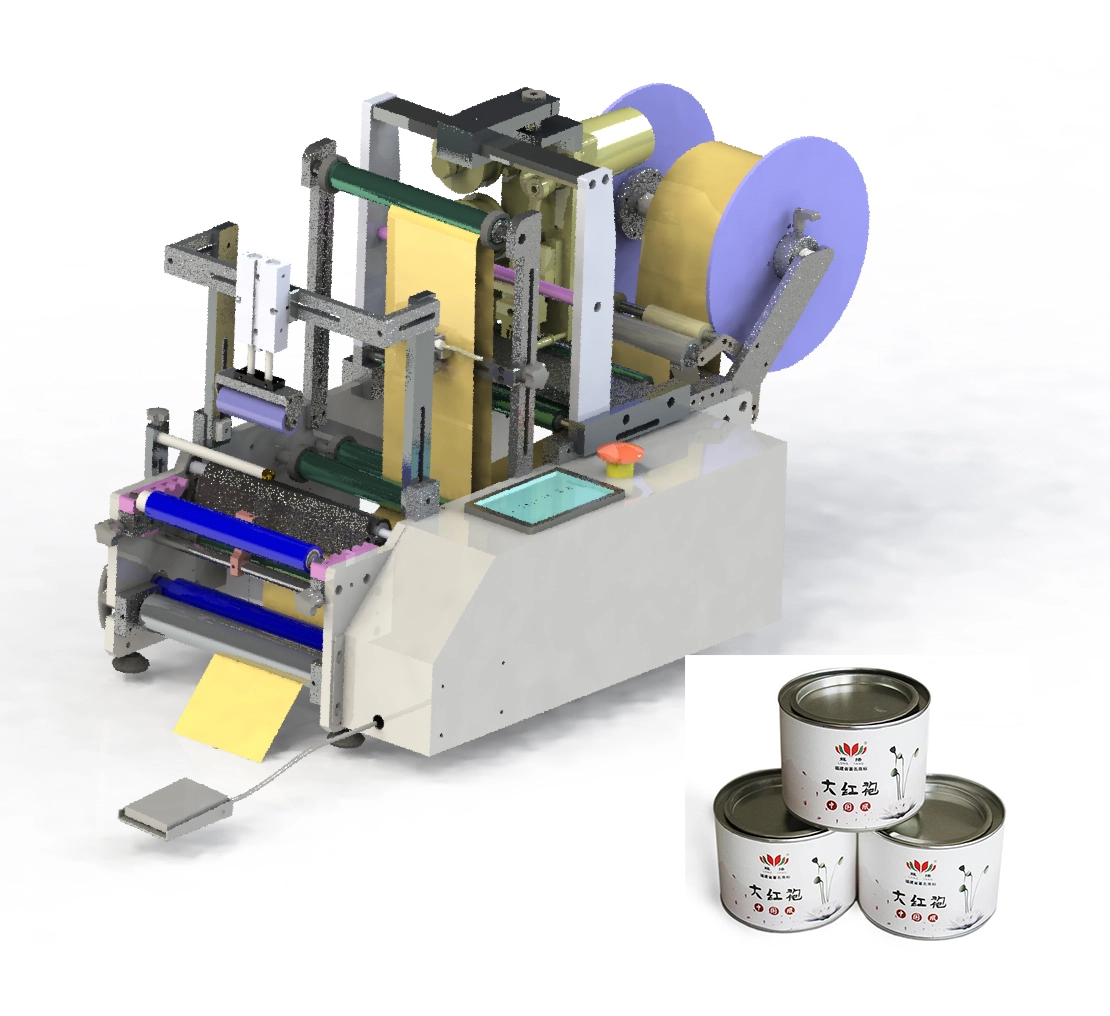

APM PRINT - APM-L220 china Semi-automatic labeling machine semi auto cylindrical bottle labeling machine labeling machine
Shenzhen Hejia Automatic Printing Machine Co., Ltd. is a popular company known for providing labeling machine to the clients. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. Shenzhen Hejia Automatic Printing Machine Co., Ltd. have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.
| Type: | LABELING MACHINE | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops |
| Showroom Location: | Canada, Turkey, United States, Spain | Condition: | New |
| Application: | Food, Beverage, Medical, Chemical, Machinery & Hardware, bottle labeling | Packaging Type: | case |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V/50HZ |
| Place of Origin: | Guangdong, China | Brand Name: | APM |
| Dimension(L*W*H): | 920*450*520mm | Weight: | 48 KG |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Machinery Capacity: | 35pcs/Min | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | PLC, Motor, Bearing, Gearbox | product shape: | flat |
| Printing speed: | 35pcs/min | Marketing Type: | New Product 2020 |
APM-L220 Suitable for labeling cylindrical objects of various specifications, small tapered round bottles, such as mineral water bottles, xylitol, cosmetic round bottles, wine bottles,drug bottles, etc. It can realize full circumference/half circumference labeling, round circumference front and back labeling which can be adjusted arbitrarily. Widely used in food, cosmetic, chemical, pharmaceutical and other industries.
Standard Features:
1.After the label is placed, a braking mechanism is added to prevent the label from deviating or slipping to ensure the labeling accuracy;
2.The cylinder is equipped with a rubber-covered topping mechanism, which can be customized with different sizes of rubbers according to different products. The mechanism makes the product and label fit better without labeling bubbles.
3.Automatic induction can be added, there is no need to manually step on the foot switch to label the instructions;
4.The equipment can pass the widest label size of 190mm, which is larger than the compatible size of equipment in the same industry.
5.Product diameter compatible range can be adjusted arbitrarily from 15mm to 120mm
6.Single-label positioning stickers can be used for full or half circumference, and double-label positioning stickers can be used for front and back labels.
Labeling parameters (for reference only)
1.Roll self-adhesive labels with an inner core diameter of 76 mm and an outer diameter of 300 mm or less.
2.2~4mm between the label and the label, leaving 2~4mm at the edge of the label base paper.
Machine Specifications:
|
Model Number: |
APM-L400 |
|
Labeling speed: |
about 35P/min(Depend on bottles size) |
|
Labeling accuracy: |
±1mm(Do not include errors such as product labels) |
| Applicable Max product size: |
15-120 mm in diameter (up to 150 mm in diameter compatible) and 30-250 mm in height. |
|
Applicable label range: |
Length 10~280mm,Width of base paper 6-190mm |
|
Table Adjustment: |
X,Y ± 15mm / θ 15 ° |
|
Max label supply: |
Outer diameter ≤300mm,Inner diameter 76mm |
|
Ambient temperature/humidity: |
0-50℃/15-85% |
|
Power: |
AC220V, 50HZ |
|
Size and weight: |
920*450*520mm(l*w*h)/about45Kg |
