Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
APM PRINT - 160-90S4 four color pad printer Semi auto pad printer
In the past months,Shenzhen Hejia Automatic Printing Machine Co., Ltd. has been devoted to serious design and innovative development of the new product. It is officially called 160-90S4 four color pad printer and releases to the market since today. Based on 160-90S4 four color pad printer properties, we have selected technology to manufacture the product after conducting multiple tests and experiments.Our product is qualified for being used in the application field(s) of Semi auto pad printer. Shenzhen Hejia Automatic Printing Machine Co., Ltd. will always adhere to the business philosophy of honesty, innovation, integrity to run our business. We believe that with the combined efforts of all our employees, we have enough skills and capabilities to overcome all obstacles and difficulties to make some achievements in the future.
| Type: | PAD PRINTER | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Showroom Location: | United States, Spain | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | PLC, Motor |
| Condition: | New | Plate Type: | Screen Printer |
| Place of Origin: | Guangdong, China | Brand Name: | APM |
| Usage: | Tube Printer | Automatic Grade: | Semi-automatic |
| Color & Page: | Multicolor | Voltage: | 220/110 V |
| Dimensions(L*W*H): | 105*85*143cm | Weight: | 190 KG |
| Warranty: | 1 Year | Key Selling Points: | pad printer |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | United States, Spain |
| After-sales Service Provided: | Online support, Video technical support | Certification: | CE certificate |

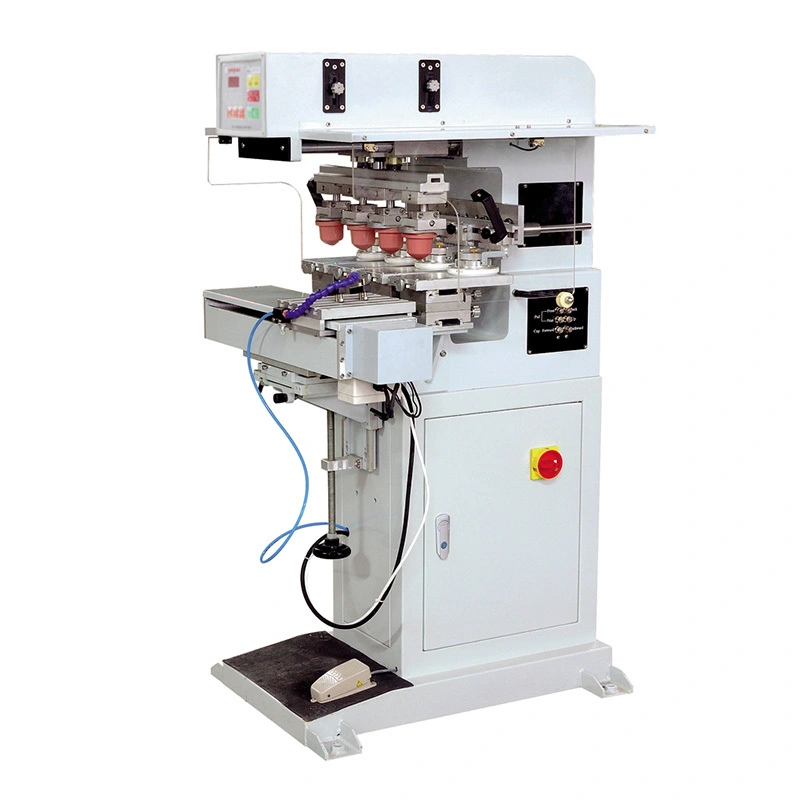

160-90S4 four color pad printer
Description:
1. Easy operation panel with LCD
2. Quick adjusting XYR base, accurate color registration
3. Easy clean ink cup, quick plate change
4. XYZR adjustable worktable
5. Motor driven shuttle, accurate color registration
6. SMC or Festo pneumatics
7. CE safety operation
Options:
1. Open ink tray
2. Auto pad cleaning
3. Hot air dryer
4. Auto flame treatment
5. Independent pads up/down
Tech-data:
|
ink cup(Diameter) |
90 mm |
|
Max. printing size(Diameter) |
88 mm |
|
Pad stroke |
160mm |
|
Cliché size |
100*200mm |
|
Max. printing speed |
800pcs/h |
|
Net weight |
150kgs |
|
Power |
220/110 V - 3A- 50-60Hz |
|
Measurement |
105*85*143cm(L*W*H) |
|
Gross weight |
190kgs |
