Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
APM PRINT - H400H/H600H hot stamping machine with hydraulic system Semi auto hot stamping machine
State-of-the-art technologies introduced and upgraded for the more efficient and stable manufacturing of the product. It functions perfectly in the application scenario(s) of Heat Press Machines. The H400H/H600H hot stamping machine with hydraulic system has the significance of taking a leap forward and injects new impetus into the development of the industry. APM PRINT has been dedicated to the design, R&D, manufacturing, and updates of Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.
| Type: | Heat Press Machine | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
| Condition: | New | Plate Type: | Letterpress |
| Place of Origin: | Guangdong, China | Brand Name: | APM |
| Model Number: | H200F | Usage: | hot stamping |
| Automatic Grade: | Semi-automatic | Color & Page: | single color |
| Voltage: | 220V | Dimensions(L*W*H): | 122*122*218CM |
| Weight: | 800 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy to Operate | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | After-sales Service Provided: | Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Application: | flat hot stamping | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | United States, Spain | Showroom Location: | United States, Spain |
| Marketing Type: | Ordinary Product | Certification: | CE Certificate |

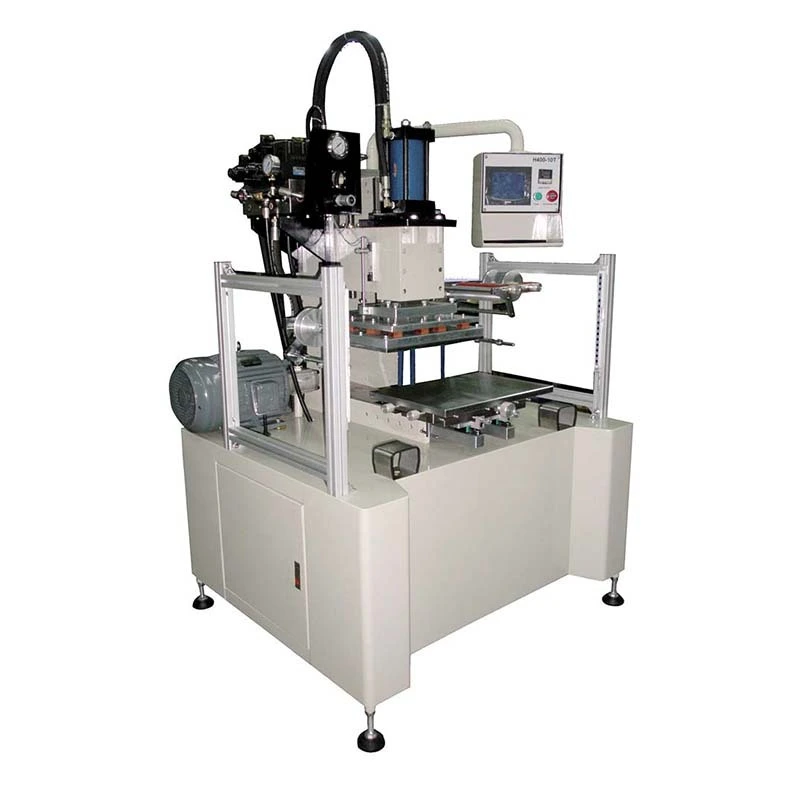

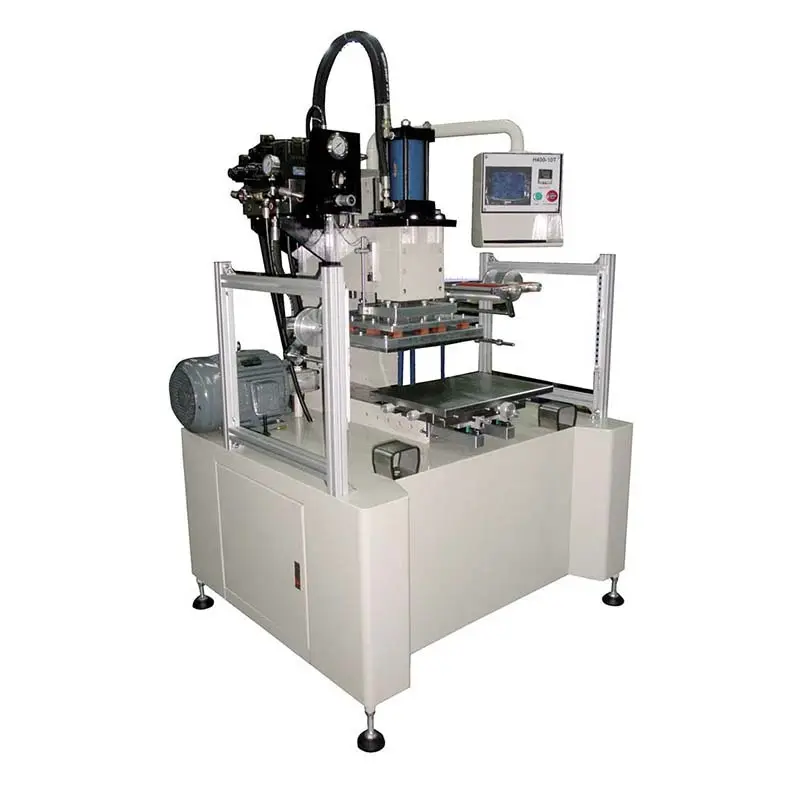

H400H/H600H hot stamping machine with hydraulic system
Description:
1. Strong pressure with hydraulic system.
2. Stamping pressure, temperature and speed adjustable.
4. XYR adjusting worktable.
5. Auto foil feeding and winding.
6. The height of stamping head can be adjusted.
7. Pressing delay time, winding delay time adjustable
8. Dual light palm buttons
9. 3-sided guarding for safety operation
10. Auto sliding in/out worktable
11. Light curtain for safety operation
12. PLC control, touch screen display
Tech-data:
Model |
H400 H |
H400 H |
H600 H |
H600 H |
|
Max stamping area |
300×400mm |
400x600mm |
||
|
Worktable Size |
350×450mm |
450x650mm |
||
|
Stamping Head Stroke |
80mm |
|||
|
Max. article Height |
250mm |
|||
|
Temperature |
Room Temperature~280℃ |
|||
|
Stamping Pressure |
5000kgf |
10000kg |
5000kgf |
10000kgf |
|
Max. Stamping Speed |
400pcs/hr |
300pcs/hr |
350pcs/hr |
250pcs/hr |
|
Air Pressure |
4~7bar |
|||
|
Power Supply |
380V 60Hz/50Hz 3 phases |
|||
|
Heating Power |
8000W |
10000W |
||
|
Weight |
600kgs |
800kgs |
900kgs |
1000kgs |
