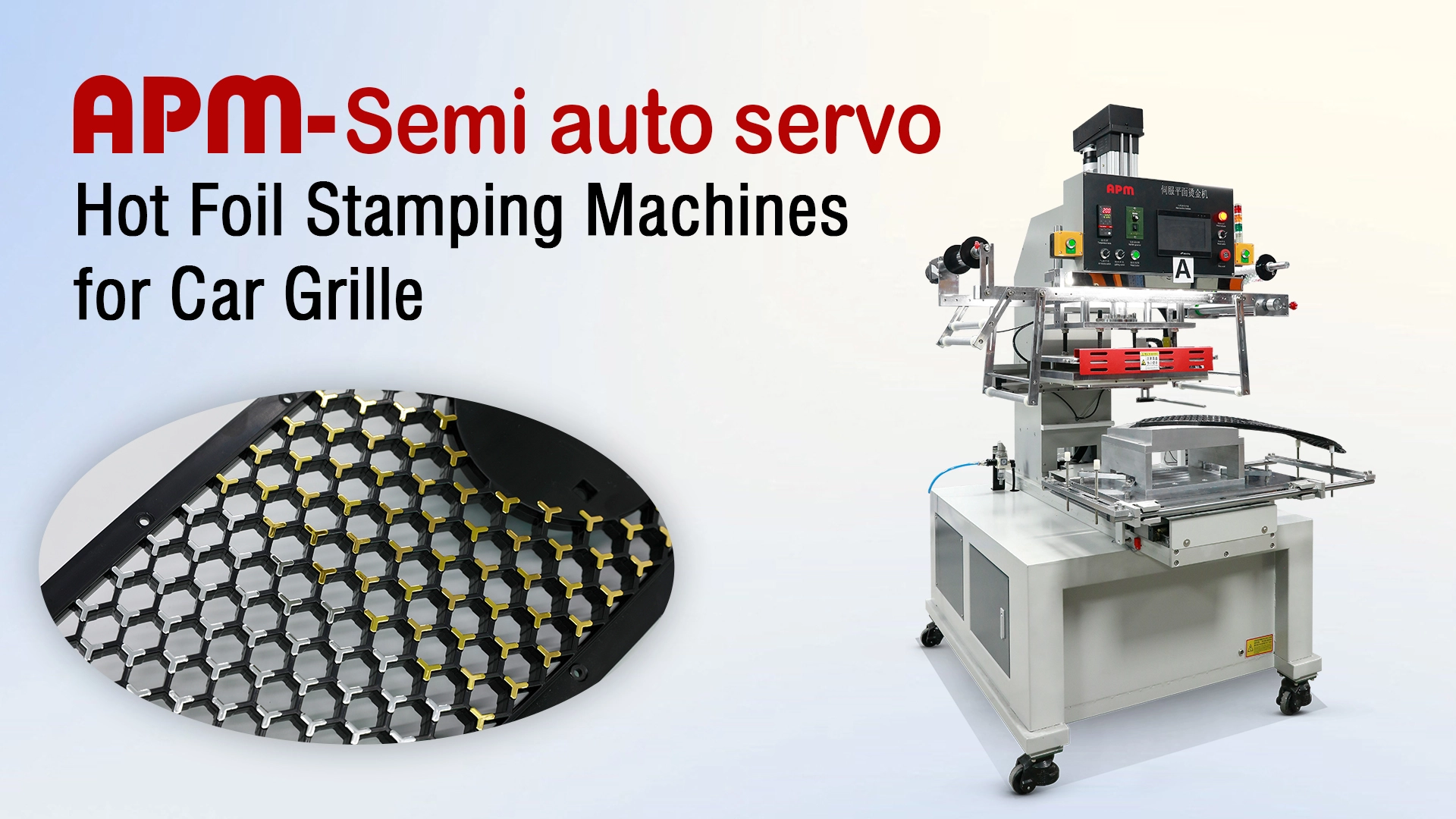

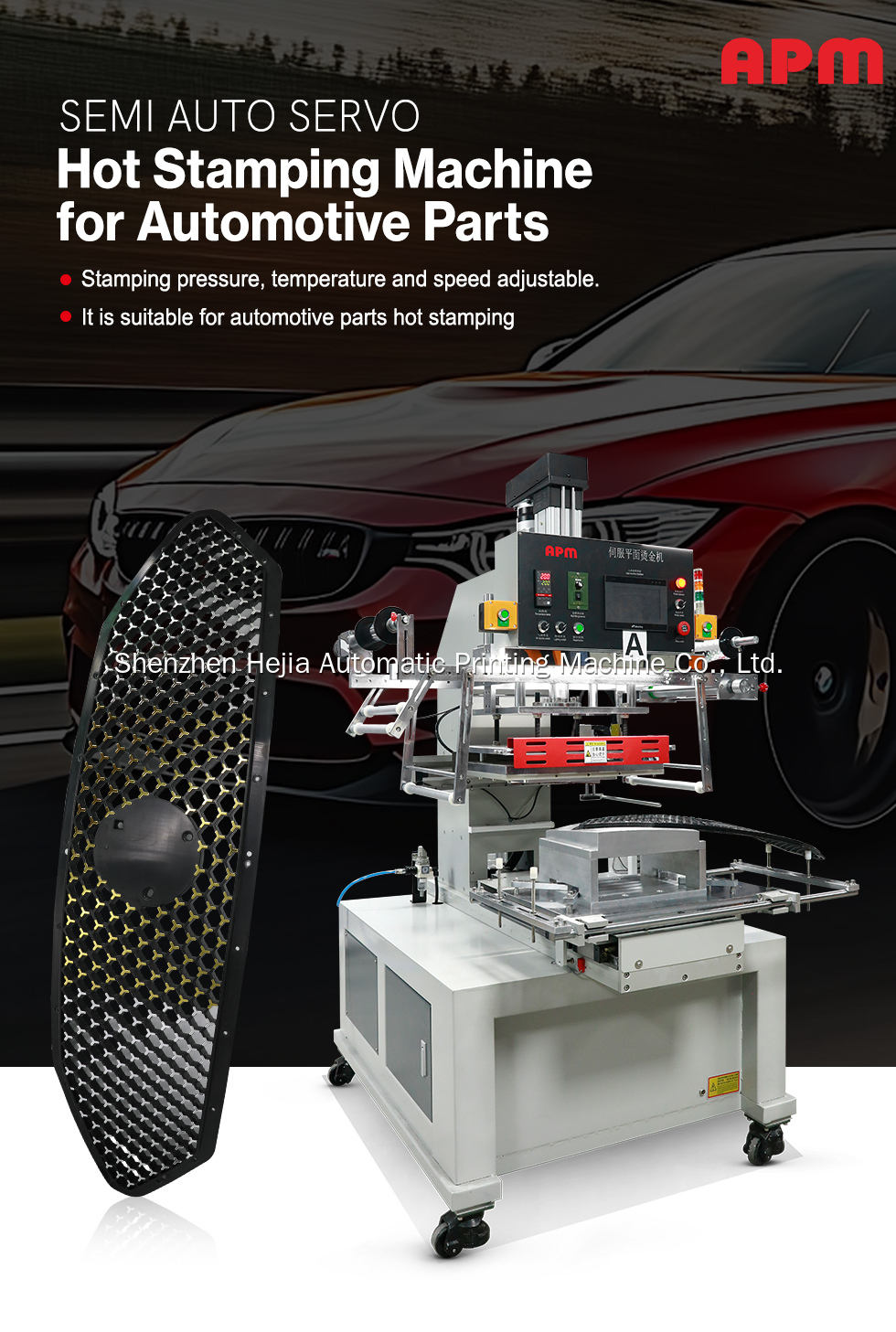

Hot stamping machine for car grille

The Semi-Auto Servo Hot Stamping Machine for Car Grilles is designed for automotive manufacturers looking for precision and efficiency in their stamping processes. This machine offers adjustable stamping pressure, temperature, and speed, ensuring consistent high-quality results. With a robust servo motor system, adjustable stamping head, and user-friendly PLC control, it meets the demanding needs of car grille production and other automotive exterior components.

1. Precise Control System

✅The machine allows precise control of stamping pressure, temperature, and speed, ensuring consistent results throughout production.

2. Servo Motor Precision

✅Vertical drive force: 1.8-2.1KW servo motor + screw electric cylinder

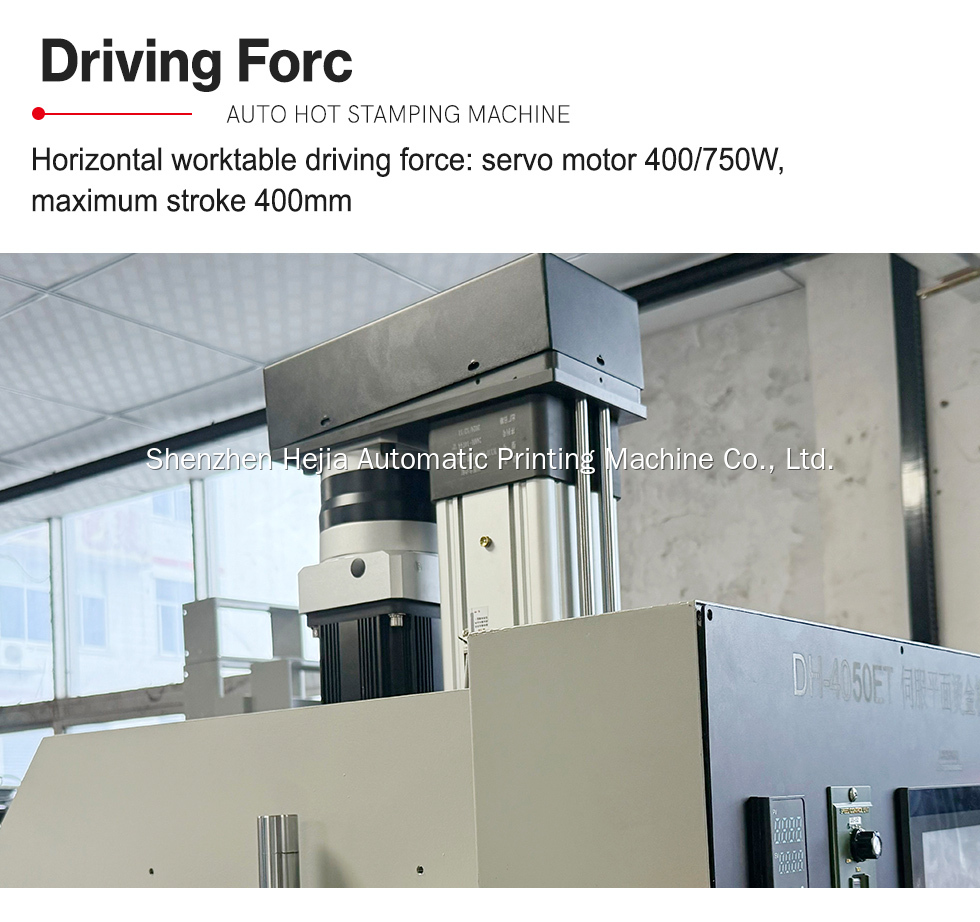

✅Horizontal worktable drive force: 400/750W servo motor

✅Maximum stroke: 400mm, offering flexibility for different workpieces

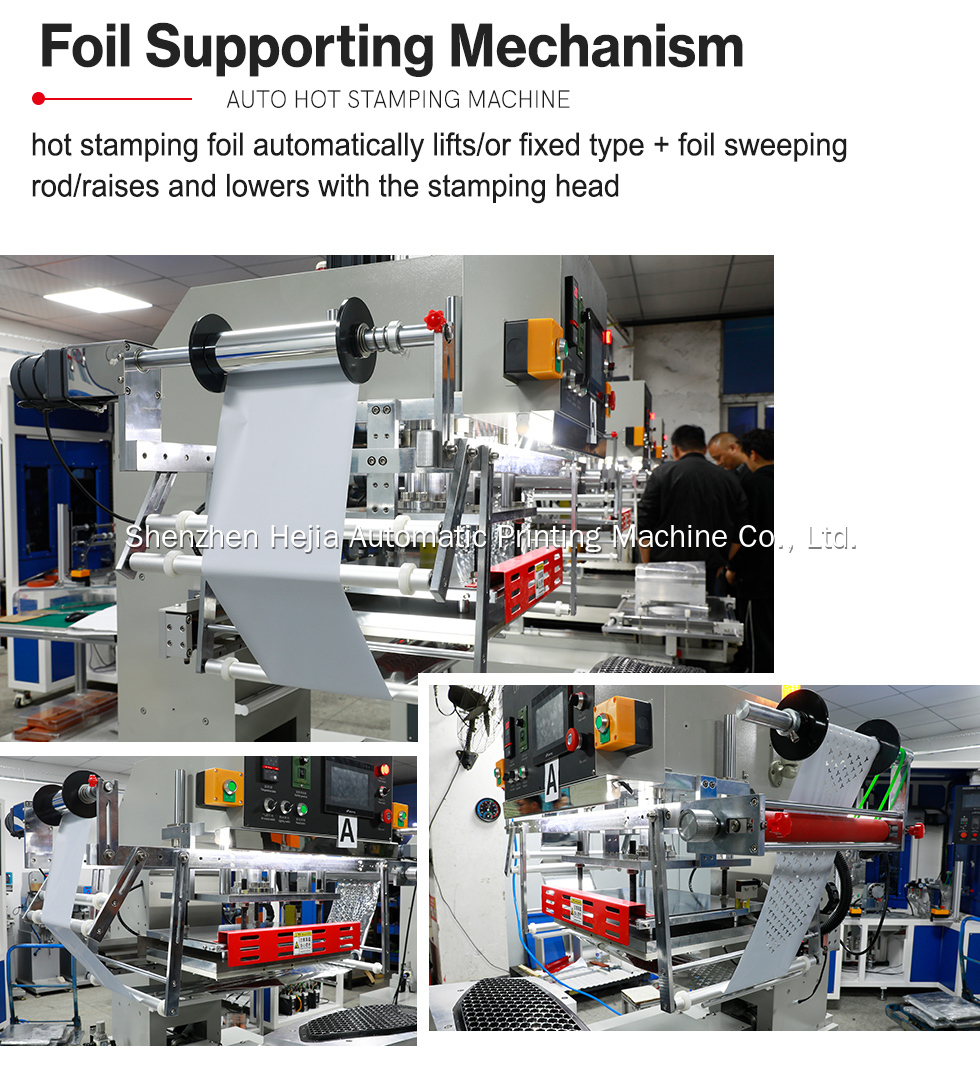

3. Efficient Foil Mechanism
✅Features an automatic foil lifting mechanism or fixed-type system with a foil sweeping rod, raising and lowering with the stamping head to optimize material usage.

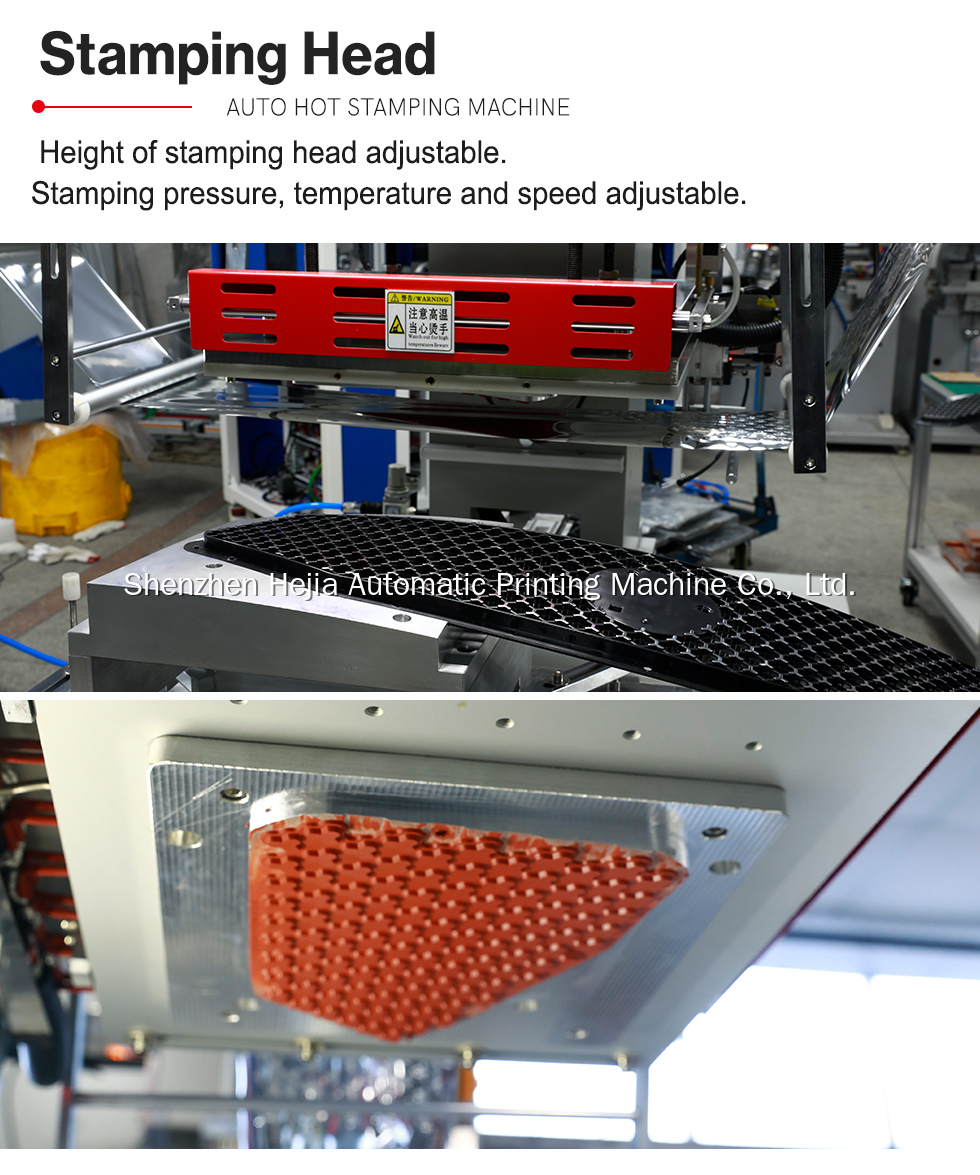

4. Adjustable Stamping Head Height
✅The stamping head height is adjustable, offering flexibility for various car grille designs and ensuring precision across different parts.

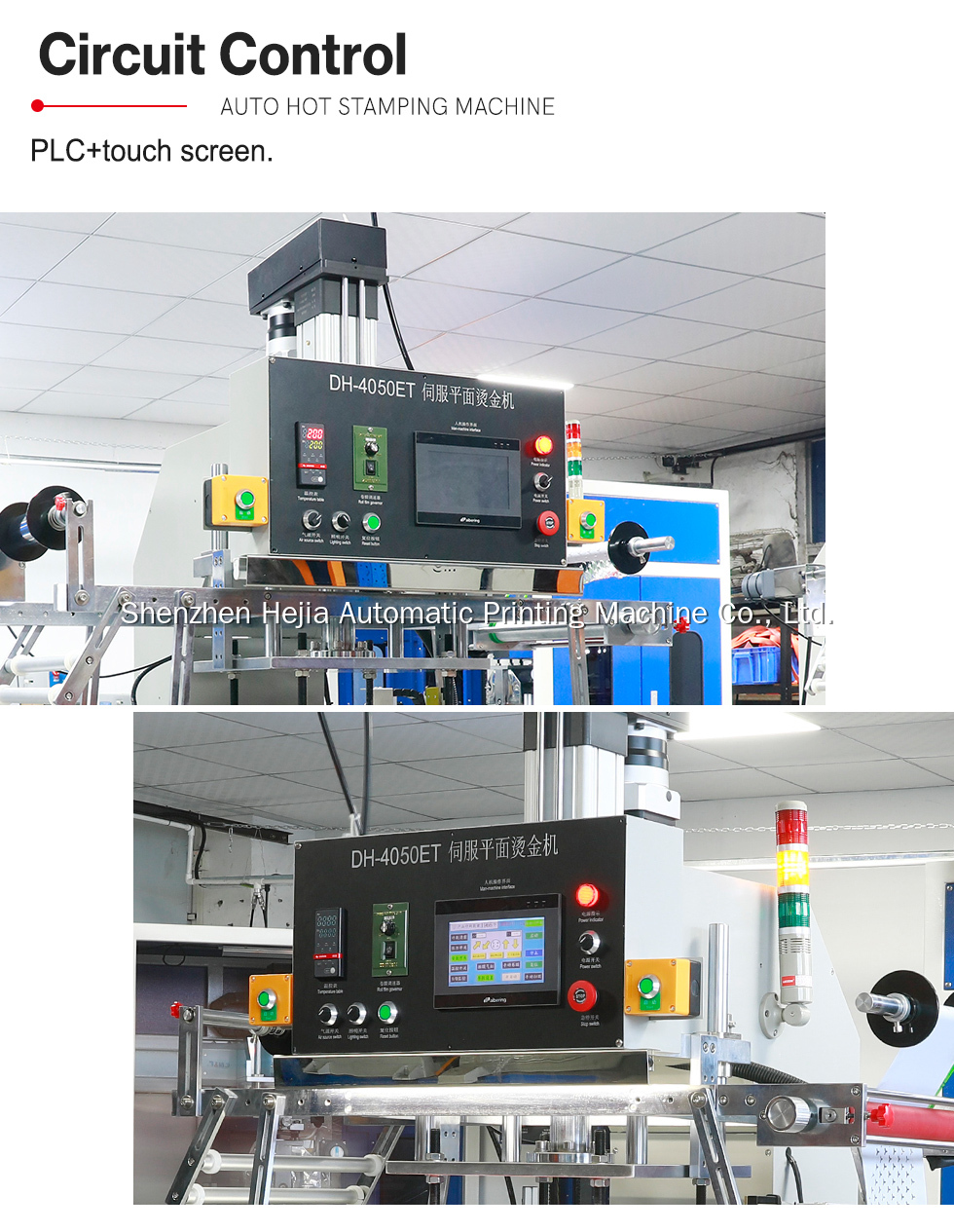

5. PLC + Touch Screen Control
✅The machine is controlled via a PLC system with a touch screen, allowing for easy setup, parameter adjustments, and real-time production monitoring.

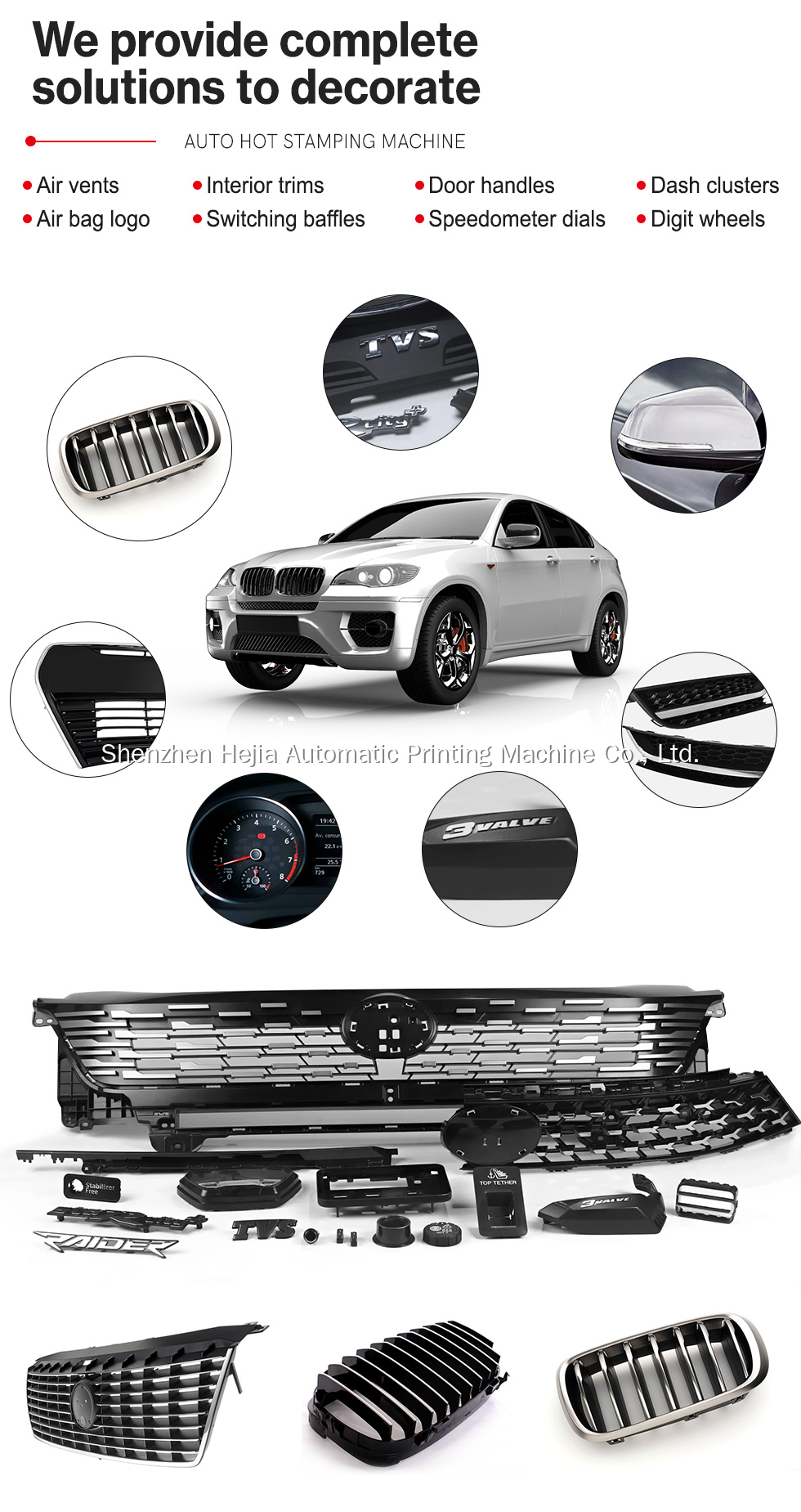

The Semi-Auto Servo Hot Stamping Machine is a versatile and efficient solution for a wide range of automotive and interior components. It is especially suitable for high-precision hot stamping applications in the following areas:

1. Air Vents: Precision stamping for automotive air vents, ensuring consistent and high-quality finishes.

2. Airbag Logos: Ideal for stamping logos on airbags, delivering a durable and clean result.

3. Interior Trims: Used for stamping decorative elements and functional parts in vehicle interior trims, enhancing both aesthetics and durability.

4. Switching Baffles: Suitable for stamping functional components like switching baffles, ensuring quality and precision.

5. Door Handles: Provides high-quality hot stamping for door handles, ensuring a sleek finish and long-lasting durability.

6. Speedometer Dials: Capable of precise stamping on speedometer dials, contributing to high readability and visual appeal.

7. Dash Clusters: Used for detailed stamping on dashboard clusters, ensuring clarity and a high-end finish for automotive interiors.

8. Digit Wheels: Perfect for stamping digit wheels with intricate designs and precise details for speedometers and other automotive displays.

Note: Car grilles generally require 3-4 hot stampings. Depending on the actual samples, if 4 stampings are needed, 4 sets of silicone plates and fixtures are required.

Delivery: 45 working days after the order is confirmed and the sample is received.

Warranty: One year.

1. How does the car grille hot stamping machine ensure precision?

The car grille hot stamping machine features advanced servo motor-driven precision and an adjustable stamping head height, allowing for highly accurate and consistent results in stamping automotive components like grilles and door handles.

2. Can the Semi-Auto Servo Hot Stamping Machine for Car Grilles handle high-volume production?
Yes, the Semi-Auto Servo Hot Stamping Machine for Car Grilles is built for high-efficiency, high-volume production with minimal downtime, ensuring a smooth and continuous manufacturing process for automotive parts like speedometer dials and digit wheels.

3. What is the maximum stamping pressure of the car grille hot stamping machine?

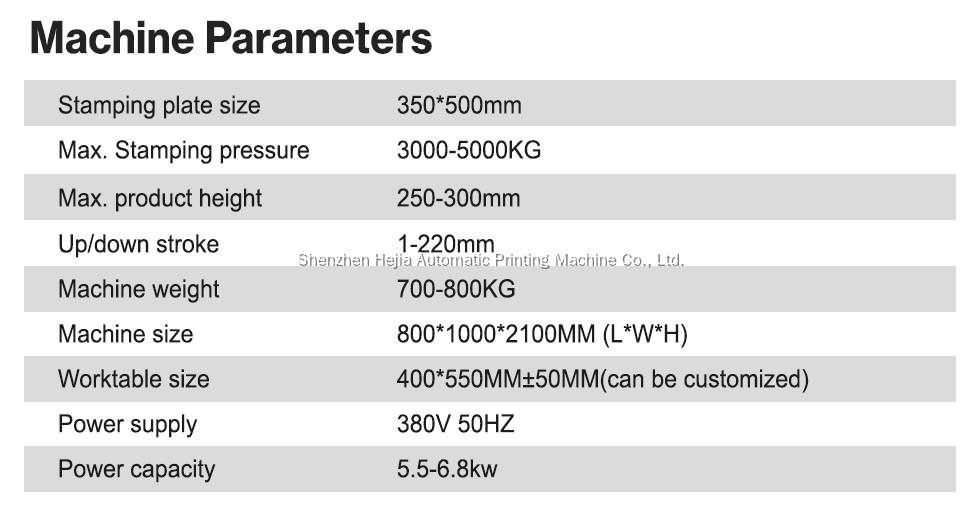

The car grille hot stamping machine offers a maximum stamping pressure of 3000-5000 KG, ensuring robust and reliable stamping results for various automotive components.

4. Is the Semi-Auto Servo Hot Stamping Machine for Car Grilles easy to operate?
Yes, the Semi-Auto Servo Hot Stamping Machine for Car Grilles is equipped with a PLC and touch-screen control system, making it easy to adjust settings and monitor the stamping process, ensuring user-friendly operation even in complex automotive applications.

5. How many hot stampings does the car grille hot stamping machine need for a car grille?
Car grilles generally require 3-4 hot stampings. If four stamps are needed, four sets of silicone plates and fixtures will be required, ensuring the best results with the car grille hot stamping machine.

6. What is the warranty for the Semi-Auto Servo Hot Stamping Machine for Car Grilles?
The Semi-Auto Servo Hot Stamping Machine for Car Grilles comes with a one-year warranty, covering manufacturing defects and ensuring the long-term reliability of the machine in production environments.

7. Can the car grille hot stamping machine handle custom-sized parts?
Yes, the car grille hot stamping machine is customizable, with adjustable worktable sizes and an adaptable stamping head height to accommodate different sizes of automotive parts like switching baffles and airbag logos.
