Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

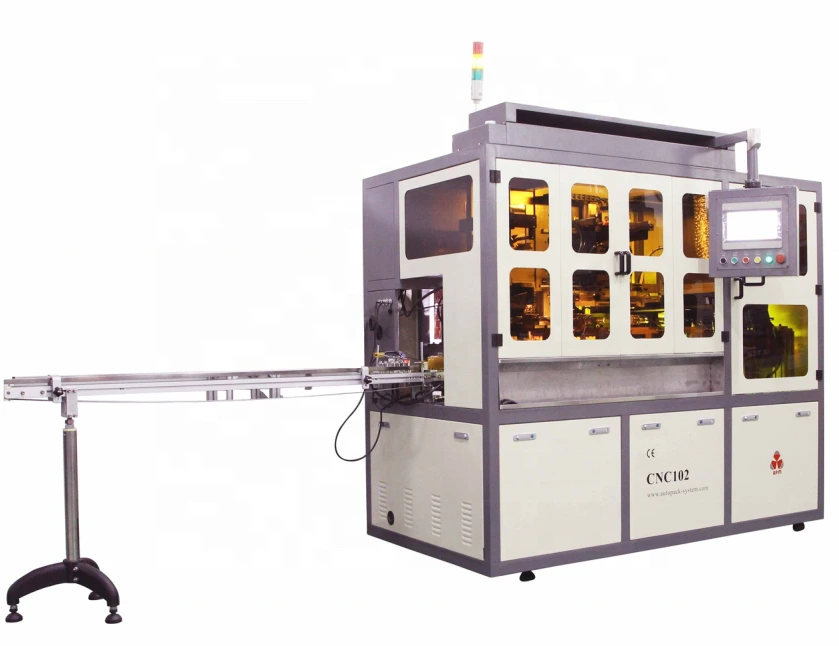

APM PRINT - CNC102 Best Sale All Servo Driven Glass Wine Bottle Screen Printer Screen Print + Hot Stamp
Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture CNC102 Best Sale All Servo Driven Glass Wine Bottle Screen Printer. Screen Printers has passed a series of international quality assurance system and product safety certification . Shenzhen Hejia Automatic Printing Machine Co., Ltd. will continually adopt positive marketing strategies to develop new markets, therefore establishing a more sound sales network. Moreover, we will reinforce the scientific research and try hard to gather more talents to focus on the research and development of new products. Our wish is to become one of the most competitive enterprises in the market.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | glass bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380V | Dimensions(L*W*H): | 2200x1320x1800mm |
| Weight: | 800 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Product name: | Automatic Loading System Glass Mugs Automatic Servo Printer |
| Application: | bottle printer | Printing color: | 1 color |
Tech-data
| Product Name | Automatic Loading System Glass Mugs Automatic Servo Printer |
| speed | 1800-2400pcs/H |
| power | 380V, 3P 50/60Hz |
| Air supply | 6-8Bar |
| Round Container | |
| Printing Dia. | 20-100mm |
| Printing Length | 30-180mm |
| Square/Irregular container | |
| Printing Width | 20-100mm |
| Printing Length | 30-180mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
Automatic loading system with multi axis servo robot.
Servo driven transfer system.
Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
Multi sides printing in one process.
LED UV or electric UV system optional
Super quick and easy change over from one product to another.
All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
Automatic unloading with servo robot.
Safety operation with CE.
Repeat print to be multi colors.
Options
Additional module up to 10 units, to be multi colors production line.
Flame Plasma pre-treatment system for best adhesion on glass
Camera vision system, for cylindrical products without registration point.
