With strong R&D strength and production capabilities, APM PRINT now has become a professional manufacturer and reliable supplier in the industry. All our products including semi automatic screen printing machine cost are manufactured based on the strict quality management system and international standards. semi automatic screen printing machine cost We have been investing a lot in the product R&D, which turns out to be effective that we have developed semi automatic screen printing machine cost. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The purpose of this product is to make work easier and relieve worker fatigue. It excels in improving overall efficiency and labor productivity.
It is the utilization of technology that contributes to the high-efficiency manufacturing of the product. In the field(s) of Screen Printers , it is highly accepted and widely used. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Screen Printers. To meet various needs of customers, Shenzhen Hejia Automatic Printing Machine Co., Ltd. supports customized Bottle Series Flat Convexity Screen Printing Machinery For Glass Plastic Paper Cup.
Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
Condition: | New | Place of Origin: | China |
Brand Name: | APM | Usage: | bottle printer |
Automatic Grade: | Semi-automatic | Color & Page: | single color |
Voltage: | 110V/220V 50/60Hz | Dimensions(L*W*H): | 1000*950*1400mm |
Weight: | 150 KG | Certification: | CE |
Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
Key Selling Points: | Easy to Operate | Machinery Test Report: | Provided |
Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
Core Components: | Motor, Gear, PLC | Application: | printing plastic/glass bottle |
Printing color: | 1 Colors | After Warranty Service: | Video technical support |
Local Service Location: | United States |

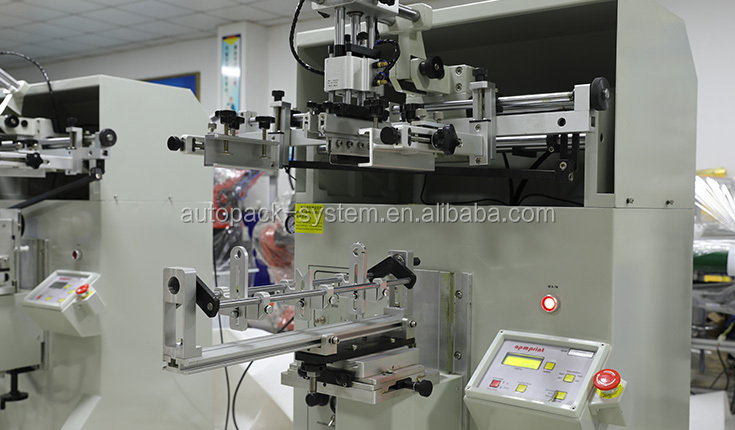

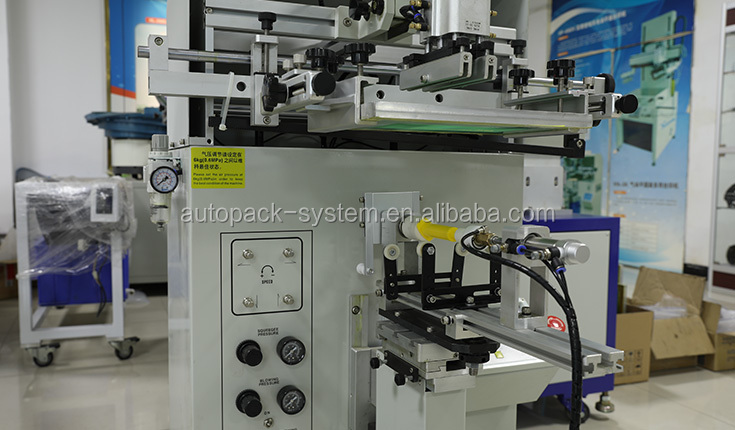

S350 semi-automatic bottle and container screen printer is a well designed and versatile machine.

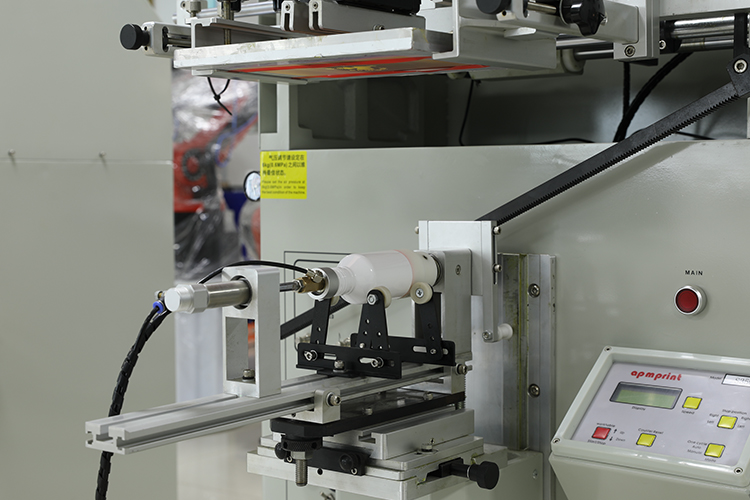

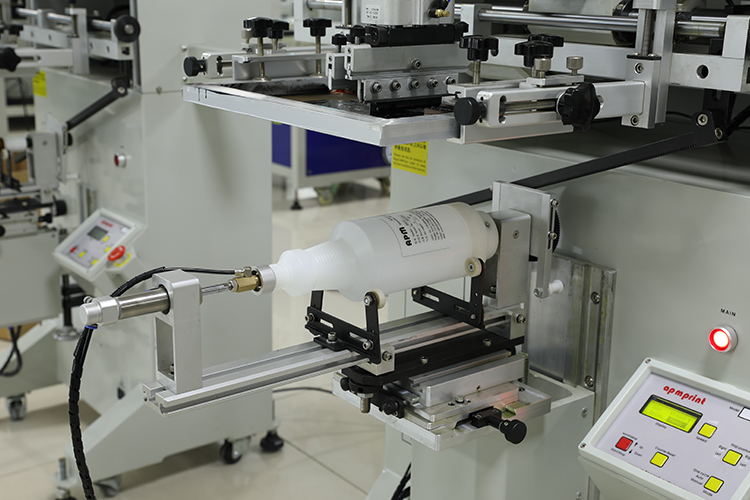

The S350 can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.
General Description:
1. Easy operation and programmable panel
2. XYR worktable adjustable
3. T-slot, flat with vacuum, round and oval functions available and easy conversion.
4. Printing stroke and speed adjustable.
5. Easy fixture adjustment for conical printing
6. CE standard machines
Tech-data
Model Number: |
APM-S350 |
Drive System: |
Pneumatic |
Frame Up/Down Stroke: |
100mm (3.94") |
Maximum Print Area Round: |
110mm (4.33") Ø 340mm (13.39") Arc Length 200 x 320mm (7.87" x 12.60") |
Working Table Size: |
250 x 350mm (9.84" x 13.78") |
Table Adjustment: |
X,Y ± 15mm / θ 15 ° |
Maximum Screen Frame Size: |
380 x 580mm (14.96" x 22.83") |
Screen Frame Thickness: |
18 - 25mm (.71" - .98") |
Squeegee Angle: |
0-15° |
Printing Cycle Speed: |
1,200 cycles/hr |
Squeegee Speed: |
20/min |
Squeegee Pressure: |
2 - 4 Bar |
Electric Source: |
110V/220V 50-60Hz 50W |
Air Pressure Input: |
80 psi |
Air Consumption: |
0.7 L/cycle |
Machine Weight: |
150 kg (330.69 lbs) |
Machine Weight (including crating): |
230 kg (507.06 lbs) |
Dimensions (L x W x H): |
1,000 x 950 x 1,400mm (39.37" x 37.4" x 55.12") |
Crate Dimensions: |
1,080 x 1,010 x 1,520mm (42.52" x 39.76" x 59.84") |
