Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color bottle screen printing machines.

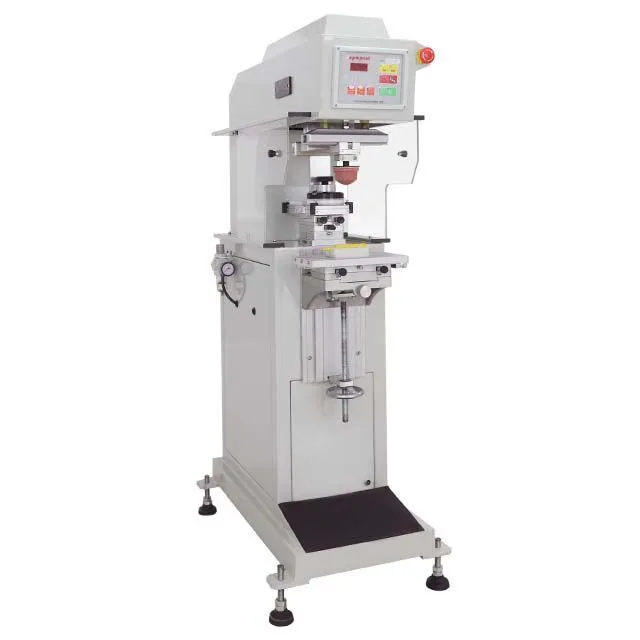

160-90 Single Color Pad Printer
160-90 single color screen printer
Features:
1.Microprocessor control system, electro-pneumatic control;
2.160mm standard stroke, open ink well design;
3.Suitable for single color medium size image printing;
4.Independent adjustment of up and down ,forward and rear stroke;5.
5.Ink is applied by ink roller that is easy to install and clean;
6.Independent X, Y printing pad adjustment;
7.Ink well base with X, Y, Z adjustment;
8.Worktable X, Y adjustment;
9.Heavy-duty construction with cabinet;
10.Stable, durable and fine workmanship;
11.Installed safety guard and emergency stop button;
12.Complying with CE safety standards.
Tech data:
| Item | 160-90 |
| Plate size | 150*100 mm |
| Max. printing area | 130*80 mm |
| Pad stroke | 125 mm |
| Printing speed | 1800 cycles/h |
| Printing height | 200 mm |
| Working stroke | 160 mm |
| Air consumption | 5 bar |
| Power | 220/110 V, 50/60 Hz, 40W |
| Machine dimension | 1050*610*1600 mm |
| Packing dimension | 165 kgs |
