Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

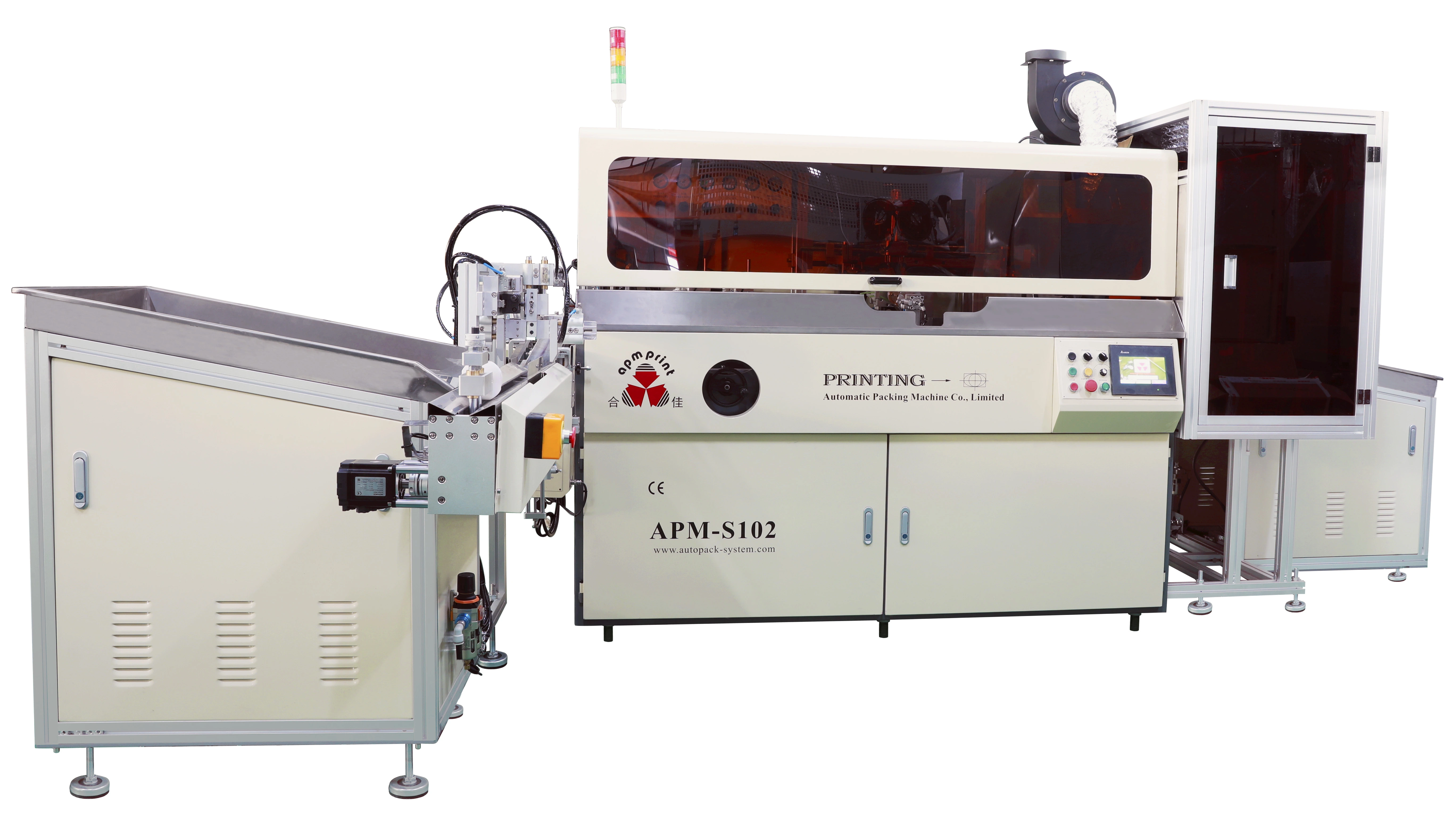

Auto Screen printer APM-S102C（plastics cup printer)
for Plastic cups
Application:
Plastic cups
General Description:
1.Automatic loading belt
2.Auto flame treatment
3.Perfect transmission system. It passes over the cups fast and smooth.
4.Quick and easy change over from one product to another.
5.Auto electric UV drying or LED UV drying.
6.Reliable PLC control with touch screen display
7.Automatic unloading
8.CE standard
Procedure:
Auto loading onto belt——flame treatment——printing——LED UV drying or Electric UV drying—— Auto unloading
Tech-data:
| Parameter \ Item | S102 1-8 color automatic screen printer |
| Machine Dimension: | |
Printing unit | 1900x1200x1600mm |
Feeding unit (optional) | 3050x1300x1500mm |
Unloading unit (optional) | 1800x450x750mm |
Power | 380V 3 phases 50/60Hz 6.5kw |
Air consumption | 5-7 bars |
Cups | |
Printing Diameter | 25--100mm |
Printing Length | 50-280mm |
Printing speed | 2100-2700pcs/hr (normal speed: 2400pcs/h) |
Samples:
