Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color bottle screen printing machines.

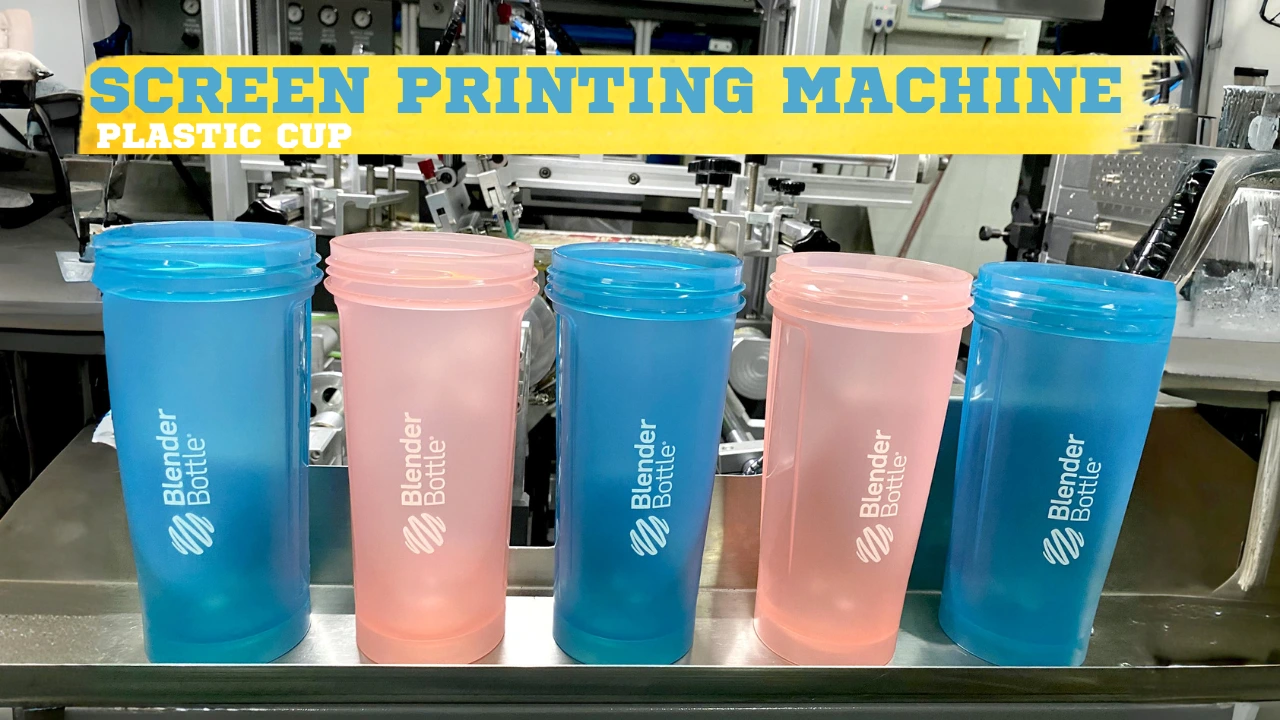

APM PRINT-S102 Automatic multiple colors screen printing machine for printing plastic cups bottles
S102 fully automatic screen printing machine for sale, can print on cylindrical/flat cups and bottles. There should be registration points on the bottle. S102 automatic screen printer is equipped with an automatic pre-flame treatment and printing process that delivers a high-quality print output every time. Additionally, the S102 automatic screen printing machine features a UV/LED drying mechanism that ensures a quick and efficient drying process, saving time and increasing productivity.
The APM-S102 automatic screen printing machine is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Tube Printer, bottle printer, cup printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60HZ | Dimensions(L*W*H): | 2500x1420x1700mm |
| Weight: | 1000 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Easy to Operate | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC, Engine | Application: | Printing Bottle |
| Printing color: | 1~8 color | Printing speed: | 4000pcs/H |
| Max printing size: | dia.100mm | Drying system: | UV /LED drying system |
Parameter/Item | APM-S102 |
Round container | |
Printing diameter | 20-100mm |
| Printing length | 20-300mm |
| Max.printing speed | 3000-4000pcs/h |
| Oval container | |
| Printing width | 25-120mm |
| Printing length | 25-300mm |
| Max.printing speed | 3000-5000pcs/h |
| Square container | |
| Printing length | 100-200mm |
| Printing width | 40-100mm |
| Max.printing speed | 3000-4000pcs/h |
| Machine dimension | 1908*1000*1500mm |
| Power | 380V,3P,50/60Hz |
| Air supply | 5-7bar |
S102 automatic screen printing machine working process:
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
General Description:
1. Automatic 1-8 color screen printing line, each unit can be separated or connected;
2. Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
3. Auto flame treatment;
4. Perfect transmission system. It passes over the bottles fast and smooth;
5. Automatic 180 degree rotation for oval and square bottles;
6. Quick and easy change over from one product to another;
7. LED UV curing system with longer life time and energy saving,electric UV system optional;
8. Reliable PLC control with touch screen display;
9. Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
10. Automatic unloading.
11. CE standard
