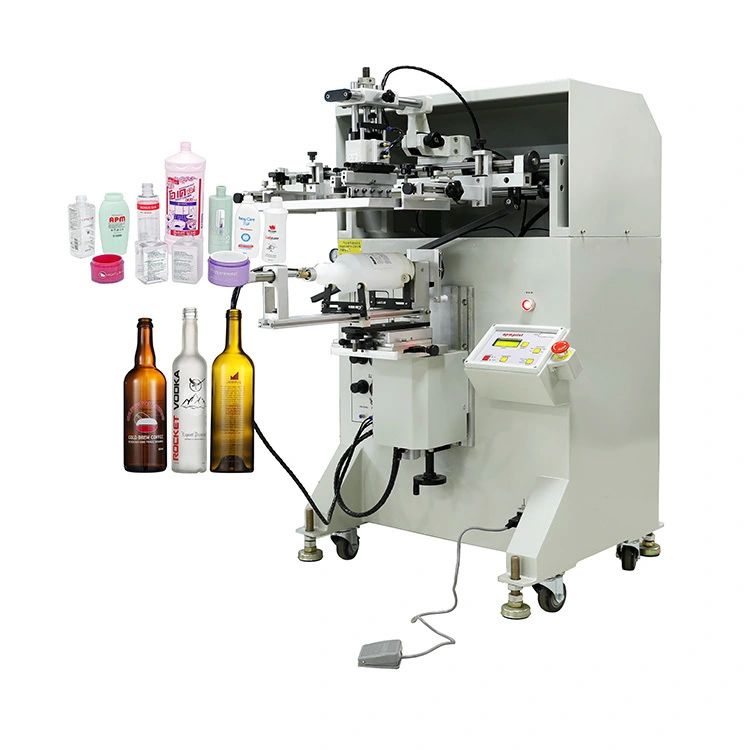

APM PRINT - Semi automatic screen printing machine for plastic cup plastic bottle glass bottle Semi auto screen printer

How does cup screen printing machine work?

The cup screen printing machine is a sophisticated piece of equipment designed to efficiently transfer ink onto cylindrical objects such as cups. The process begins with preparing the screen, which is coated with a photosensitive emulsion and exposed to ultraviolet light to create the desired image. Next, the cup is placed on a rotating fixture that allows for smooth and precise movement during printing. Ink is then spread across the screen using a squeegee, applying just the right amount of pressure to ensure even coverage without smudging. As the cup rotates beneath the screen, the ink passes through openings in the stencil and is transferred onto its surface. This method allows for high-quality prints with vibrant colors and fine details, making it ideal for customizing promotional items or creating personalized designs. Overall, the plastic cup screen printing machine combines precision engineering with advanced technology to deliver professional results every time.

What are the benefits of cup screen printing machine?

Cup screen printing machines offer a multitude of benefits for businesses looking to produce high-quality, customizable products efficiently. One key advantage is the ability to print on curved surfaces with precision and accuracy, making them ideal for creating branded merchandise such as cups, mugs, and bottles. This versatility allows companies to expand their product offerings and cater to a wider range of customer preferences. Additionally, cup screen printing machines are capable of producing vibrant colors and intricate designs that can withstand repeated use and washing without fading or peeling. This durability ensures that the finished products maintain their visual appeal over time, enhancing brand visibility and recognition. Furthermore, these pet bottle printing machine are easy to operate and require minimal maintenance, reducing downtime and increasing productivity in the production process. Overall, investing in a cup screen printing machine can significantly boost a business's profitability by streamlining operations, improving product quality, and expanding market reach.

As a screen printing machine company, Shenzhen Hejia Automatic Printing Machine Co., Ltd. relying on years of technical accumulation and industry experience, organically combining traditional craftsmanship with modern technology, successfully developed Semi automatic screen printing machine for plastic cup plastic bottle glass bottle. The use of in Semi automatic screen printing machine for plastic cup plastic bottle glass bottle manufacturing has allowed us for more efficient use of resources and personnel.The product is highly recognized in the application field(s) of Screen Printers. Compared with the traditional ones, it better meets the market demands.

Products Description

Machine model	S250	S350	S650(round,oval)	S1000(round,oval)
Max. printing size	150*220mm(Φ75mm)	250*320mm(Φ110mm)	200*630mm(Φ200mm)	300*1000mm(Φ300mm)
Speed(pcs/h)	1200	1100	900	700
Weight	135kgs	150kgs	170kgs	260kgs
Machine size	950*800*1250mm	1030*850*1280mm	1150*880*1350mm	1650*1300*1400mm
Power supply	110/220V,50/60hz,40W	110/220V,50/60HZ,40W	110/220V,50/60HZ,50W	110/220V,50/60HZ,50W

General Description:

1. Easy operation and programmable panel 2. XYR worktable adjustable 3. T-slot, flat with vacuum, round and oval functions available and easy conversion. 4. Printing stroke and speed adjustable. 5. Easy fixture adjustment for conical printing 6. CE standard machines

Applications

Application:

Cylindrical/oval/square plastic/glass bottles with UV ink or solvent ink printing.Printing objects such as bottles, cups, cans, bath bottles, shampoo bottles, cosmetic bottles, etc

square plastic

cup

cosmetic bottle

bottle

cosmetic pen

Shower Gel

Recommend Products

S102

S104

S103

S106

Customer praise

Packing & Shipping

Company Profile

Company Profile

Automatic Packaging Machinery Co., Ltd. (APM) We are the top supplier of high quality automatic screen printers, bronzing machines, pad printing machines, advertising automatic lines, UV spray lines and accessories. All bottle printing machines are manufactured according to CE standards.

With more than 20 years of R&D and manufacturing experience, we are fully capable of supplying various packaging machines, such as wine bottles, glass bottles, water bottles, cups, mascara bottles, lipsticks, bottles and jars, power boxes, shampoo bottles, barrels, etc.

Exhibition pictures

FAQ

FAQ

Q:How to order from your company？

A:Please send us inquiry and online inquiry through or our official website. Then our sales will reply the quotation to you. If the customer agrees to the offer, the company will sign a sales contract. Next, the buyer fulfills the payment obligation and the dstar machine starts production to the order.

Q:Can we print samples to check the quality？

A:yes

Q:Is there operation training？

Yes, we offer free training on how to install and use the machine, and more importantly, our engineers can go overseas to repair the machine!

Q:How long warraty of the bottle screen printing machine？

A:year+lifelong technical supports

Q：Which payment item do you accept？

A: L/C (100% irrevocable sight) or T/T (40% deposit + 60% balance before delivery)
