Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
APM PRINT - Cheap Price Semi Automatic Bottles Silk Screen Printing Machine Perfume Bottles Screen Printer For Sale Semi auto screen printer
Always insist on taking the technology as the first productivity to improve our R&D strength, Shenzhen Hejia Automatic Printing Machine Co., Ltd. has successfully developed Cheap Price Semi Automatic Bottles Silk Screen Printing Machine Perfume Bottles Screen Printer For Sale. The measured data indicates that meets the market requirements. In the future,Shenzhen Hejia Automatic Printing Machine Co., Ltd. will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer, bottle printer |
| Automatic Grade: | Semi-automatic | Color & Page: | single color |
| Voltage: | 110V/220V 50/60Hz | Dimensions(L*W*H): | 1000*950*1400mm |
| Weight: | 150 KG | Certification: | CE |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Key Selling Points: | Easy to Operate | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox | Application: | printing plastic/glass bottle |
| Printing color: | 1 Colors | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | Canada, United States, Spain | Showroom Location: | Canada, United States, Spain |
| Marketing Type: | Hot Product 2019 |

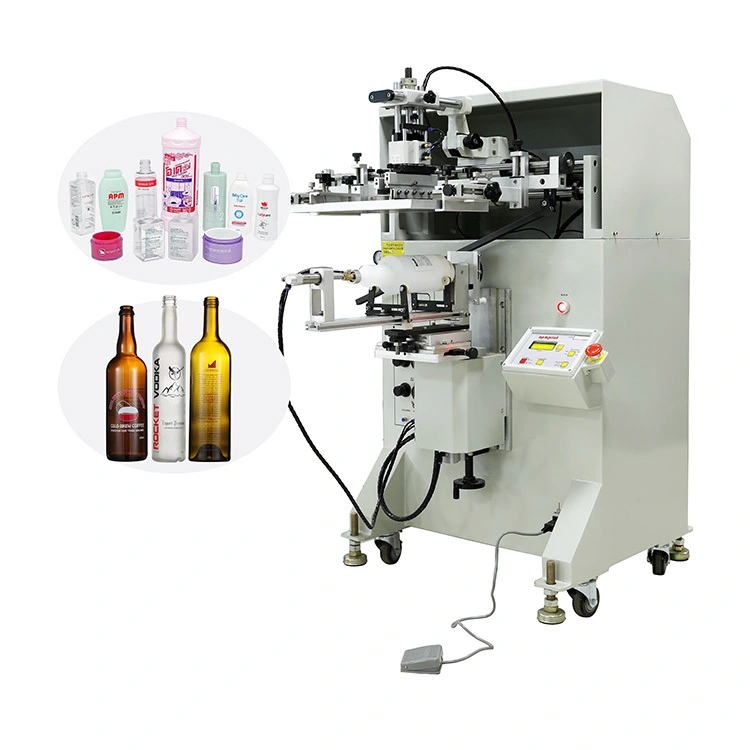

S250 semi-automatic bottle and container screen printer is a well designed and versatile machine.
Application:
Cylindrical/oval/square plastic/glass bottles with UV ink or solvent ink printing.
Printing objects such as bottles, cups, cans, bath bottles, shampoo bottles, cosmetic bottles, etc.
Standard Features:
1.Pneumatic controlled with shock absorbers
2. Microprocessor controlled - PCB
3.Vertical part lift with height adjustment
4.Print stroke controlled with rodless cylinder
5.X/Y/R positioning ware-mounting table
6.Linear ball bearings on hardened shafts
7.Squeegee tilt, skew, and height adjustable
8.Screen frame angle & tilt adjustable
9.Synchronized bottle inflation system with regulator
10.Regulated squeegee pressure with pressure gauge
11. Floor levelers & casters
12.Foot switch controlled
Tech-data
|
Model Number: |
APM-S250 |
|
Drive System: |
Pneumatic |
|
Frame Up/Down Stroke: |
100mm (3.94") |
|
Maximum Print Area Round: |
110mm (4.33") Ø 340mm (13.39") Arc Length 200 x 320mm (7.87" x 12.60") |
|
Working Table Size: |
250 x 350mm (9.84" x 13.78") |
|
Table Adjustment: |
X,Y ± 15mm / θ 15 ° |
|
Maximum Screen Frame Size: |
380 x 580mm (14.96" x 22.83") |
|
Screen Frame Thickness: |
18 - 25mm (.71" - .98") |
|
Squeegee Angle: |
0-15° |
|
Printing Cycle Speed: |
1,200 cycles/hr |
|
Squeegee Speed: |
20/min |
|
Squeegee Pressure: |
2 - 4 Bar |
|
Electric Source: |
110V/220V 50-60Hz 50W |
|
Air Pressure Input: |
80 psi |
|
Air Consumption: |
0.7 L/cycle |
|
Machine Weight: |
150 kg (330.69 lbs) |
|
Machine Weight (including crating): |
230 kg (507.06 lbs) |
|
Dimensions (L x W x H): |
1,000 x 950 x 1,400mm (39.37" x 37.4" x 55.12") |
|
Crate Dimensions: |
1,080 x 1,010 x 1,520mm (42.52" x 39.76" x 59.84") |
