Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

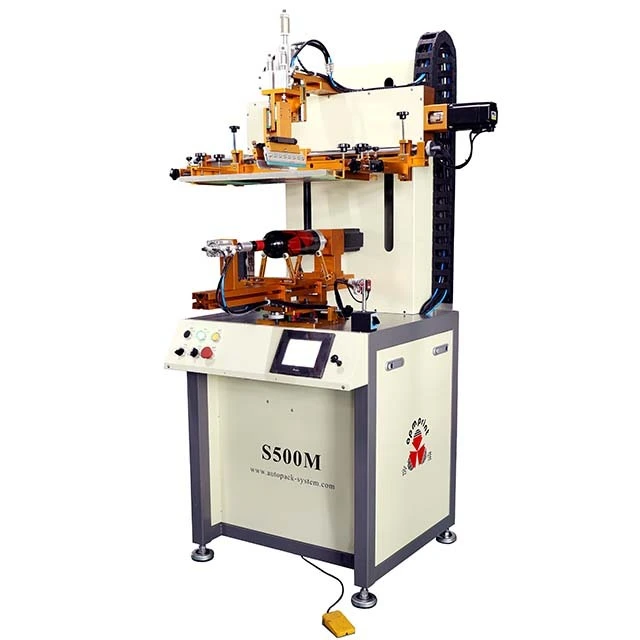

APM PRINT - S500M semi auto single color servo screen printer Semi auto screen printer
People with different backgrounds purchase S500M semi auto single color servo screen printer no matter the budget because of the effectiveness of these product. S500M semi auto single color servo screen printer has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Screen Printers quality. We believe that our product with so many advantages can bring benefits to all customers.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Tube Printer, Bottle Printer |
| Automatic Grade: | Semi-automatic | Color & Page: | single color |
| Voltage: | 110/220V 50/60Hz | Dimensions(L*W*H): | 100*130*160cm |
| Weight: | 300kgs | Certification: | CE Certification |
| Warranty: | One Year | After-sales Service Provided: | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas |
| Application: | print soft tubes, bottles, jars | Max. printing size: | 250(W)*500(L)mm |
| Max. product height: | 330mm | Max. product diameter: | 150mm |
| Max. mesh frame size: | 600*500*35mm | Air supply: | 0.6Mpa(6bar) |
| Power supply: | 220V/110V 50Hz/60Hz 2.7KW |
| Parameter | APM-S500M |
Max. mesh frame size | 600*500*35mm |
Max.printing size | 250(W)*500(L)mm |
Max. product height | 330mm |
Max. product diameter | 150mm |
Air supply | 0.6Mpa(6bar) |
Power | 110/220V 50/60HZ 2.7KW |
Application
Soft tubes, bottles, jars
General Description
1. Servo motor driven mesh frame left/right and servo driven fixture rotate
2. PLC control and Touch Screen display
3. Easy operation, can set the product diameter, speed, printing position in touch screen
4. No need gear, easy change products
5. Optical sensor registration
