APM PRINT - S250 semi-auto screen printer Semi auto screen printer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. has been manufacturing, exporting and supplying excellent quality S250 semi-auto screen printer. The research and development team is the core competence to S250 semi-auto screen printer. It enables us to become a leader in the Semi auto screen printer. Shenzhen Hejia Automatic Printing Machine Co., Ltd. will keep focusing on customers' needs and keep up with the industry trends so as to develop S250 semi-auto screen printer that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | bottle printer |
| Automatic Grade: | Semi-automatic | Color & Page: | single color |
| Voltage: | 110V/220V 50-60Hz 50W | Dimensions(L*W*H): | 850*830*1280mm |
| Weight: | 135 KG | Certification: | CE certificate |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support |
| Key Selling Points: | Easy to Operate | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, Gear, PLC | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | United States, Spain | Showroom Location: | United States, Spain |
| Marketing Type: | Hot Product 2019 |

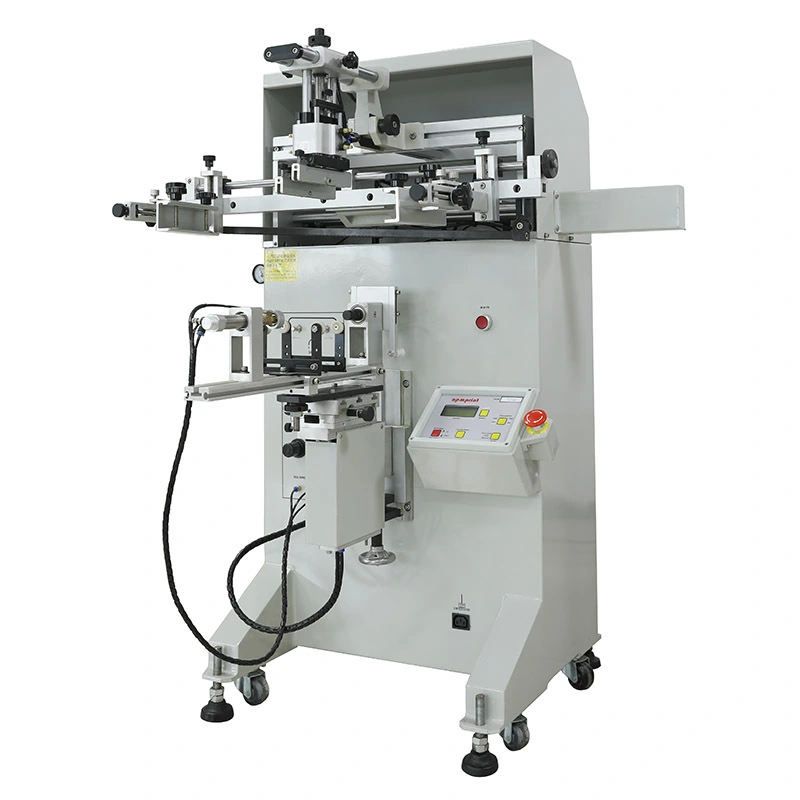

S250 semi-automatic bottle and container screen printer is a well designed and versatile machine. The S250 can screen print on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.
The S250 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the S250 the perfect all around universal screen printing press.
Standard Features:
1.Electro-pneumatic controlled
2.Programmable set-up
3.Pneumatic controlled with shock absorbers
4.Vertical head lift with up/down lock
5.Linear ball bearings on hardened shafts
6.Foot switch controlled
7.Squeegee tilt, skew, and height adjustments
8.Screen frame angle adjustment
9.Universal fixture bar for mounting custom tooling
10.Bottle inflation system with regulator
11.Bottle inflation is synchronized with print cycle
12.Regulated squeegee pressure with pressure gauge
13.Floor levelers & casters
14.Emergency stop button installed, safety guarding is optional
Machine Specifications:
|
Model Number: |
S250 |
|
Drive System: |
Pneumatic |
|
Frame Up/Down Stroke: |
100mm (3.94") |
|
Maximum Print Area Round: Minimum Print Area Round: |
75mm (2.95") Ø 15mm (0.59”) Ø |
|
Working Table Size: |
200 x 300mm (7.87" x 11.81") |
|
Table Adjustment: |
X,Y ± 15mm / θ 15 ° |
|
Maximum Screen Frame Size: |
280 x 430mm (11.02" x 16.93") |
|
Screen Frame Thickness: |
18 - 25mm (.71" - .98") |
|
Squeegee Angle: |
0-15° |
|
Printing Cycle Speed: |
1,980 cycles/hr |
|
Squeegee Speed: |
33/min |
|
Squeegee Pressure: |
2 - 4 Bar |
|
Electric Source: |
110V/220V 50-60Hz 50W |
|
Air Pressure Input: |
80 psi |
|
Air Consumption: |
0.7 L/cycle |
|
Machine Weight: |
135 kg (297.62 lbs) |
|
Machine Weight (including crating): |
205 kg (451.95 lbs) |
|
Dimensions (L x W x H): |
850 x 830 x 1,280mm (33.46" x 32.68" x 50.39") |
|
Crate Dimensions: |
980 x 870 x 1,410mm (38.58" x 34.25" x 55.51") |
