Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

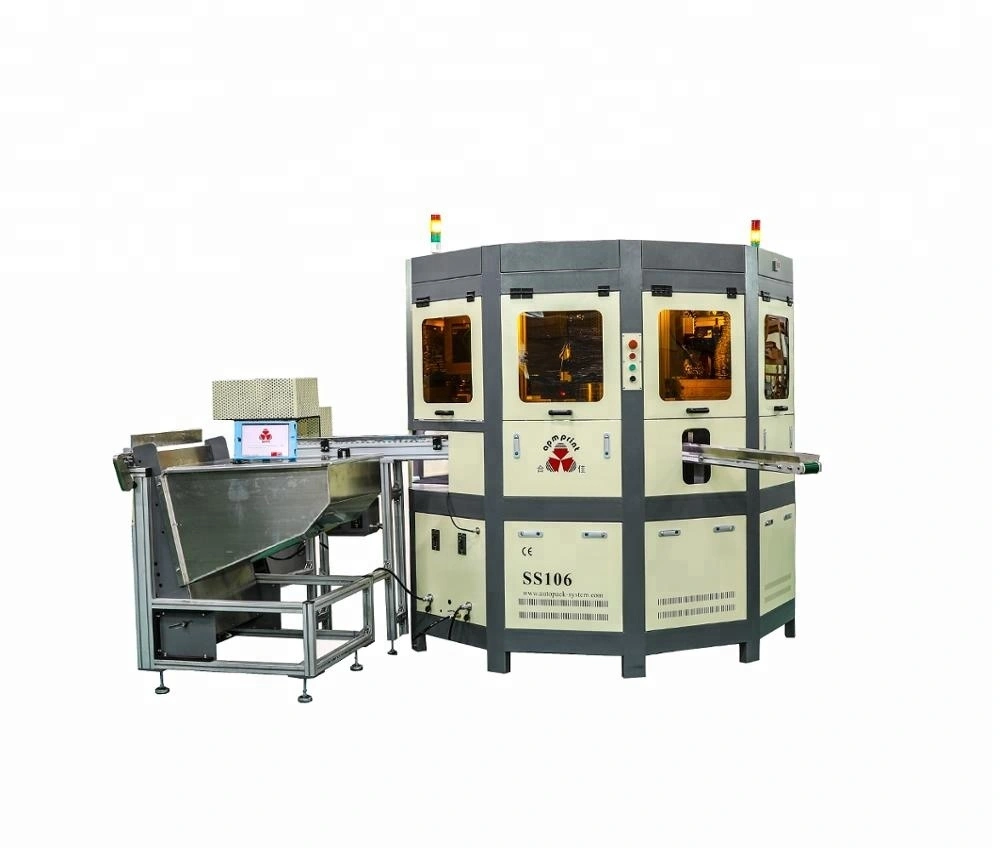

APM PRINT - SS106 fully automatic 3 colors UV screen printer for tube, bottle, jar and so on Screen Print + Hot Stamp
Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of SS106 fully automatic 3 colors UV screen printer for tube, bottle, jar and so on. The team uses the most advanced production equipment and independent research and development technology to minimize SS106 fully automatic 3 colors UV screen printer for tube, bottle, jar and so on development cycle and ensure the high quality and strong reliability of the product. In the future, Shenzhen Hejia Automatic Printing Machine Co., Ltd. will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | plastic/glass bottles, wine caps, jars, tubes |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60Hz | Dimensions(L*W*H): | 2.2 x 2.2 x 2.2m |
| Weight: | 3500KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | High Productivity | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Application: | plastic/glass bottles, wine caps, jars, tubes |
| Printing color: | Multi Color Optional | Type: | 2 color screen printing and 1 color hot stamping machine |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | United States, Spain |
| Showroom Location: | United States, Spain | Marketing Type: | Hot Product 2019 |
Tech-data
| Max printing diameter (bigger diameter machine available with extra cost) |
40mm |
| Max printing length | 120mm |
| Max printing speed | 30-45pcs/min |
| UV power | 3000watts |
Application
The machine SS106 is designed for multi colours decoration of plastic/glass bottles, wine caps, jars, tubes at high production speeds. It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.

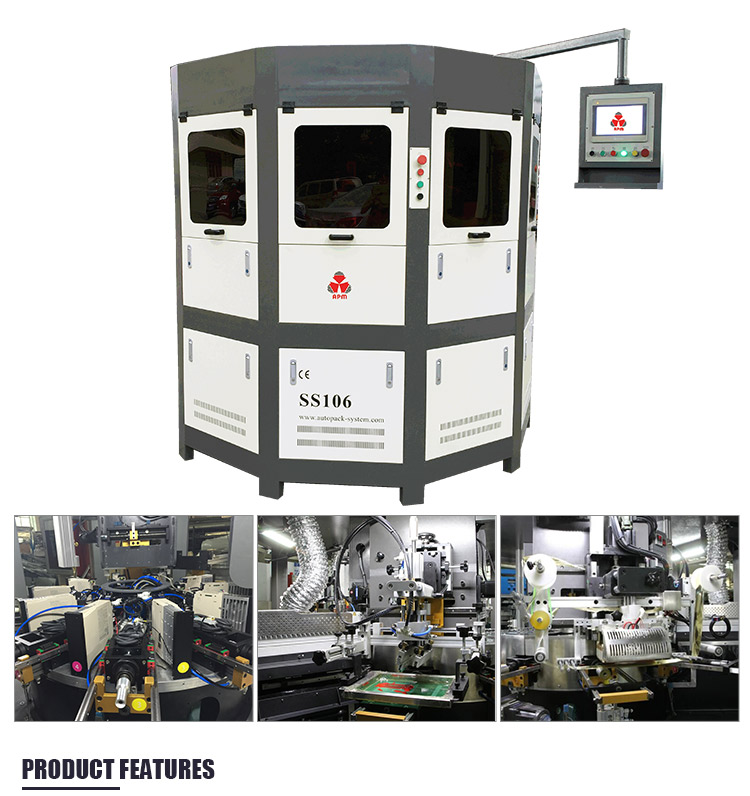

Description
1. Automatic roller loading belt
2. Auto flame treatment
3. Auto anti-static dust cleaning system before printing optional
4. Auto registration to print products escape the molding line optional
5. Screen printing and hot stamping in 1 process
6. All servo driven screen printer with best accuracy:
*mesh frames driven by servo motors
*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
7. Auto UV drying
8. No products no print function
9. High accuracy indexer
10. Auto unloading belt (standing unloading with robot optional)
11. Well built machine house with CE standard safety design
12. PLC control with touch screen display
