Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

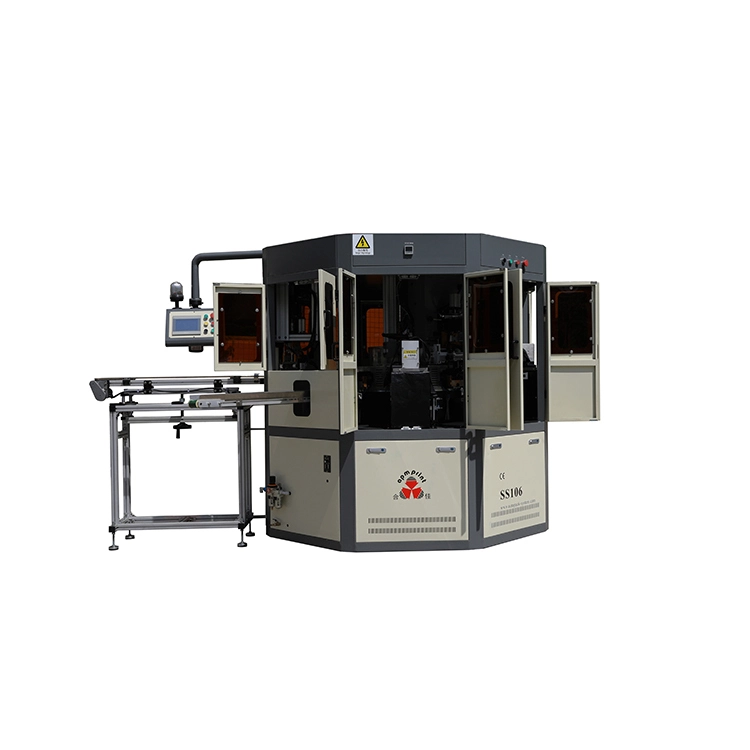

APM PRINT - Fully Auto Cylindrical Full Color Screen Printing Machine For Glass Plastic Bottle Cup Screen Printer Screen Print + Hot Stamp
We are proud to provide consistent quality product and dependable service for many years. High-end technologies are used to manufacture Fully Auto Cylindrical Full Color Screen Printing Machine For Glass Plastic Bottle Cup Screen Printer.The product can play out its greatest effect in the field(s) of Screen Printers. After years of growth and development,Shenzhen Hejia Automatic Printing Machine Co., Ltd. have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | plastic/glass bottles, wine caps, jars, tubes |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60Hz | Dimensions(L*W*H): | 2.2 x 2.2 x 2.2m |
| Weight: | 3500 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Application: | plastic/glass bottles, wine caps, jars, tubes |
| Printing color: | Multi Color Optional | Type: | 2 color screen printing and 1 color hot stamping machine |
| After Warranty Service: | Online support | Local Service Location: | Spain |
Tech-data
| Max printing diameter (bigger diameter machine available with extra cost) |
40mm |
| Max printing length | 120mm |
| Max printing speed | 30-45pcs/min |
| UV power | 3000watts |
Application
The machine SS106 is designed for multi colours decoration of plastic/glass bottles, wine caps, jars, tubes at high production speeds. It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.
Description
1. Automatic roller loading belt
2. Auto flame treatment
3. Auto anti-static dust cleaning system before printing optional
4. Auto registration to print products escape the molding line optional
5. Screen printing and hot stamping in 1 process
6. All servo driven screen printer with best accuracy:
*mesh frames driven by servo motors
*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
7. Auto UV drying
8. No products no print function
9. High accuracy indexer
10. Auto unloading belt (standing unloading with robot optional)
11. Well built machine house with CE standard safety design
12. PLC control with touch screen display
