Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

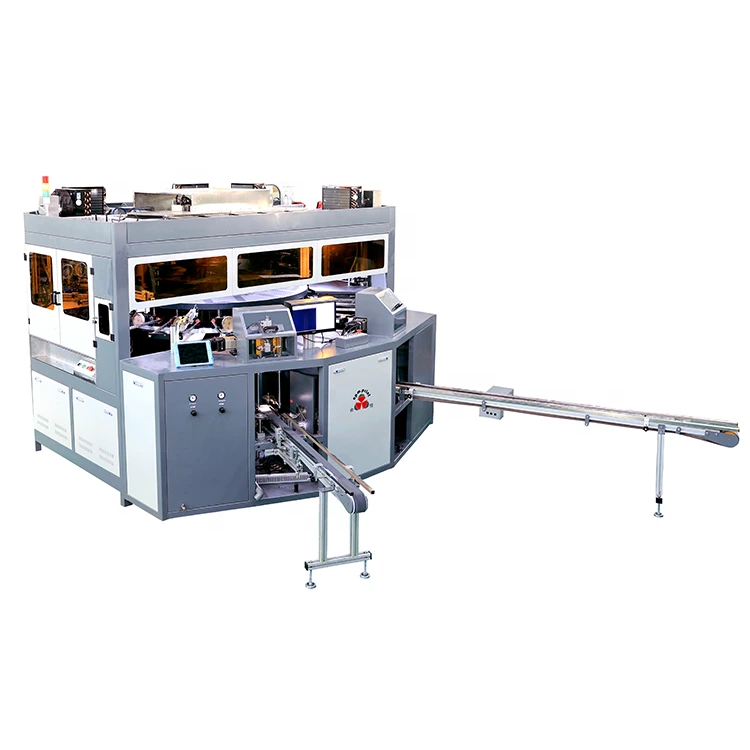

APM PRINT - Glass bottle auto silk screen printing machine automatic Screen Print + Hot Stamp
Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of Screen Printers now. It is delicately designed to comply with the industry standard. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Shenzhen Hejia Automatic Printing Machine Co., Ltd. believe that we will stay ahead of other competitors in the future.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | bottle printer, glass bottle printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60Hz | Dimensions(L*W*H): | 3*3*2.4m |
| Weight: | 3500 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | all servo driven | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox | Application: | round oval square bottle printing |
| Printing color: | Multi Color | Type: | Screen Printing Machine |
| Color/station: | 12 stations | Printing area: | diameter 100mm, height 300mm |
| After Warranty Service: | Video technical support |
Tech-data
| Parameter | CNC323,324,325,326,327,328 |
| Power | 380VAC 3Phase 50/60Hz |
| Air consumption | 6-7 bars |
| Max printing speed | 2400-3000pcs/h |
| Printing speed | 15-90mm |
| Printing length | 20-330mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
1. Automatic loading system with multi axis servo robot.
2. Indexing table system with best accuracy.
3. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
4. All jigs with individual servo motor driven for rotation.
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen.
6. LED UV curing system with longer life time and energy saving. Last color is electrode UV system from Europe.
7. Automatic unloading with servo robot.
8. Safety operation with CE.
Options
1. The 2nd color can be replaced with hot stamping head, make multi-color screen printing and hot stamping in line.
2. Camera vision system, for cylindrical products without registration point, to escape the molding line.
3. Simplified model: CNC323-8 for cylindrical bottles only. Printing head without servo motor driven, no product up/down floating.
