Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

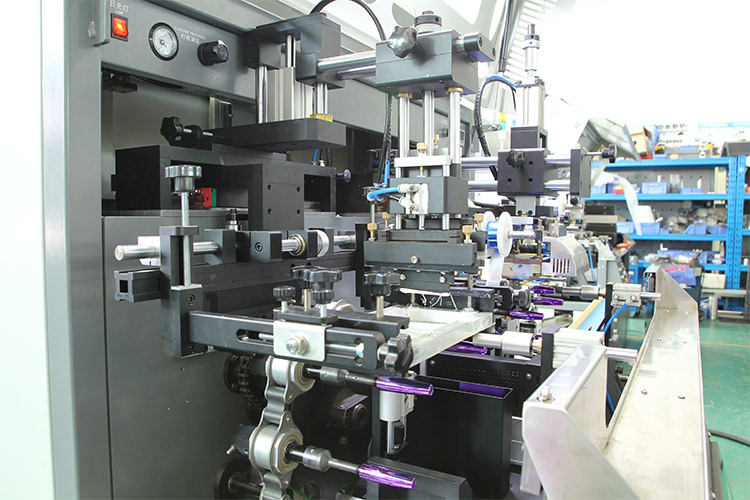

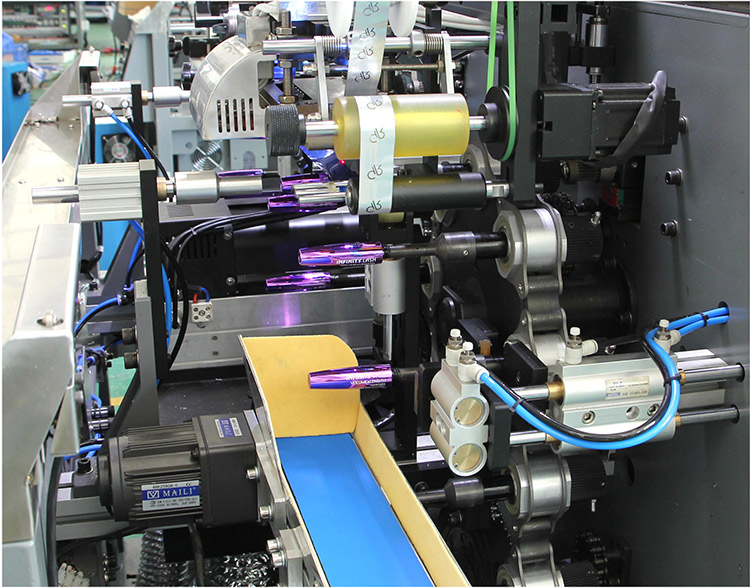

APM PRINT - SH107 automatic 2 colors UV printing+1 color hot stamping machine for cap/lids/tube Screen Print + Hot Stamp
Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of Screen Printers now. Different from other products,SH107 automatic 2 colors UV printing+1 color hot stamping machine for cap/lids/tube really solves the pain points of customers, so as soon as they were launched on the market, they received many good feedbacks. Our capable staff has been devoted to the improvement and upgrades of technology.In the Screen Printers,the product is widely used.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | cap printing, marker printer, pen printer, cosmetic printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Dimensions(L*W*H): | 1.6*1.23*1.94m |
| Weight: | 1100 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Product name: | High Resolution Plc Control Round Bottle Hot Foil Printing Machine |
| Application: | cap printing+stamping | Color: | 3 colors |
| Printing speed: | 2600pcs/H | After Warranty Service: | Online support |
| Marketing Type: | Ordinary Product |
| Max. Speed |
3000pcs/h |
| Cap diameter |
Φ15-34mm |
| Cap length |
25-60mm |
|
Bottle diameter |
Φ20-65 mm |
|
Bottle height |
25-150 mm |
|
Air pressure |
5-7bar |
|
Power supply |
380V,3P,50/60Hz |
Application
The SH107 is designed for screen printing and hot stamping of cylindrical caps, lipsticks, markers or pen sleeves.
It is capable of printing multi-color without color registration point.
General Description
1. Automatic loading belt
2. Auto flame treatment
3. Chain transmission
4. No product no print function
5. LED UV curing system with longer life time and energy saving, electric UV system optional.
6. Reliable PLC control with touch screen display
7. Automatic unloading.
8. Safety operation with CE standard.
Procedure
Screen printing head can be changed to hot stamping head to be hot stamping machine or screen and hot stamping machine.
S107 screen printer
H107 hot stamping machine
SH107 screen and hot stamping machine
