Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

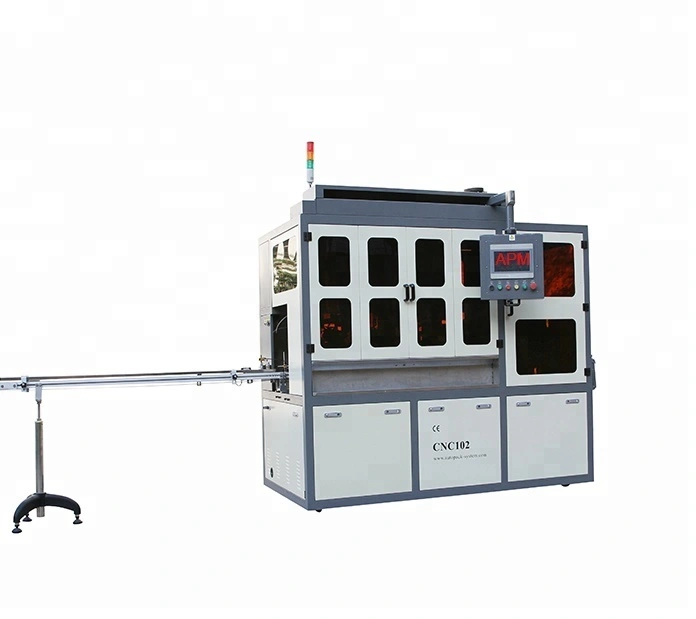

APM PRINT - Automatic Loading System Glass bottle Servo Screen Printing Machinery Screen Print + Hot Stamp
Shenzhen Hejia Automatic Printing Machine Co., Ltd. In order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created Automatic Loading System Glass bottle Servo Screen Printing Machinery. Screen Printers After assessing the needs of customers and the market, we have successfully made Automatic Loading System Glass bottle Servo Screen Printing Machinery have some wanderful advantages, all of which can help make it stand out in the market. Moreover, its appearance is highly emphasized as well. Our creative designers make the product unique in its appearance by keeping close up with the latest industry trends.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380V | Dimensions(L*W*H): | 2200x1320x1800mm |
| Weight: | 800 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Product name: | Glass Mugs Automatic Servo Screen Printing Machinery |
| Application: | bottle printer | Printing color: | 1 color |
| After Warranty Service: | Online support | Marketing Type: | Ordinary Product |
Tech-data
| Product Name | Automatic Loading System Glass Mugs Automatic Servo Screen Printing Machinery |
| speed | 1800-2400pcs/H |
| power | 380V, 3P 50/60Hz |
| Air supply | 6-8Bar |
| Round Container | |
| Printing Dia. | 20-100mm |
| Printing Length | 30-180mm |
| Square/Irregular container | |
| Printing Width | 20-100mm |
| Printing Length | 30-180mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
Automatic loading system with multi axis servo robot.
Servo driven transfer system.
Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
Multi sides printing in one process.
LED UV or electric UV system optional
Super quick and easy change over from one product to another.
All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
Automatic unloading with servo robot.
Safety operation with CE.
Repeat print to be multi colors.
Options
Additional module up to 10 units, to be multi colors production line.
Flame Plasma pre-treatment system for best adhesion on glass
Camera vision system, for cylindrical products without registration point.
