Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

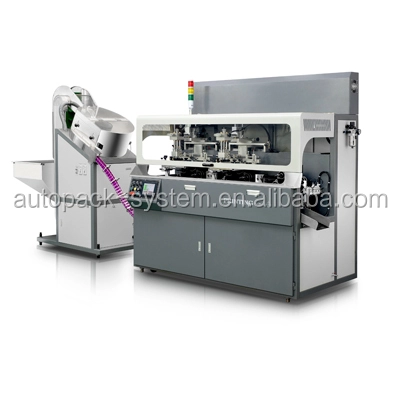

APM PRINT - Prior Control Auto Uv Drying Tube Hot Stamping Machine Screen Print + Hot Stamp
Shenzhen Hejia Automatic Printing Machine Co., Ltd. has always attached great importance to the pain points of the industry. The newly launched products are specially developed to solve the pain points of the industry, which perfectly solve the pain points of the industry and are enthusiastically sought after by the market. The team uses the most advanced production equipment and independent research and development technology to minimize Prior Control Auto Uv Drying Tube Hot Stamping Machine development cycle and ensure the high quality and strong reliability of the product. Shenzhen Hejia Automatic Printing Machine Co., Ltd. will strive toward excellence by building our working principles of guaranteeing quality for survival and seeking innovation for development, into everything we deliver. We are confident that we will overcome all the difficulties and obstacles to make a success in the end.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | cap printing, marker printer, pen printer, cosmetic printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Dimensions(L*W*H): | 1.6*1.23*1.94m |
| Weight: | 1100 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Product name: | Prior Control Auto Uv Drying Tube Hot Stamping Machine |
| Application: | cap printing+stamping | Color: | 3 colors |
| Printing speed: | 2600pcs/H | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | United States, Spain | Showroom Location: | United States, Spain |
| Marketing Type: | Ordinary Product |
| Product name |
|
|
| Max. Speed |
3000pcs/h |
|
| Cap diameter |
Φ15-34mm |
|
| Cap length |
25-60mm |
|
|
Bottle diameter |
Φ20-65 mm |
|
|
Bottle height |
25-150 mm |
|
|
Air pressure |
5-7bar |
|
|
Power supply |
380V,3P,50/60Hz |
Application
The SH107 is designed for screen printing and hot stamping of cylindrical caps, lipsticks, markers or pen sleeves.
It is capable of printing multi-color without color registration point.
General Description
1. Automatic loading belt
2. Auto flame treatment
3. Chain transmission
4. No product no print function
5. LED UV curing system with longer life time and energy saving, electric UV system optional.
6. Reliable PLC control with touch screen display
7. Automatic unloading.
8. Safety operation with CE standard.
Procedure
Screen printing head can be changed to hot stamping head to be hot stamping machine or screen and hot stamping machine.
S107 screen printer
H107 hot stamping machine
SH107 screen and hot stamping machine
