Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

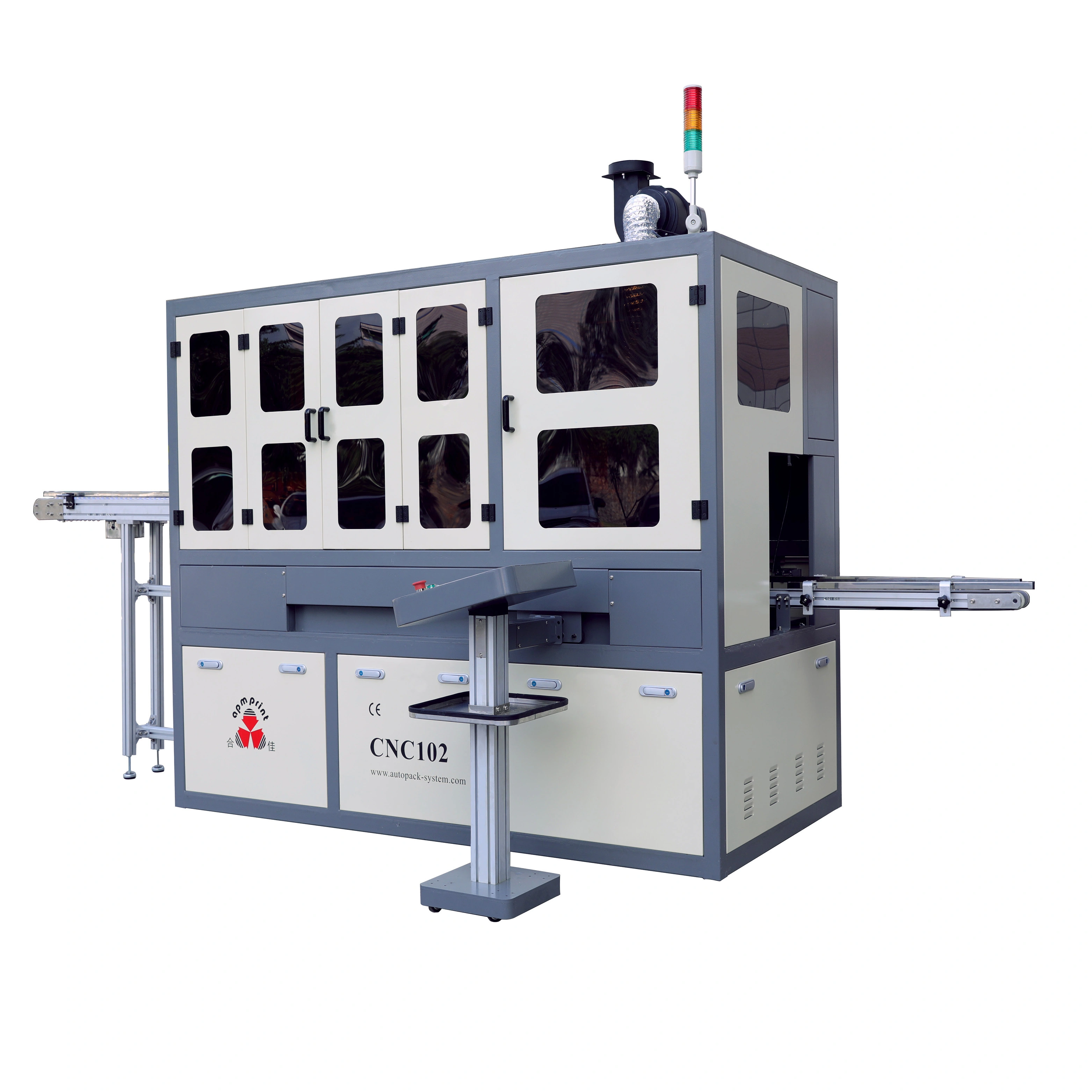

APM PRINT - CNC102 screen printer servo automatic glass perfume nail cosmetic bottle printing machine Auto Screen Printer
As a quality-driven and customer-oriented enterprise,Shenzhen Hejia Automatic Printing Machine Co., Ltd. always guarantees our development work involves the creative design and meticulous production. Our CNC102 screen printer servo automatic glass perfume nail cosmetic bottle printing machine is expected to catch wide attention. It is consistent with industry standards. Research and development are the pillars on which the future of our company rests. Shenzhen Hejia Automatic Printing Machine Co., Ltd. will put more emphasis on improving our R&D strength in the future for developing more creative and competitive new products.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Tube Printer, glass bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380v, 50/60Hz | Dimensions(L*W*H): | 2200x1320x1800mm |
| Weight: | 800 KG | Certification: | CE Certification |
| Warranty: | One Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor, PLC |
| After-sales Service Provided: | Engineers available to service machinery overseas | Application: | Round, Square, irregular Container Printing |
| Printing Speed: | 1800-2400 pcs/h |
| speed | 1800-2400pcs/H |
| power | 380V, 3P 50/60Hz |
| Air supply | 6-8Bar |
| Round Container | |
| Printing Dia. | 20-100mm |
| Printing Length | 30-180mm |
| Square/Irregular container | |
| Printing Width | 20-100mm |
| Printing Length | 30-180mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
1. Automatic loading system with multi axis servo robot.
2. Servo driven transfer system.
3. Auto flame treatment
4. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
5. Multi sides printing in one process.
6. Auto UV drying
7. Super quick and easy change over from one product to another.
8. All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
9. Automatic unloading with servo robot.
10. Safety operation with CE.
11. Repeat print to be multi colors.
Options
Camera vision system, for cylindrical products without registration point.
