Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

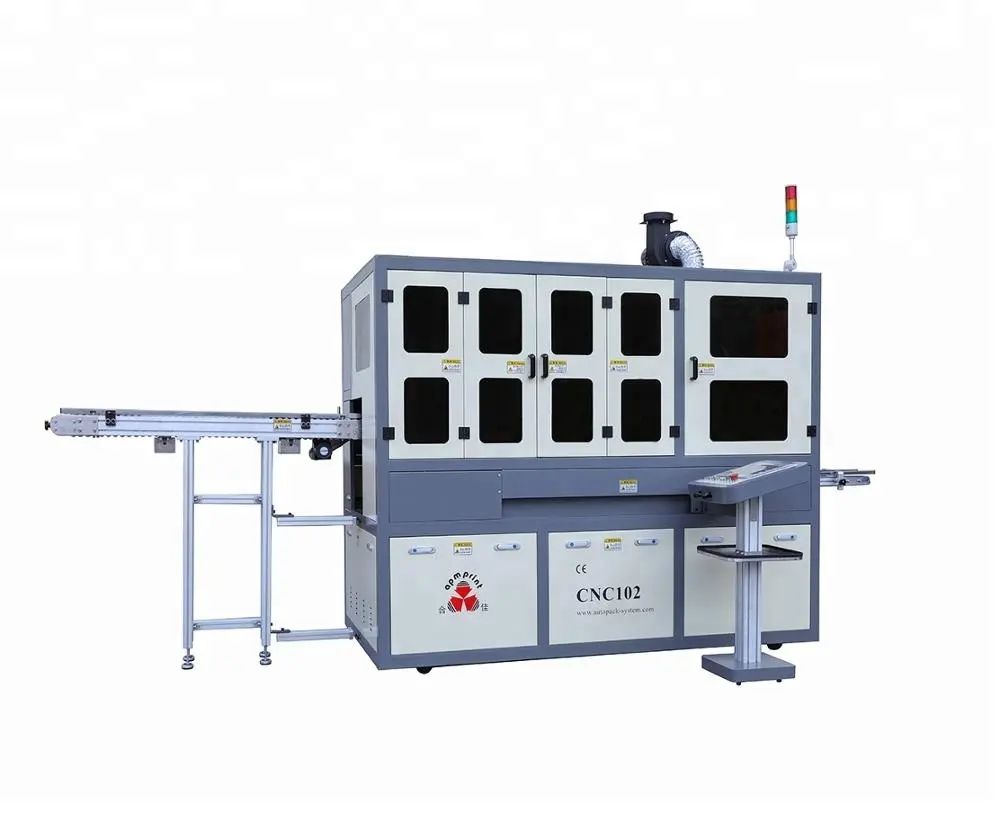

APM PRINT - CNC102 Hot sale automatic screen printing machine with flame treatment and CCD Auto Screen Printer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. has been one of the industry leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. It is consistent with industry standards. Our CNC102 Hot sale automatic screen printing machine with flame treatment and CCD has been through multiple tests conducted by professional technicians, the purpose of which is to confirm its practical use. When applied in the application area(s) of Screen Printers, the Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine can be reliable and long-lasting, saving plenty cost for users.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | glass bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380v, 50/60Hz | Dimensions(L*W*H): | 2200x1320x1800mm |
| Weight: | 1200 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Key Selling Points: | Servo machine | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, PLC | Application: | Round, Square, irregular Container Printing |
| Printing Speed: | 1800-2400 pcs/h | Keywords: | CNC |
| Printing color: | 1-4 Colors | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | United States, Spain | Showroom Location: | United States, Spain |
| Marketing Type: | Ordinary Product |
| speed | 1800-2400pcs/H |
| power | 380V, 3P 50/60Hz |
| Air supply | 6-8Bar |
| Round Container | |
| Printing Dia. | 20-100mm |
| Printing Length | 30-180mm |
| Square/Irregular container | |
| Printing Width | 20-100mm |
| Printing Length | 30-180mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
1. Automatic loading system with multi axis servo robot.
2. Servo driven transfer system.
3. Auto flame treatment
4. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
5. Multi sides printing in one process.
6. Auto UV drying
7. Super quick and easy change over from one product to another.
8. All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
9. Automatic unloading with servo robot.
10. Safety operation with CE.
11. Repeat print to be multi colors.
Options
Camera vision system, for cylindrical products without registration point.
