Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

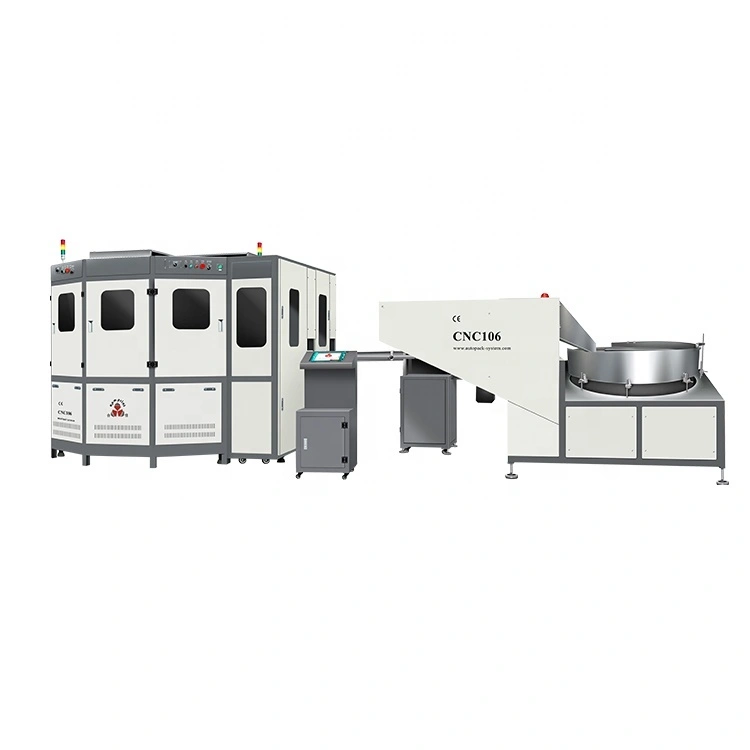

APM PRINT - 6 colors rotary cylinder oval square automatic servo driven Silk Screen Printing Machine For Sale Auto Screen Printer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. has become a recognized leader in the Screen Printers industry with its high-quality product and excellent service. Different from other products,6 colors rotary cylinder oval square automatic servo driven Silk Screen Printing Machine For Sale really solves the pain points of customers, so as soon as they were launched on the market, they received many good feedbacks. Shenzhen Hejia Automatic Printing Machine Co., Ltd. will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Tube Printer, bottle printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60Hz | Dimensions(L*W*H): | 2.65*2.2*2.2m |
| Weight: | 6500 KG | Certification: | CE certificate |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Key Selling Points: | automatic servo | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox | Application: | Bottles |
| Product name: | screen printing machine | Color: | 6 Color |
| Keywords: | screen printer | Application area: | 100mm diameter bottle |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | Canada, United States, Spain |
| Showroom Location: | Canada, United States, Spain | Marketing Type: | Hot Product 2019 |
Tech-data
| Max printing diameter (bigger diameter machine available with extra cost) |
40mm |
| Max printing length | 120mm |
| Max printing speed | 30-45pcs/min |
| UV power | 3000watts |
Application:
Round, oval, square bottles
Description:
1. Auto loading belt, fully auto loader optional with extra charge.
2. Dust clean
3. Auto flame treatment
4. Inflation at each printing station
5. All servo driven screen printer with best accuracy
*printing heads driven by servo motor
*mesh frames driven by servo motors
*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
6. multi colors print in 1 process
7. Camera vision system (CCD) optional : for cylindrical products without registration point, repeat print to be double colors.
8. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen.
9. Auto UV drying or LED drying after each color printing.
10. Automatic unloading.
11. Well built machine house with CE standard safety design.
Tech-data
|
Parameter/Item |
CNC106 |
|
power |
380V, 3P 50/60Hz |
|
Air consumption |
6-8bar |
|
Max Printing speed |
1 side for oval bottle: 30~45pcs/min 2 sides for oval bottle: 22~35pcs/min |
|
Max. printing Dia. |
100mm |
|
Max. printing circumstance |
220mm |
|
Product height |
25-250mm |
|
Max. printing height |
200mm |
