Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

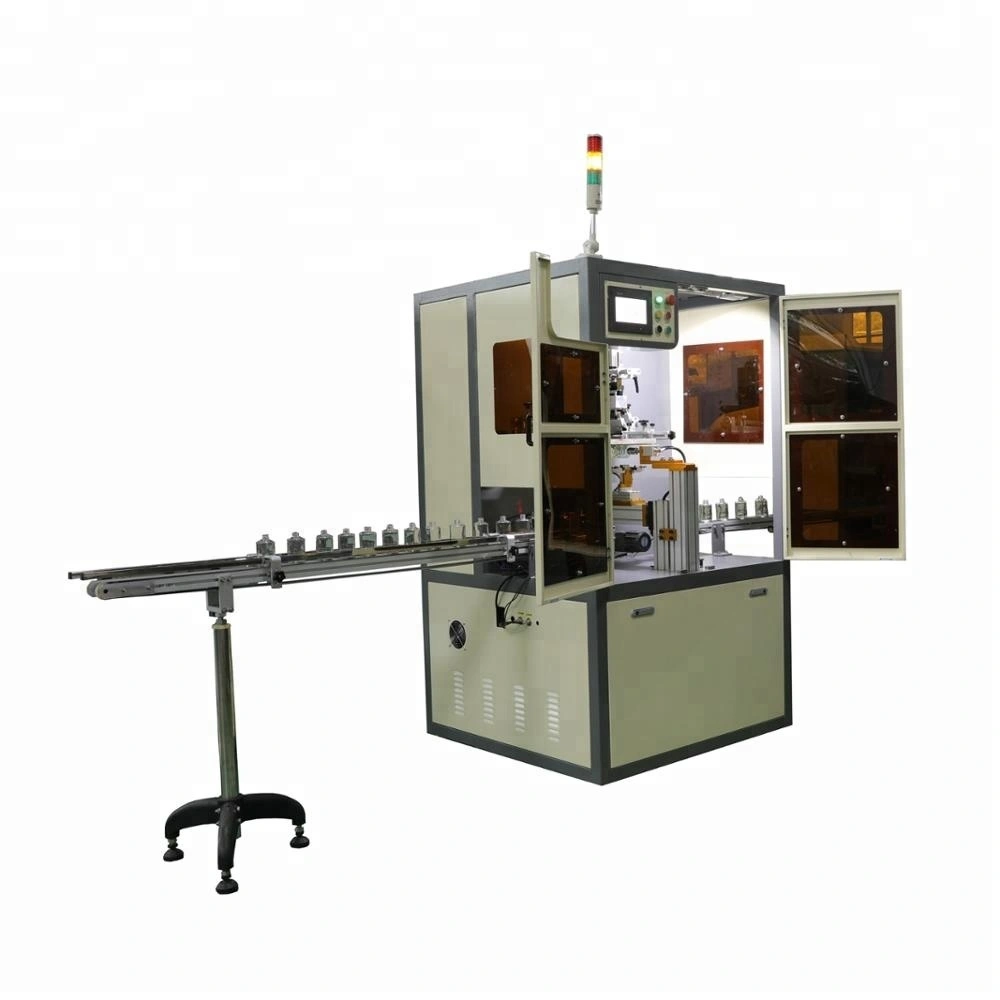

APM PRINT - CNC101 automatic servo screen printer for glass bottle, robot with bottle stand up Auto Screen Printer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. still remembered the time when we successfully developed the new product - CNC101 automatic servo screen printer for glass bottle, robot with bottle stand up. The product is absolutely new and has something different in it. The reason why products are loved by the market is the emphasis on high-tech research and development. With regard to its design, CNC101 automatic servo screen printer for glass bottle, robot with bottle stand up is designed by a team of our designers who are always close to the industry trend and keep alert to the changes.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380V | Dimensions(L*W*H): | 1300*1150*1800mm |
| Weight: | 600 KG | Certification: | CE Certification |
| Warranty: | One Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, Other |
| Application: | bottle pritning | Printing speed: | 2000 PC/H |
| Printing material: | glass | Product appearance: | Round Bottle Oblate Bottle |
| Type: | Silk Screen Printing Machine | After Warranty Service: | Video technical support |
| Local Service Location: | Spain | Showroom Location: | United States |
Main Features
1. Simple structure in linear type ,easy in installation and maintation.
2. Automatic loading system with multi axis servo robot.
3. Servo driven transfer system.
4. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
5. Super quick and easy change over from one product to another.
Tech-data
|
speed |
1200-2400pcs/H |
|
power |
380V, 3P 50/60Hz |
|
Air supply |
6-8Bar |
|
Printing Dia. |
10-60mm |
|
Printing Length |
50-130mm |
6. All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
7. Automatic unloading with servo robot.
8. Safety operation with CE.
9. Repeat print to be multi colors.
Machine Parts
Name: loading system
bottle stand up on the loading belt and wait for robot pick up
control bottle moving by sensor
Name: printing head
Mesh fram moving by servo
fixture moving by servo control
Name: unloading system
bottle unloading by robot and stand up on the belt wait transfer to IR oven
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
