Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

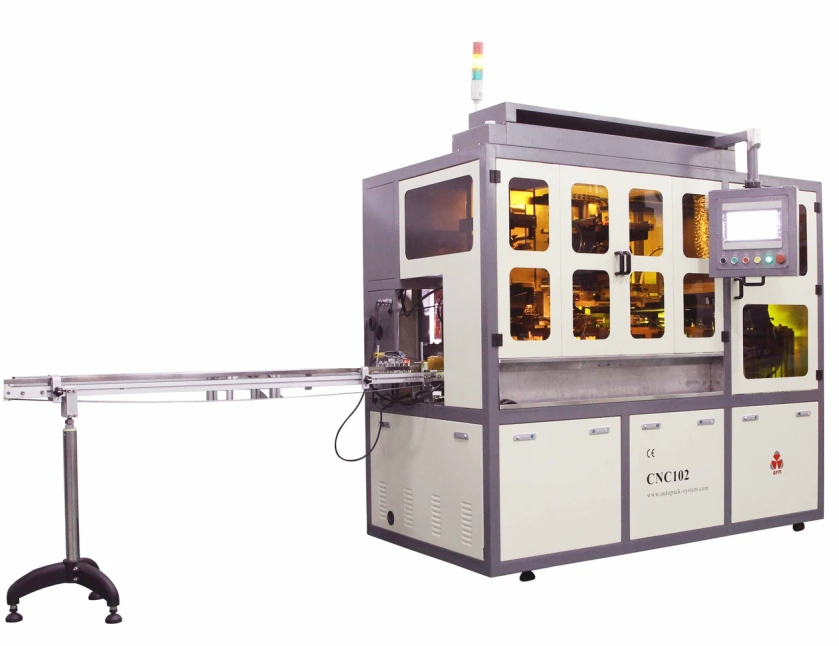

APM PRINT - CNC102 Best Sale Automatic Loading Screen Printer Auto Screen Printer
Buyers have always reached the best quality providing and reliable CNC102 Best Sale Automatic Loading Screen Printer manufacturers. By accurately grasping the pain points of customers, the CNC102 Best Sale Automatic Loading Screen Printer developed by us has been supported and praised by the majority of customers in the market. Used in Screen Printers,CNC102 Best Sale Automatic Loading Screen Printerhas a promising application prospect.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | glass bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380v, 50/60Hz | Dimensions(L*W*H): | 2200x1320x1800mm |
| Weight: | 800 KG | Certification: | CE Certification |
| Warranty: | One Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor, PLC, Engine |
| After-sales Service Provided: | Engineers available to service machinery overseas | Application: | Round, Square, irregular Container Printing |
| Printing Speed: | 1800-2400 pcs/h | Product name: | CNC102 Best Sale Automatic Loading System Auto Screen Printer |
| After Warranty Service: | Online support | Local Service Location: | United States |
| Product Name | CNC102 Best Sale Automatic Loading System Auto Screen Printer |
| speed | 1800-2400pcs/H |
| power | 380V, 3P 50/60Hz |
| Air supply | 6-8Bar |
| Round Container | |
| Printing Dia. | 20-100mm |
| Printing Length | 30-180mm |
| Square/Irregular container | |
| Printing Width | 20-100mm |
| Printing Length | 30-180mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
1. Automatic loading system with multi axis servo robot.
2. Servo driven transfer system.
3. Auto flame treatment
4. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
5. Multi sides printing in one process.
6. Auto UV drying
7. Super quick and easy change over from one product to another.
8. All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
9. Automatic unloading with servo robot.
10. Safety operation with CE.
11. Repeat print to be multi colors.
Options
Camera vision system, for cylindrical products without registration point.
