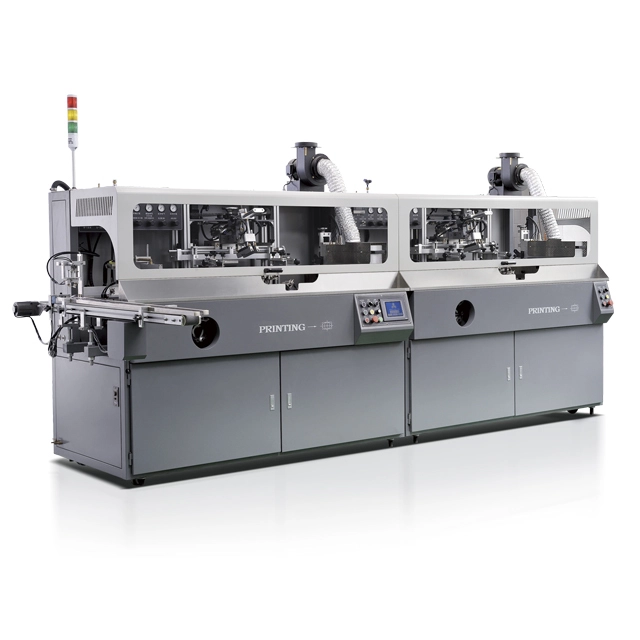

APM PRINT - S102 Automatic plastic bottle UV screen printer machine, bottle screen printing machine Auto Screen Printer

Shenzhen Hejia Automatic Printing Machine Co., Ltd. has made immense progress in the development of roducts. S102 Automatic plastic bottle UV screen printer machine, bottle screen printing machine is the product of our company made by the state-of-the-art technologies. By virtue of continuous technological innovation, we have mastered the core and most advanced technology in the industry, and will use advanced technology to produce S102 Automatic plastic bottle UV screen printer machine, bottle screen printing machine, effectively solving the pain points that have always plagued the industry. Since established, Shenzhen Hejia Automatic Printing Machine Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.

Tech - data



Parameter	APM-S102
	Round container
Printing diameter	20-100mm
Printing length	20-300mm
Max.printing speed	4000pcs/h
	Oval container
Printing width	25-120mm
Printing length	25-300mm
Max.printing speed	5000pcs/h
	Square container
Printing length	100-200mm
Printing width	40-100mm
Max.printing speed	4000pcs/h
Machine dimension	1908*1000*1500mm
Power	380V,3P,50/60Hz
Air supply	5-7bar

Application

The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.

Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.

General Description

Automatic 1-8 color screen printing line, each unit can be separated or connected;

Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;

Auto flame treatment;

Perfect transmission system. It passes over the bottles fast and smooth;

Automatic 180 degree rotation for oval and square bottles;

Quick and easy change over from one product to another;

LED UV curing system with longer life time and energy saving,electric UV system optional;

Reliable PLC control with touch screen display;

Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;

Automatic unloading.

Procedure

Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
