Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

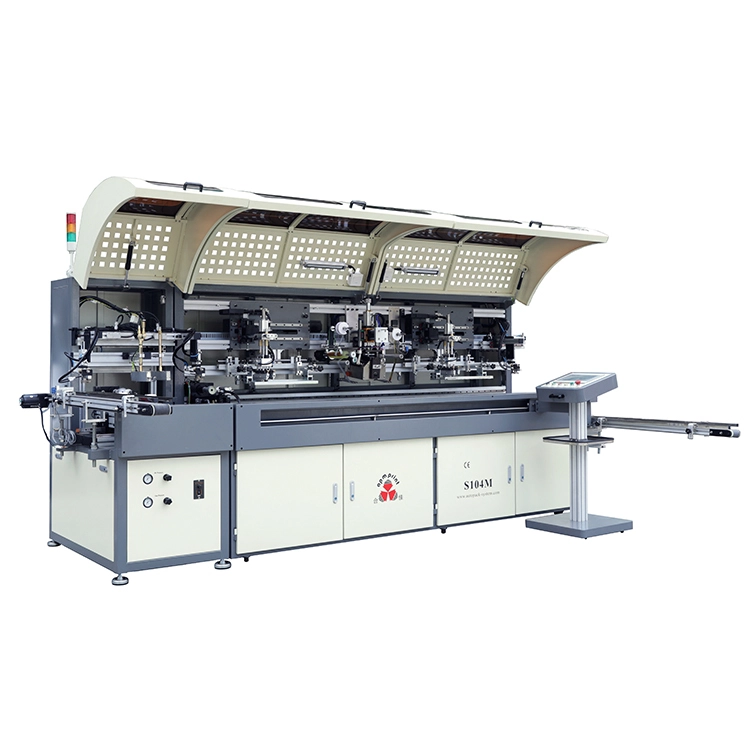

APM PRINT - Automatic Unloading one Station Shuttle Bottle Screen Printing Machine Auto Screen Printer
After years of development, Shenzhen Hejia Automatic Printing Machine Co., Ltd. has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. The key to Automatic Unloading one Station Shuttle Bottle Screen Printing Machine competitiveness is innovation. Our capable staff has been devoted to the improvement and upgrades of technology.In the Screen Printers,the product is widely used.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | cylindrical glass/plastic/metal bottles and cups printing |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380V,50/60HZ | Dimensions(L*W*H): | 1908x1000x1500mm |
| Weight: | 1500 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Other | Application: | bottle printer, cup printer |
| Printing color: | Multicolor | Printing speed: | 400-600pcs/H |
| Max printing size: | dia.100mm | Dryer: | UV Dryer |
| After Warranty Service: | Video technical support |
|
Printing speed |
400-600pcs/H |
|
Printing diameter |
100mm |
|
Printing length |
320mm |
|
Air pressure |
5-7bar |
|
Power |
380V 3P |
Application
The APM-S104M is designed for cylindrical glass/plastic/metal bottles and cups printing.
It is capable of printing multicolor on round containers without color registration point.
General Description
1. Servo motor registration.
2. Auto loading.
3. Auto unloading.
4. Only one fixture, easy to change product.
5. Can print multicolor on cylindrical bottles without color registration point.
6. UV ink or hot melted ink printing optional.
7. For UV ink printing, after each color printing, the product will come back to LED UV system to be dried, then will go for the next color printing.
