Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

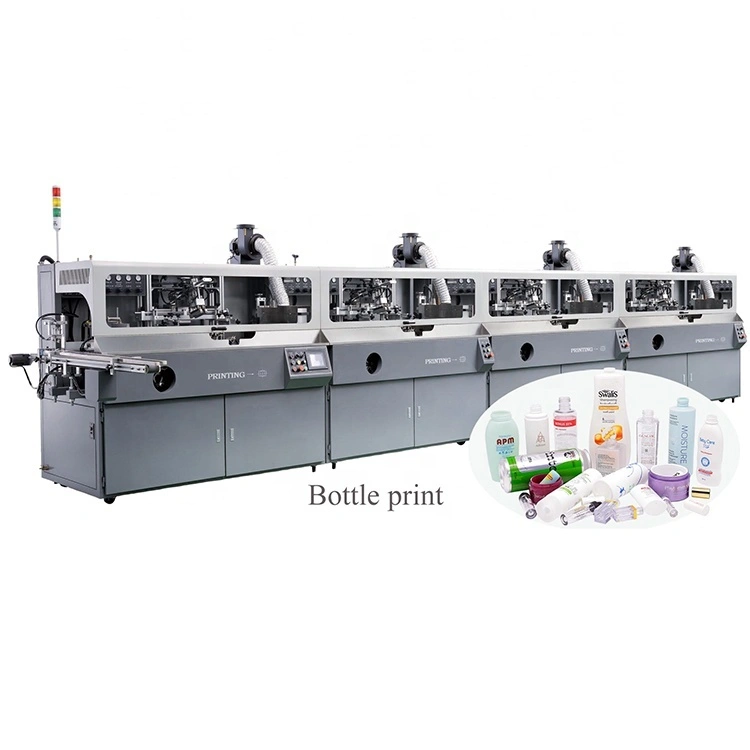

APM PRINT - S102 Led Uv Curing System auto Silk Screen Printer for bottles, plastic bottle screen printer Auto Screen Printer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. has been investing a lot in product development and has gained positive results. It better meets the market demands. We have an experienced team consisting of several industry experts. They have years of experience in manufacturing and designing Auto Screen Printer.In the past months, they have been focusing on improving the practical use of the product, and finally they made it. Proudly speaking, our product enjoys a wide application range and can be very useful when applied in the field(s) of Fully automatic screen printers (specially CNC printing machines) Automatic hot stamping machine.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | bottle printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Dimensions(L*W*H): | 2500x1420x1700mm |
| Weight: | 2200 KG | Certification: | CE Certification |
| Warranty: | 1 Year | Key Selling Points: | Multi Color |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Bearing, Motor, PLC |
| Application: | Bottles | Printing speed: | 3000pcs/H |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | United States, Spain |
| Showroom Location: | United States, Spain | Marketing Type: | Hot Product 2019 |
|
Parameter |
APM-S102 |
|
Round container |
|
|
Printing diameter |
20-100mm |
|
Printing length |
20-300mm |
|
Max.printing speed |
4000pcs/h |
|
Oval container |
|
|
Printing width |
25-120mm |
|
Printing length |
25-300mm |
|
Max.printing speed |
5000pcs/h |
|
Square container |
|
|
Printing length |
100-200mm |
|
Printing width |
40-100mm |
|
Max.printing speed |
4000pcs/h |
|
Machine dimension |
1908*1000*1500mm |
|
Power |
380V,3P,50/60Hz |
|
Air supply |
5-7bar |
Application
The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.
Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
General Description
Automatic 1-8 color screen printing line, each unit can be separated or connected;
Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
Auto flame treatment;
Perfect transmission system. It passes over the bottles fast and smooth;
Automatic 180 degree rotation for oval and square bottles;
Quick and easy change over from one product to another;
LED UV curing system with longer life time and energy saving,electric UV system optional;
Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
Automatic unloading.
Procedure
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
