Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color bottle screen printing machines.

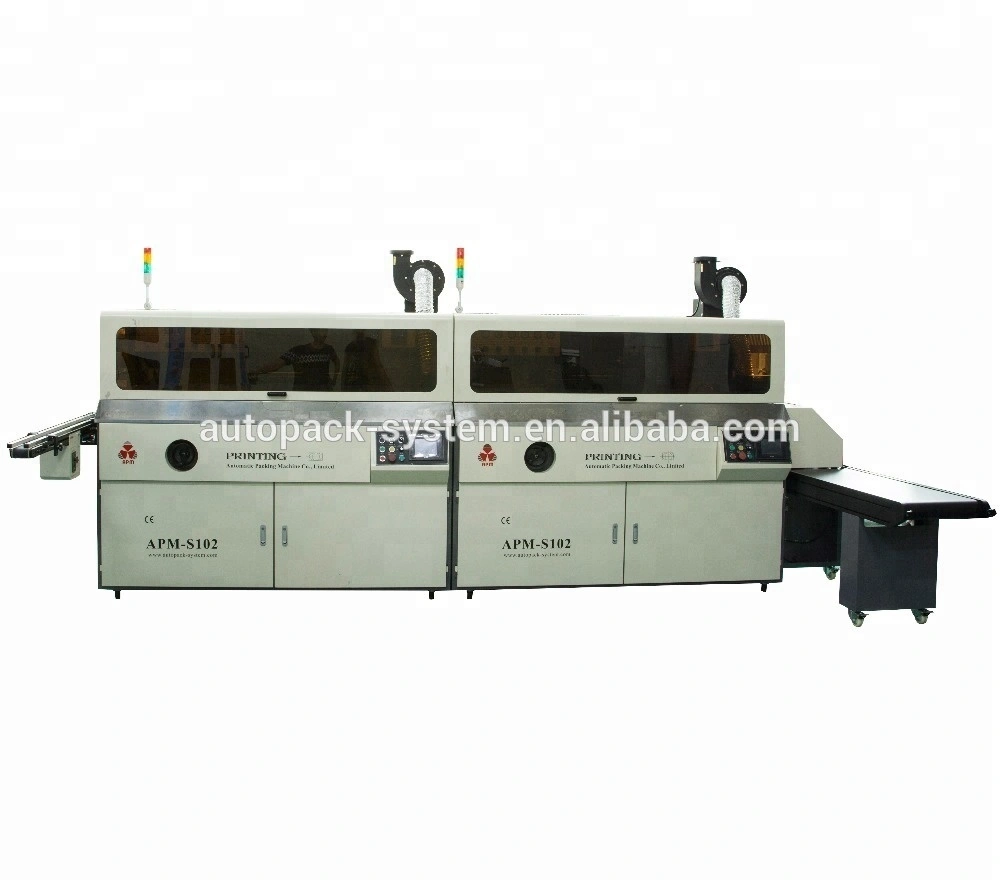

APM PRINT - S102 1-6colors automatic UV bottle printer, pp/pet bottle printer Auto Screen Printer
Shenzhen Hejia Automatic Printing Machine Co., Ltd. can provide the most efficient services and S102 1-6colors automatic UV bottle printer, pp/pet bottle printer with the highest quality and most affordable price. To meet various needs of customers, we supports customized S102 1-6colors automatic UV bottle printer, pp/pet bottle printer. It is technologies that keep a company stands out from other competitors.Shenzhen Hejia Automatic Printing Machine Co., Ltd. will focus on improving our currently-used manufacturing technologies and will never stop innovating and developing our own core technologies. We hope that one day we will become a leader in the industry.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | bottle printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V | Weight: | 1800 KG |
| Certification: | CE certificate | Warranty: | 1 Year |
| After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Motor, PLC |
| Application: | bottle printer | Printing color: | 1~8 color |
| Printing speed: | 4000pcs/H | Max printing size: | dia.100mm |
| Dryer: | UV Dryer/LED dryer | Type: | Digital Printer |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location: | United States, Spain |
| Showroom Location: | United States, Spain | Marketing Type: | Ordinary Product |
|
Parameter |
APM-S102 |
|
Round container |
|
|
Printing diameter |
20-100mm |
|
Printing length |
20-300mm |
|
Max.printing speed |
4000pcs/h |
|
Oval container |
|
|
Printing width |
25-120mm |
|
Printing length |
25-300mm |
|
Max.printing speed |
5000pcs/h |
|
Square container |
|
|
Printing length |
100-200mm |
|
Printing width |
40-100mm |
|
Max.printing speed |
4000pcs/h |
|
Machine dimension |
1908*1000*1500mm |
|
Power |
380V,3P,50/60Hz |
|
Air supply |
5-7bar |
Application
The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.
Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
General Description
Automatic 1-8 color screen printing line, each unit can be separated or connected;
Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
Auto flame treatment;
Perfect transmission system. It passes over the bottles fast and smooth;
Automatic 180 degree rotation for oval and square bottles;
Quick and easy change over from one product to another;
LED UV curing system with longer life time and energy saving,electric UV system optional;
Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
Automatic unloading.
Procedure
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
