Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

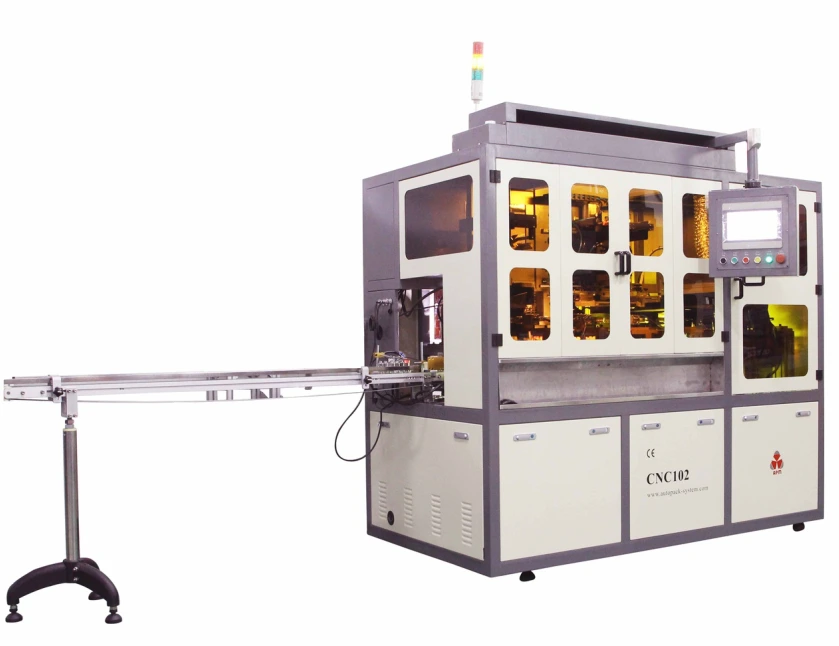

APM PRINT - CNC102FUV All servo driven glass bottle screen printer Auto Screen Printer
In the past months,Shenzhen Hejia Automatic Printing Machine Co., Ltd. has been devoted to serious design and innovative development of the new product. It is officially called CNC102FUV All servo driven glass bottle screen printer and releases to the market since today. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Screen Printers requiring very high quality. Guided by market forces,Shenzhen Hejia Automatic Printing Machine Co., Ltd. will use a comprehensive range of measures to enhance our strength. For example, we will invest heavily in the R&D project and keep developing new products so as to lead the market trend.
| Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Printing Shops |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | glass bottle printer |
| Automatic Grade: | Automatic | Color & Page: | single color |
| Voltage: | 380v, 50/60Hz | Dimensions(L*W*H): | 2200x1320x1800mm |
| Weight: | 800 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | glass bottle screen printing machine | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC | Application: | Round, Square, irregular Container Printing |
| Printing Speed: | 1800-2400 pcs/h | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | United States, Spain | Showroom Location: | United States, Spain |
| Marketing Type: | Ordinary Product |
| speed | 1800-2400pcs/H |
| power | 380V, 3P 50/60Hz |
| Air supply | 6-8Bar |
| Round Container | |
| Printing Dia. | 20-100mm |
| Printing Length | 30-180mm |
| Square/Irregular container | |
| Printing Width | 20-100mm |
| Printing Length | 30-180mm |
Application
All shapes of glass bottles, cups, mugs. It can print any shape of containers all around in 1 print.
General Description
1. Automatic loading system with multi axis servo robot.
2. Servo driven transfer system.
3. Auto flame treatment
4. Automatic printing system with all servo driven: printing head, mesh frame, rotation, container up/down all driven by servo motors.
5. Multi sides printing in one process.
6. Auto UV drying
7. Super quick and easy change over from one product to another.
8. All parameters automatic setting simply in touch screen. Product change is 15 minutes only per color.
9. Automatic unloading with servo robot.
10. Safety operation with CE.
11. Repeat print to be multi colors.
Options
Camera vision system, for cylindrical products without registration point.
