Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
APM PRINT | top screen printing machine cost factory
After years of solid and rapid development, APM PRINT has grown into one of the most professional and influential enterprises in China. screen printing machine cost We promise that we provide every customer with high-quality products including screen printing machine cost and comprehensive services. If you want to know more details, we are glad to tell you.Before delivery, APM PRINT has to undergo a wide range of tests. It is strictly tested in terms of the strength of its materials, statics&dynamics performance, resistance to vibrations&fatigue, etc.

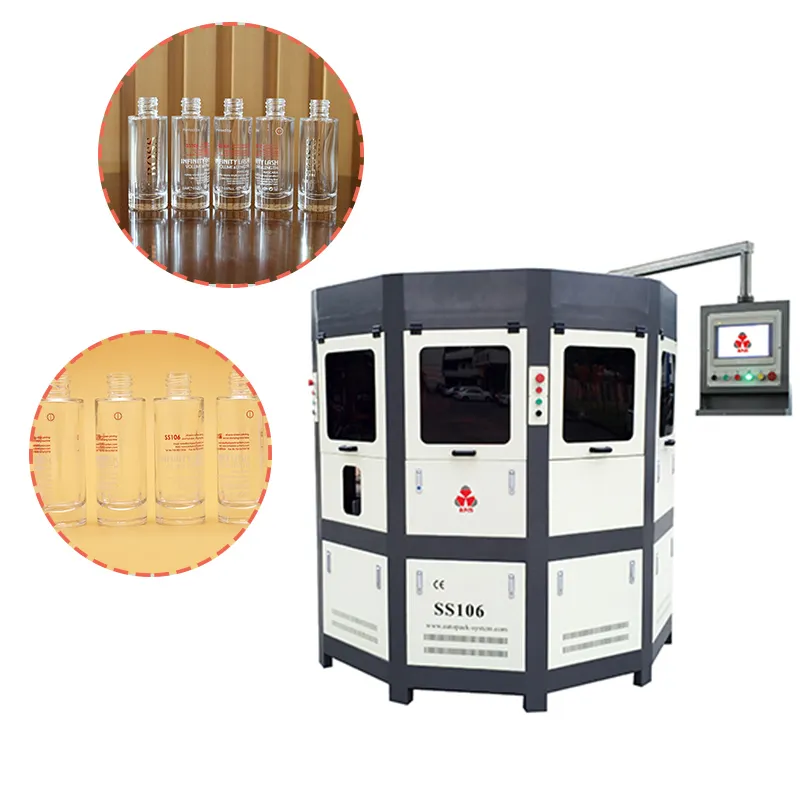

SS106 screen printers are designed for decorating plastic/glass bottles, wine caps, jars, cups, tubes
The bottle screen printing machine can be set up to print on multi-colored images, as well as to print text or logos.
Parameter/Item | SS106 |
power | 380V, 3P 50/60Hz |
Air consumption | 6-8bar |
Max Printing speed | 30~50pcs/min, it will be slower if with stamp |
Max. product Dia. | 100mm |
| Max. printing circumstance | 250mm |
| Max. Product height | 300mm |
| Max. printing height | 200mm |
SS106 automatic screen printing machine working process:
Auto loading→ CCD registration→Flame treatment→1st color screen print→ UV curing 1st color→ 2nd color screen print→ UV curing 2nd color……→Auto unloading
it can print multiple colors in one process.

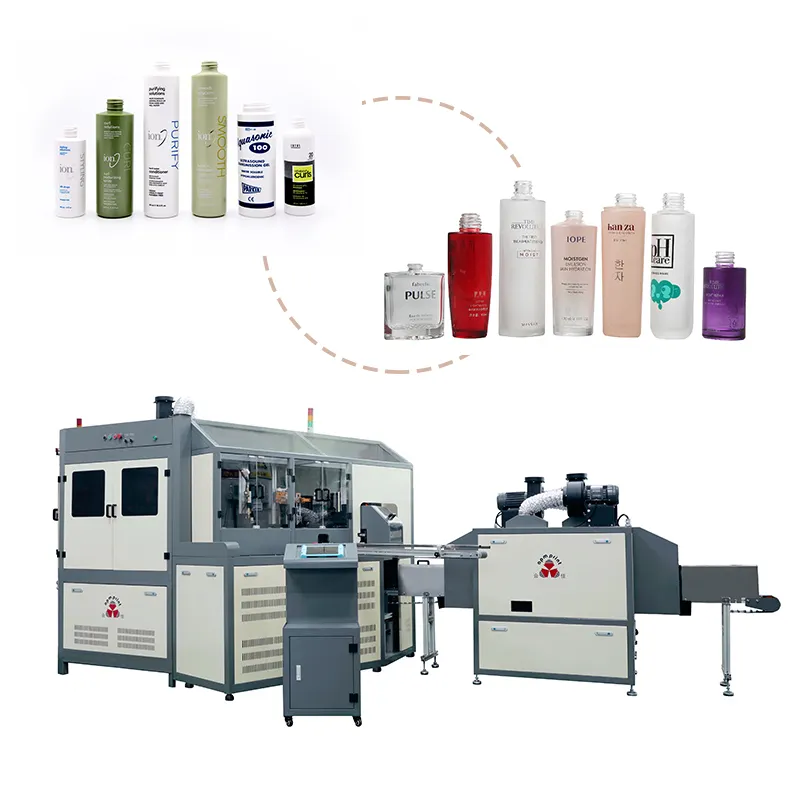

The machine SS106 is designed for multi colours decoration of plastic/glass bottles, wine caps, jars, tubes at high production speeds.
It is suitable for bottles printing with UV ink. And it is capable of printing cylindrical containers with or without registration point.
Reliability and speed make the machine ideal for off-line or in-line 24/7 production.

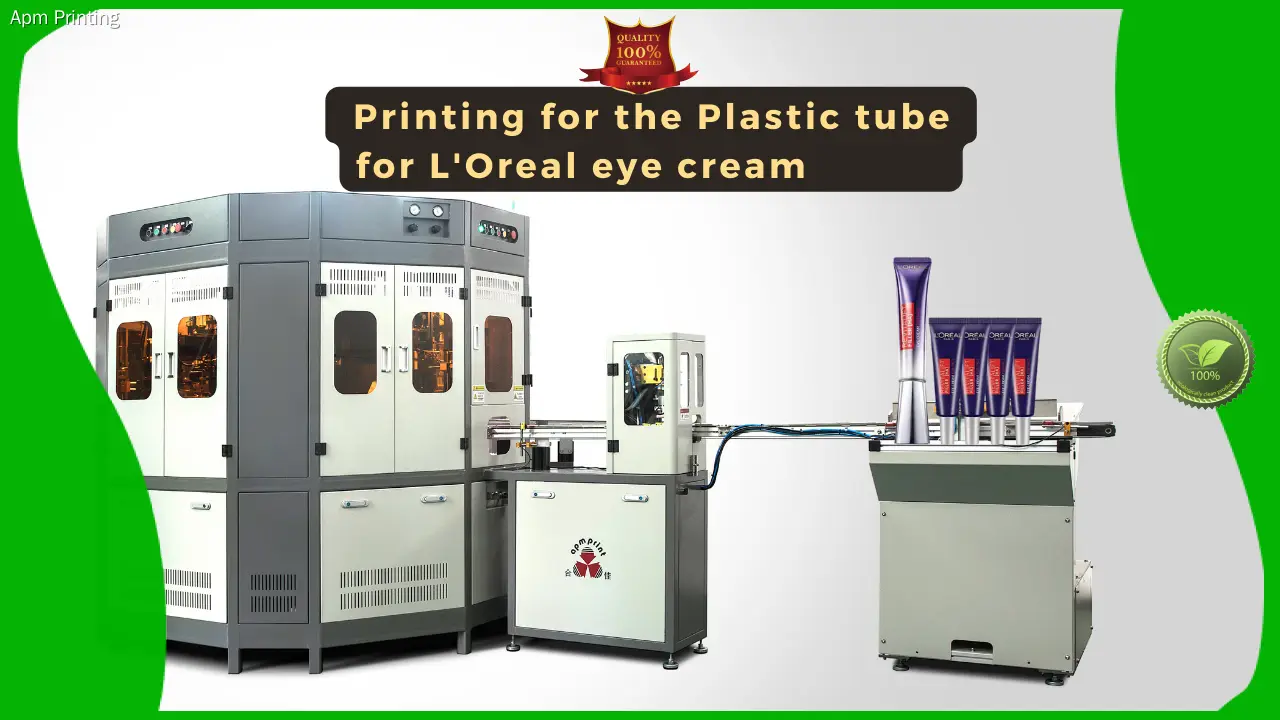

Tube
Plastic bottle
Tube, Plastic bottle
General Description:
1. Automatic roller loading belt (Special fully auto system optional)
2. Auto flame treatment
3. Auto anti-static dust cleaning system before printing optional
4. Auto registration to print products escape the molding line optional
5. Screen printing and hot stamping in 1 process
6. All servo driven screen printer with best accuracy:
*mesh frames driven by servo motors
*all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
7. Auto UV drying
8. No products no print function
9. High accuracy indexer
10. Auto unloading belt (standing unloading with robot optional)
11. Well built machine house with CE standard safety design
12. PLC control with touch screen display
Options:
1. Screen printing head can be replaced to hot stamping head, make multi-color screen printing and hot stamping in line

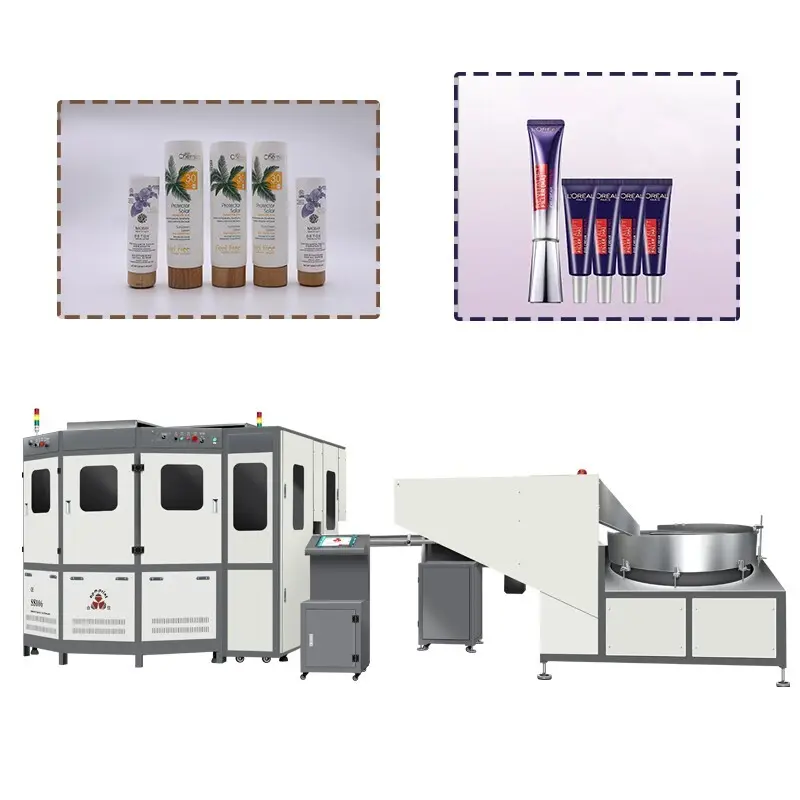

2. Fully automatic loading system with hopper and bowl feeder or elevator shuttle
3. Vacuum system in mandrels
4. Moveable control panel (Ipad, mobilecontrol)
5. Printing heads installed with servo to be CNC machine, can print different shapes of products.
6. CCD registration optional for products without registration point but need to do registration.
