Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.
APM PRINT | high-quality screen printing machine factory
Set up years ago, APM PRINT is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. screen printing machine We promise that we provide every customer with high-quality products including screen printing machine and comprehensive services. If you want to know more details, we are glad to tell you.APM PRINT ensures rigorous mechanics production through various procedures including casting, cutting, thermal treatment, surface polishing, and more. Trust their expertise in delivering high-quality mechanical components.

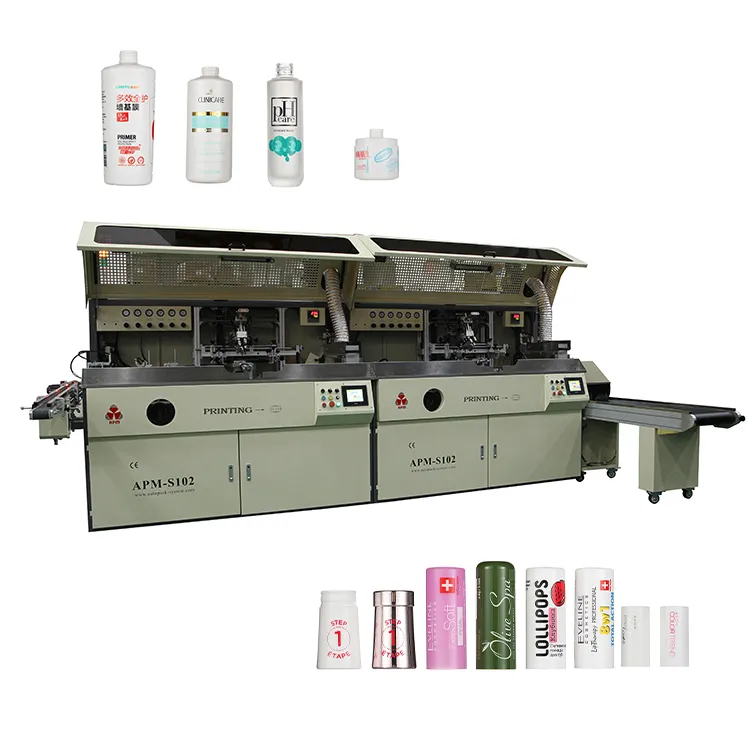

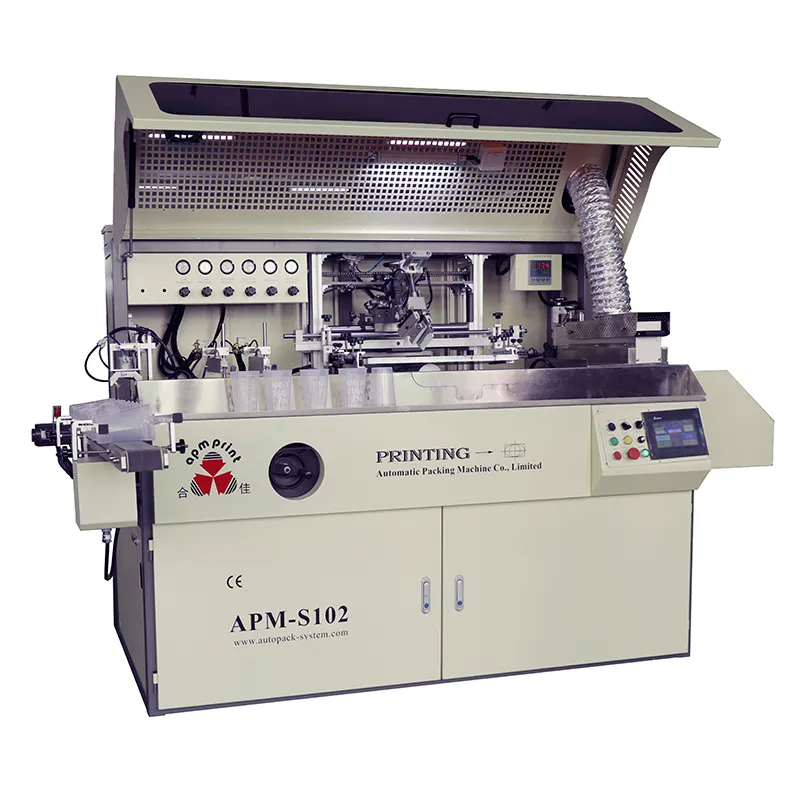

The APM-S102 automatic screen printing machine is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
Plate Type: | Screen Printer | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Advertising Company, bottle making company, packaging company |
| Condition: | New | Place of Origin: | Guangdong, China |
| Brand Name: | APM | Usage: | Tube Printer, bottle printer, cup printer |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Voltage: | 380V, 50/60HZ | Dimensions(L*W*H): | 2500x1420x1700mm |
| Weight: | 1000 KG | Certification: | CE Certification |
| Warranty: | 1 Year | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas |
| Key Selling Points: | Easy to Operate | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC, Engine | Application: | Printing Bottle |
| Printing color: | 1~8 color | Printing speed: | 4000pcs/H |
| Max printing size: | dia.100mm | Drying system: | UV /LED drying system |
Parameter/Item | APM-S102 |
Round container | |
Printing diameter | 20-100mm |
| Printing length | 20-300mm |
| Max.printing speed | 3000-4000pcs/h |
| Oval container | |
| Printing width | 25-120mm |
| Printing length | 25-300mm |
| Max.printing speed | 3000-5000pcs/h |
| Square container | |
| Printing length | 100-200mm |
| Printing width | 40-100mm |
| Max.printing speed | 3000-4000pcs/h |
| Machine dimension | 1908*1000*1500mm |
| Power | 380V,3P,50/60Hz |
| Air supply | 5-7bar |
S102 automatic screen printing machine working process:
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
General Description:
1. Automatic 1-8 color screen printing line, each unit can be separated or connected;
2. Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
3. Auto flame treatment;
4. Perfect transmission system. It passes over the bottles fast and smooth;
5. Automatic 180 degree rotation for oval and square bottles;
6. Quick and easy change over from one product to another;
7. LED UV curing system with longer life time and energy saving,electric UV system optional;
8. Reliable PLC control with touch screen display;
9. Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
10. Automatic unloading.
11. CE standard
