Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

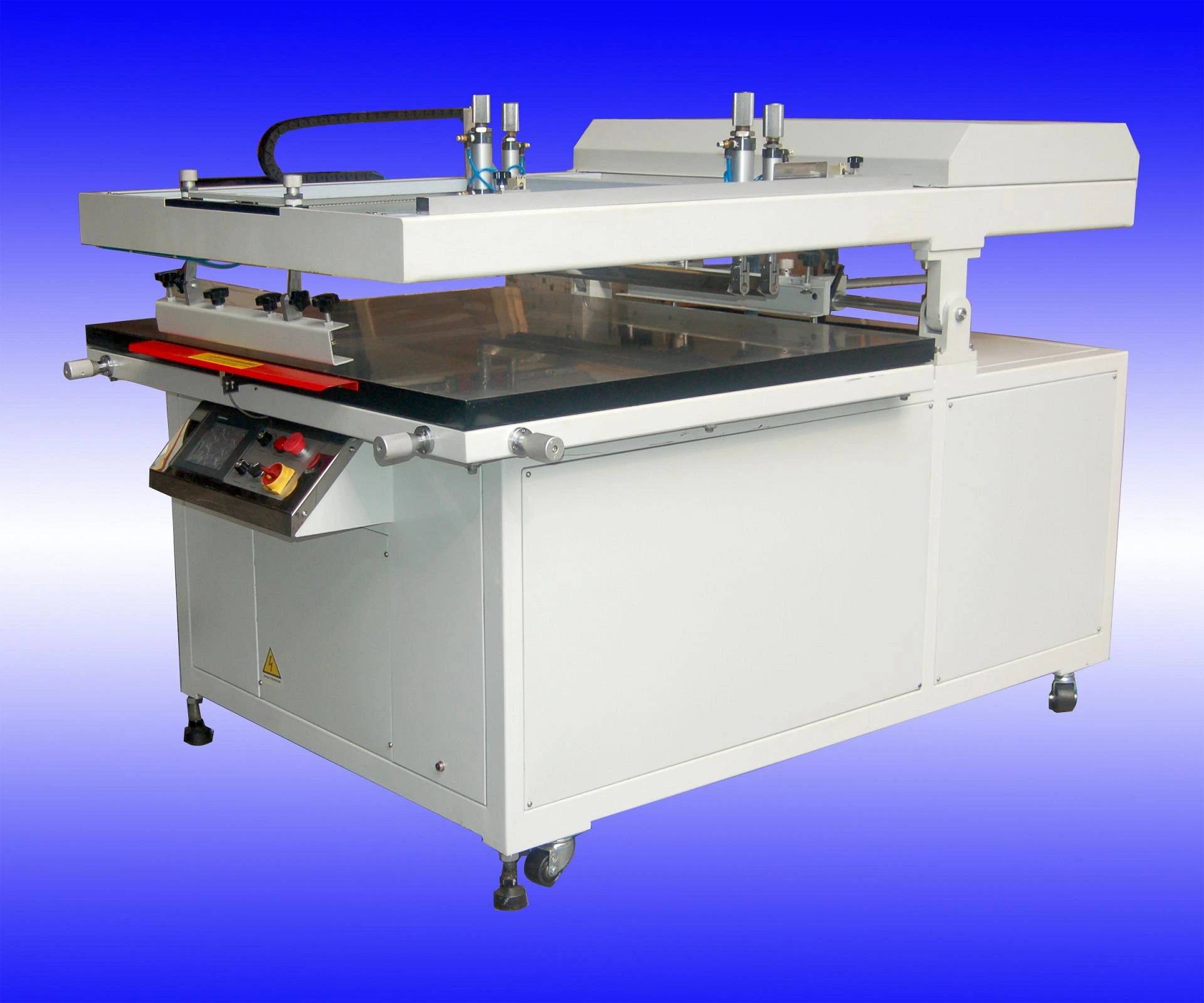

APM PRINT - SS90120 Slanting arms screen printer
Easy operation and well programmed panel. Printing head driven by motor with linear guides.
Description:
1. SMC/Festo pneumatics
2. XYR adjusting table
3. Printing head driven by motor with linear guides
4. Mesh peeled off system
5. Easy operation and well programmed panel
6. Well safety guarding with CE.
7. PLC control, touch screen display optional
Tech-data
Parameter \ Item | SS90120 |
Max. mesh frame size(mm) | 1200*1600 |
Max. printing area(width*length/arc)mm | 900*1200 |
Worktable size (mm) | 1000*1400 |
Max. substrate diameter/height(mm) | 30 |
Max. speed: pcs/hr | 800 |
Net. weight (kgs) | 600 |
Measurement(mm) | 1400x1900x1300 |
Power | 380V, 50/60HZ |
Samples:
