Apm Print as one of the oldest printing equipment suppliers with the ability to design and build fully automatic multi color printing machines.

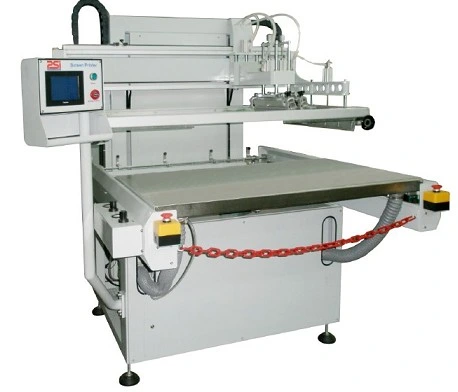

S6080S/S70100S/S90120S Flat screen printer with sliding table
Easy operation and well programmed panel. Automatic unloading with robot and belt transfer system.
Description:
1. SMC/Festo pneumatics
2. XYR adjusting table
3. Pneumatic printing head lifting system
4. Printing head driven by motor with linear guides
5. Printing head up/down driven by motor
6. Mesh peeled off system
7. Easy operation and well programmed panel
8. Well safety guarding with CE.
Option:
1． Automatic unloading with robot and belt transfer system
2． PLC control, touch screen display
Tech-data
Parameter \ Item | S6080S | S70100S | S90120S |
Max.mesh frame size(mm) | 900*1200 | 1000*1400 | 1200*1600 |
Max.printing area(width*length/arc)mm | 600*800 | 700*1000 | 900*1200 |
Worktable size (mm) | 700*1000 | 800*1200 | 1000*1400 |
Table sliding stroke (For S6080S) | 700mm | 800mm | 1000mm |
Max.substrate diameter/height(mm) | 150 | 150 | 150 |
Printing speed:pcs/hr | 800 | 700 | 500 |
Net.weight (kgs) | 450 | 550 | 800 |
Power | 110/220V 50/60HZ 40W | ||
Samples:
